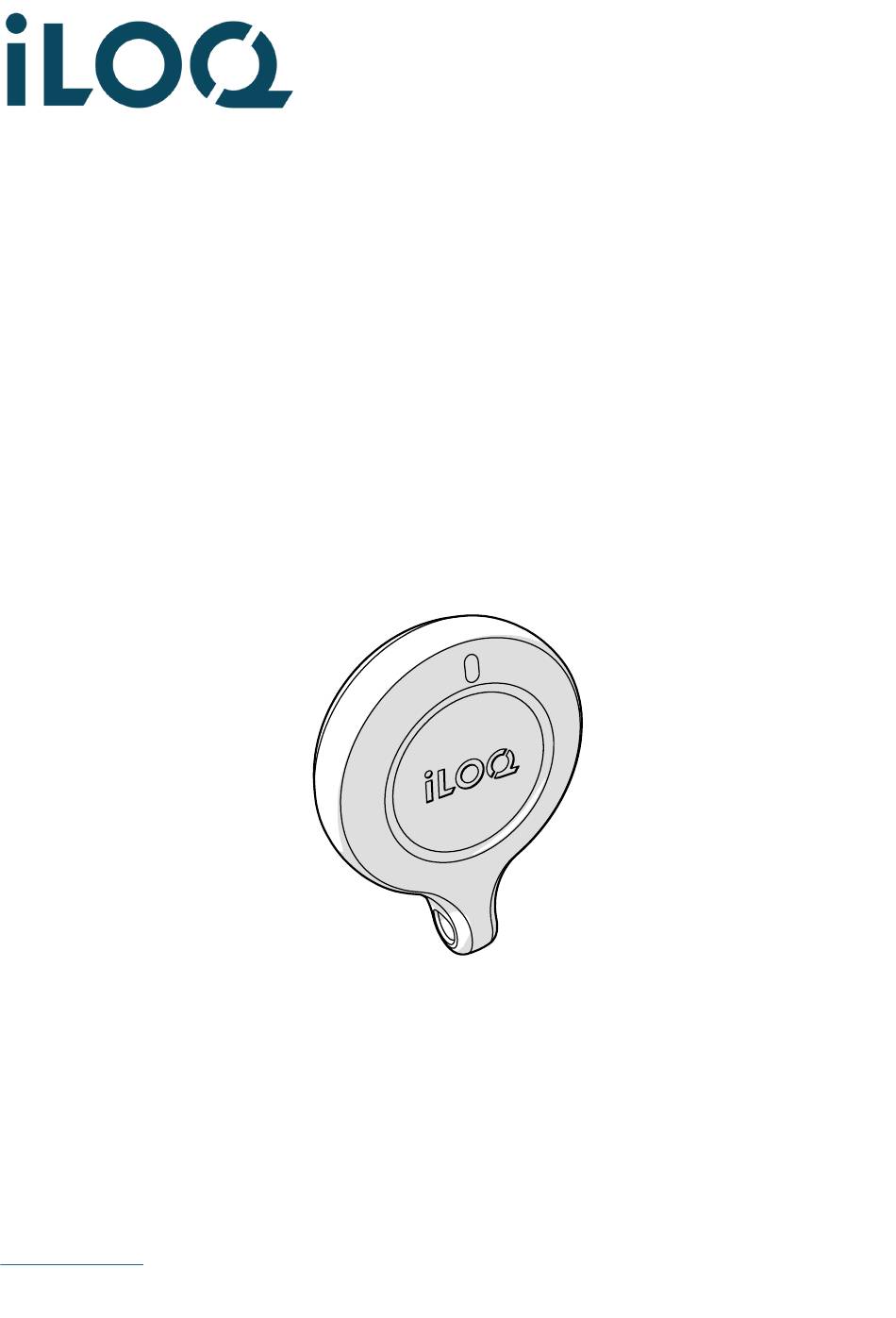

- Page 1 S50 P55S.1 Programming Key User Guide 09/2023 Rev 1.4 Document ID 239669 iLOQ Oy support.iloq.com...
-
Page 2: Table Of Contents
Products ........................4 Care and Maintenance ..................4 Before use ....................... 4 Operating instructions of the P55S.1 Programming Key ........5 Connecting the P55S.1 Programming Key to the A00.18 Desktop Programming Adapter ..............5 Programming with the A00.18 Desktop Programming Adapter connected to a PC .................. -
Page 3: Safety Information
Warnings Sign Description Warning! K55S / P55S.1 contains a non-replaceable rechargeable battery. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an explosion. Warning! Leaving a battery in an extremely high temperature environment can result in an explosion or the leakage of flammable liquid or gas. -
Page 4: Products
• Using the P55S.1 Programming Key for other purposes may damage it. • The P55S.1 Programming Key is to be kept secure so that only an authorized person can use it. • In case of losing the P55S.1 Programming Key, contact the administrator of the locking system. -
Page 5: Operating Instructions Of The P55S.1 Programming Key
The A00.18 Desktop Programming Adapter allows a PC and an A00.17 Programming Cable to be connected to the P55S.1 Programming Key at the same time. This way you can transfer programming tasks to the memory of the P55S.1 Programming Key and also use the A00.17 Programming Cable without having to swap cables. -
Page 6: Programming Without An A00.18 Desktop Programming Adapter
A00.18 Programming Adapter. Programming without an A00.18 Desktop Programming Adapter 1. Connect the P55S.1 Programming Key directly to the USB port of a PC with a standard USB Micro-B cable. Document ID - 239669... - Page 7 2. Execute the programming tasks from the iLOQ Manager to transfer them to the P55S.1 Programming Key. 3. Place the P55S.1 Programming Key on the product you intend to program while the PC is connected. For best performance, touch the reader antenna or K5S key bow with the bottom of the P55S.1 Programming Key as shown in the following illustration.
-
Page 8: Programming Offline (Without A Pc Connection)
Programming offline (without a PC connection) After transferring the tasks to the P55S.1 Programming Key, disconnect the P55S.1 Programming Key from the computer and program the intended locks and keys on-site. To program key operated locks, you need the A00.17 Adapter Cable. -
Page 9: Charging The P55S.1 Programming Key
Charging the P55S.1 Programming Key To charge the P55S.1 Programming Key, use the USB Micro-B connector. Battery charging specifications Unit Value • Voltage • 5 V • Current • 100 mA • Charging time • 3 hours • Capacity • 150 mAh... -
Page 10: Accessories
7. Accessories • The A00.20 Handheld Programming Adapter can be used to help hold a P55S.1 Programming Key on round readers during programming. • The AK50.1-AK50.9 Color Markers can be used to personalize P55S.1 Programming Keys. To replace the Color Marker, remove the old one with a suitable tool and replace it with a new one. -
Page 11: Disposal Of Decommissioned Products
Before discarding products, bear in mind that most iLOQ products are reusable. All programmable products can be reset to factory settings, after which they can be reused in another system or an entirely new system. -
Page 12: Compliance
SIMPLIFIED EU DECLARATION OF CONFORMITY: Hereby, iLOQ Oy declares that the radio equipment type P55S.1 Programming Keys are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.iloq.com/en/declaration-of-compliance/... - Page 13 Changes or modifications made to this equipment not expressly approved by iLOQ Oy may void the FCC authorization to operate this equipment. System Frequency Maximum SAR • • 13.56 MHz • 0.03 W/kg (SAR1g) UKCA Hereby, iLOQ Oy declares that the radio equipment type P55S.1 Programming Keys are in compliance with the UK relevant statutory requirements.
- Page 14 S50 P55S.1 Programming Key User Guide iLOQ support.iloq.com Elektroniikkatie 10 90590 Oulu Finland...
