Hook-Up Diagrams (Cont’d) - Altronix ACM4E Series Installation Manual

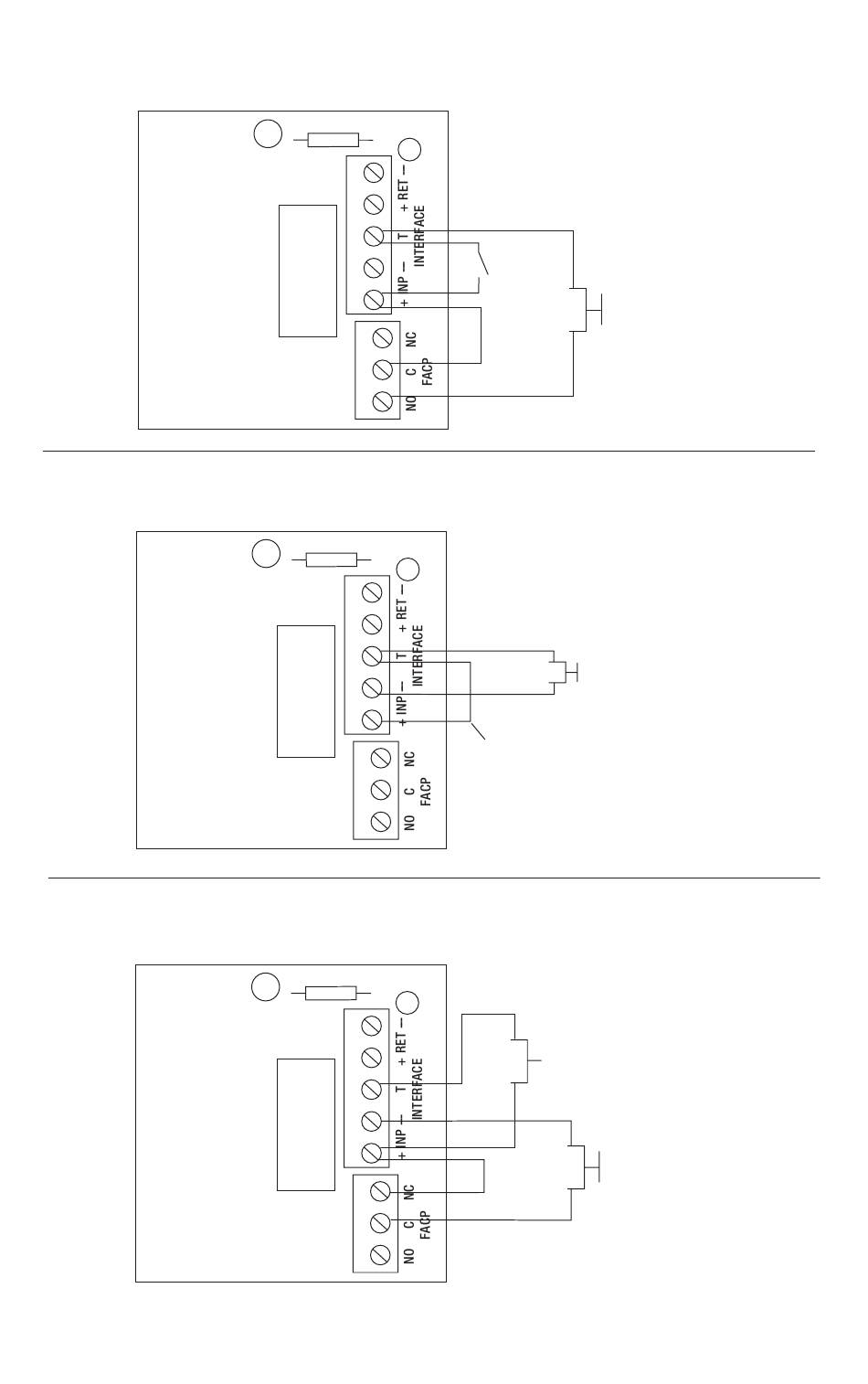

Fig. 5
Normally Open FACP Latching trigger input with reset: (This output has not been evaluated by UL)
Fig. 6
Normally Closed - Non-Latching FACP trigger input:
Fig. 7
Normally Closed - Latching FACP trigger input with reset (This output has not been evaluated by UL):
ACM4E/ACM4CBE Installation Guide
Hook-up Diagrams (cont'd):
J3
TRG
J3
TRG
J3
TRG
N.O.
TRIGGER
INPUT
N.C. RESET
SWITCH
JUMPER
N.C. DRY
TRIGGER
INPUT
JUMPER
N.C. RESET
SWITCH
N.C. TRIGGER
INPUT
JUMPER
- 7 -
