Humanscale efloat go Assembly Instructions Manual page 8

B - Your Own Worksurface

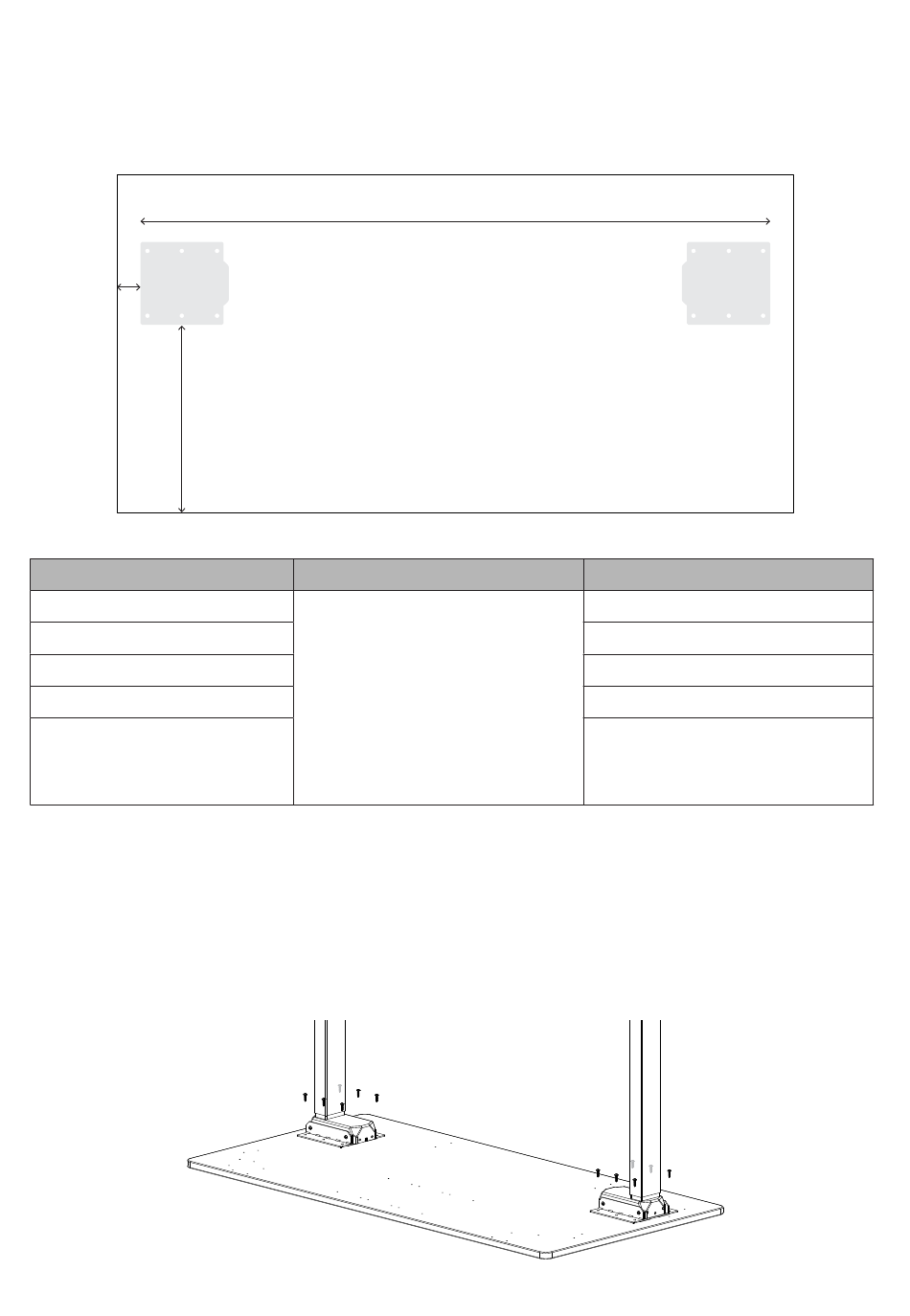

If using your own top, locate the table frame using the measurements listed below. To create pilot
holes, mark hole locations carefully. Using a 3mm drill bit, drill a hole 10mm deep. Be careful not to
drill through your worksurface. Do not use tops larger than the size noted in the Important Safety
Instructions section.
A
B
Worksurface Depth
23"
24"
29"
30"
Worksurfaces between
23"- 30"
The 24" feet should be used for worksurfaces 23"-24" deep and the 30" feet should be used for the
worksurfaces 30" deep and less.
4
For residential use, use (12) ST5 X 20 Wood Screws to secure the frame to a 0.75" or thicker
worksurface.
For commercial use, customer must purchase (12) No.10 x 1" wood screws when using a 1.1" or
thicker worksurface. If using a power drill ensure it is set to low torque.
8
MAX DISTANCE 54"
FRONT
A
2"
B
12" (305mm)
12.5" (315mm)
16" (405mm)
16.5" (420mm)
Position frame by ensuring the
foot is centered with depth of
worksurface.
