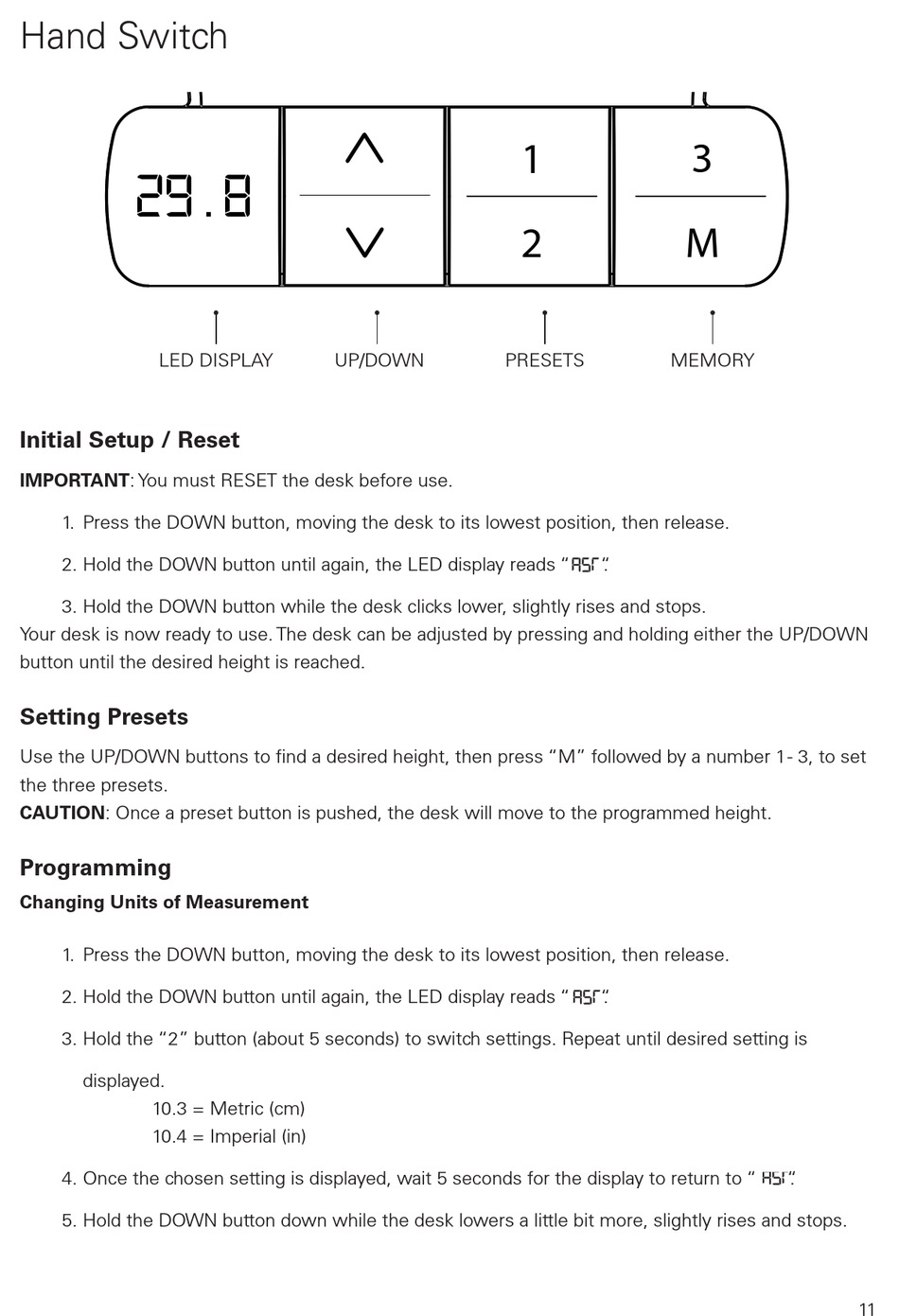

Hand Switch - Humanscale efloat go Assembly Instructions Manual

Hand Switch

29.8
LED DISPLAY
Initial Setup / Reset
IMPORTANT: You must RESET the desk before use.
1. Press the DOWN button, moving the desk to its lowest position, then release.
2. Hold the DOWN button until again, the LED display reads "
3. Hold the DOWN button while the desk clicks lower, slightly rises and stops.
Your desk is now ready to use. The desk can be adjusted by pressing and holding either the UP/DOWN
button until the desired height is reached.
Setting Presets
Use the UP/DOWN buttons to find a desired height, then press "M" followed by a number 1 - 3, to set
the three presets.
CAUTION: Once a preset button is pushed, the desk will move to the programmed height.
Programming
Changing Units of Measurement
1. Press the DOWN button, moving the desk to its lowest position, then release.
2. Hold the DOWN button until again, the LED display reads "
3. Hold the "2" button (about 5 seconds) to switch settings. Repeat until desired setting is
displayed.
10.3 = Metric (cm)
10.4 = Imperial (in)
4. Once the chosen setting is displayed, wait 5 seconds for the display to return to "
5. Hold the DOWN button down while the desk lowers a little bit more, slightly rises and stops.
UP/DOWN
1
2
PRESETS MEMORY
" .
" .
3
M
" .
11
