ACP 100 • Setup Guide (Continued)
+V +S -S G +S -S G
Ridged
ACP 100
Smooth
Rear Panel

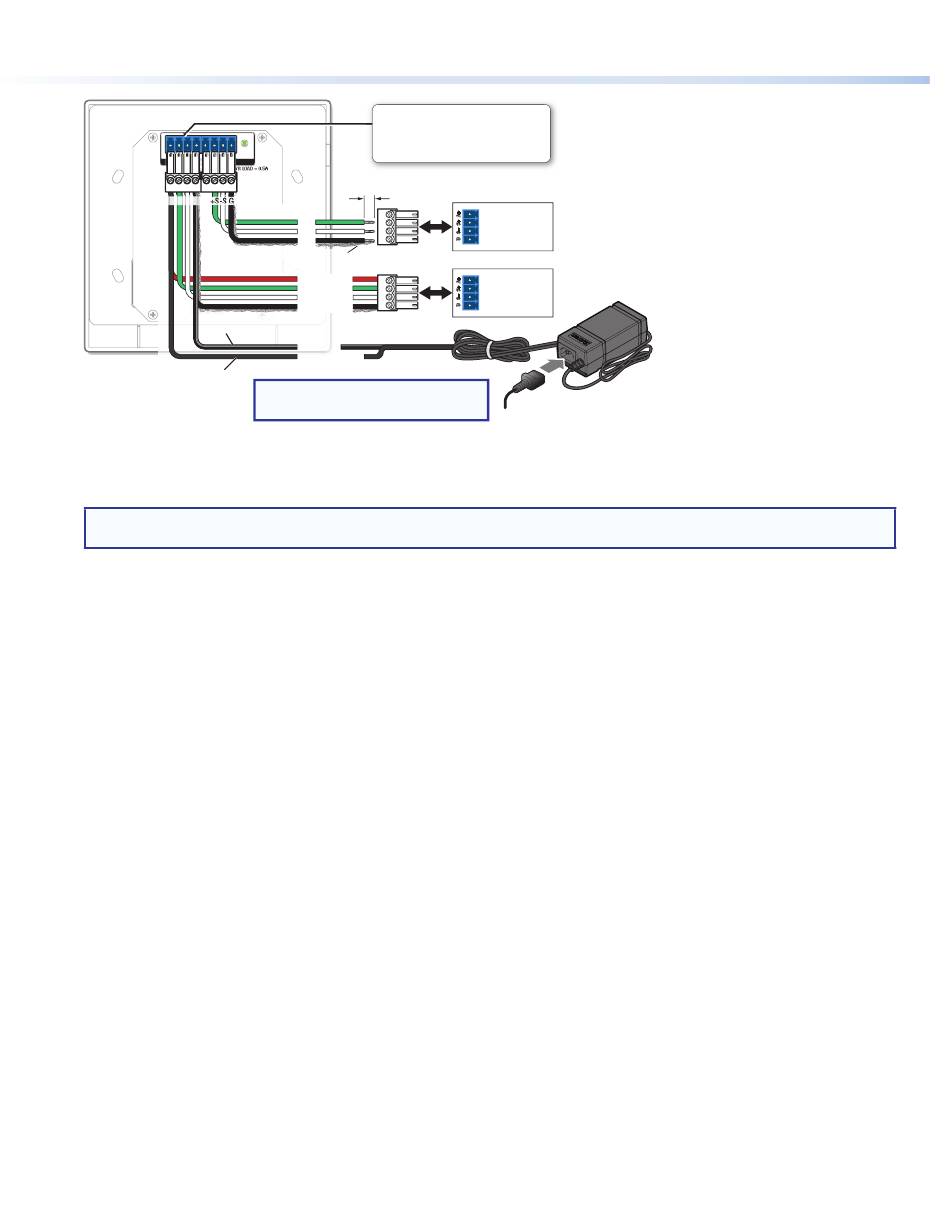

Figure 6. Cabling ACP Panels with an Extron 12 VDC, 1 A Power Supply

Step 6: Configure the System

NOTE:
For complete information on creating configuration files and operating DSP Configurator, see the DMP 128 Plus User
Guide and the DSP Configurator Help file.
Create a new DMP 128 Plus configuration file in DSP Configurator and create all groups, presets, and macros that will be
1.
controlled by the ACP device.
Open the Configure ACPs dialog box in DSP Configurator and configure the buttons on the ACP devices connected to
2.
the DMP 128 Plus.
Connect to the DMP 128 Plus in Live mode and push the configuration file to the device.
3.

Step 7: Test and Troubleshoot

Verify that the DIP switches on the ACP devices are set to the desired address on each unit and that there are no bus ID
1.
address conflicts in the system. As mentioned in the rear panel features diagram in step 4, the ACP LED lights steadily
when power and communication are present and there are no bus ID address conflicts.
Verify cables to and from the ACP devices are wired the same at each end.
2.
Test the system:
3.
Press the buttons on the ACP devices and ensure the buttons light as desired and that the appropriate control
a.
commands or functions are triggered. Commands can be verified in DSP Configurator or DataViewer, if responses are
configured.
Ensure that the audio output responds correctly to the volume knob. Also ensure that the volume LEDs light correctly
b.
as you increase or decrease audio gain.
Make adjustments to wiring, bus ID addresses, or system configuration as needed. Remember that the rear panel ports and
4.
DIP switches will not be accessible after the ACP is mounted. If needed, push a revised configuration to the ACP device via
the host DMP 128 Plus.
If you have questions during installation and setup, call the Extron S3 Sales and Technical Support Hotline or the Extron S3
Control Systems Support Hotline (1.800.633.9877).
