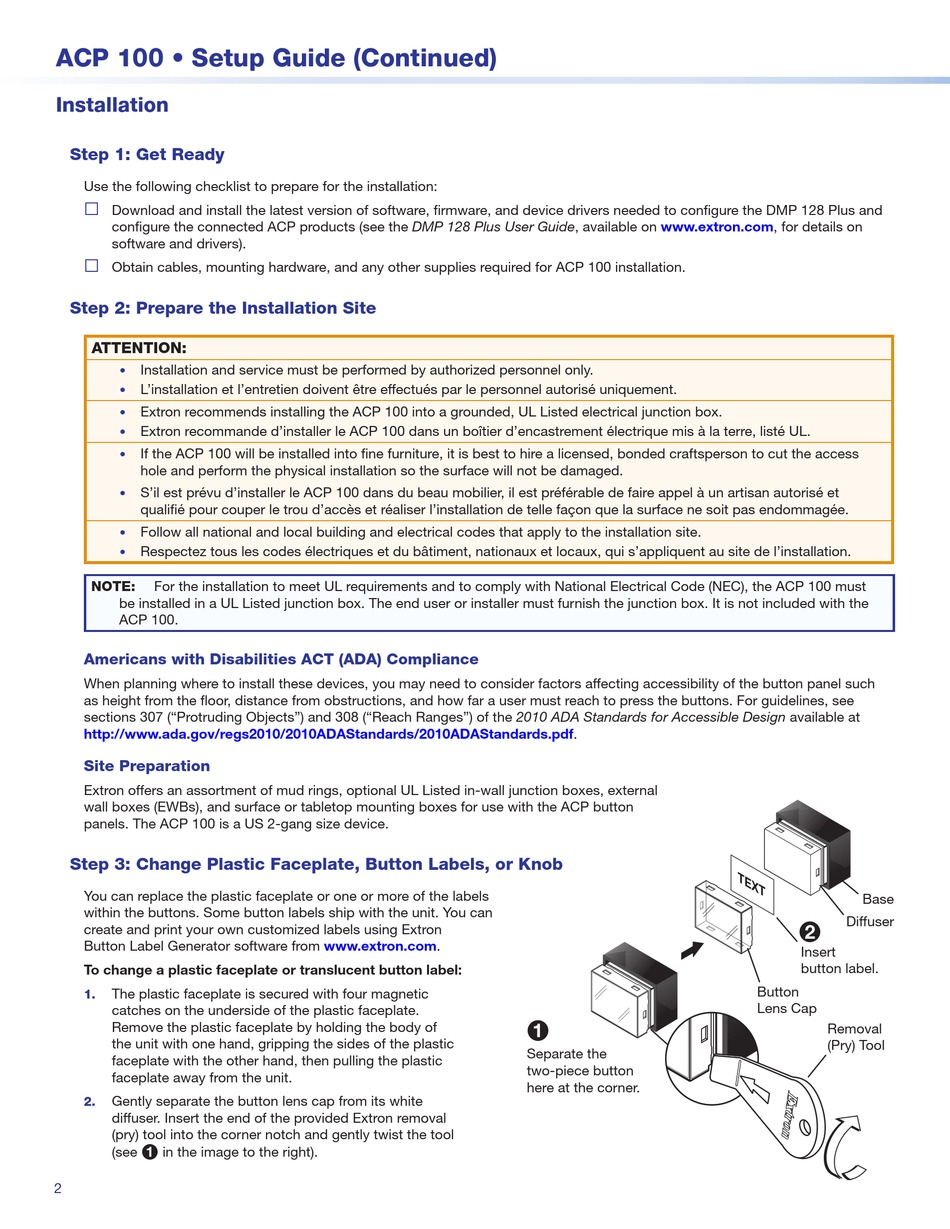

ACP 100 • Setup Guide (Continued)
Installation
Step 1: Get Ready
Use the following checklist to prepare for the installation:
…
Download and install the latest version of software, firmware, and device drivers needed to configure the DMP 128 Plus and
configure the connected ACP products (see the DMP 128 Plus User Guide, available on www.extron.com, for details on
software and drivers).
…
Obtain cables, mounting hardware, and any other supplies required for ACP 100 installation.

Step 2: Prepare the Installation Site

ATTENTION:
Installation and service must be performed by authorized personnel only.
•
L'installation et l'entretien doivent être effectués par le personnel autorisé uniquement.
•
Extron recommends installing the ACP 100 into a grounded, UL Listed electrical junction box.
•
Extron recommande d'installer le ACP 100 dans un boîtier d'encastrement électrique mis à la terre, listé UL.
•
If the ACP 100 will be installed into fine furniture, it is best to hire a licensed, bonded craftsperson to cut the access
•
hole and perform the physical installation so the surface will not be damaged.
S'il est prévu d'installer le ACP 100 dans du beau mobilier, il est préférable de faire appel à un artisan autorisé et
•
qualifié pour couper le trou d'accès et réaliser l'installation de telle façon que la surface ne soit pas endommagée.
Follow all national and local building and electrical codes that apply to the installation site.
•
Respectez tous les codes électriques et du bâtiment, nationaux et locaux, qui s'appliquent au site de l'installation.
•
NOTE: For the installation to meet UL requirements and to comply with National Electrical Code (NEC), the ACP 100 must
be installed in a UL Listed junction box. The end user or installer must furnish the junction box. It is not included with the
ACP 100.
Americans with Disabilities ACT (ADA) Compliance
When planning where to install these devices, you may need to consider factors affecting accessibility of the button panel such
as height from the floor, distance from obstructions, and how far a user must reach to press the buttons. For guidelines, see
sections 307 ("Protruding Objects") and 308 ("Reach Ranges") of the 2010 ADA Standards for Accessible Design available at
http://www.ada.gov/regs2010/2010ADAStandards/2010ADAStandards.pdf.
Site Preparation
Extron offers an assortment of mud rings, optional UL Listed in-wall junction boxes, external
wall boxes (EWBs), and surface or tabletop mounting boxes for use with the ACP button
panels. The ACP 100 is a US 2-gang size device.
Step 3: Change Plastic Faceplate, Button Labels, or Knob
You can replace the plastic faceplate or one or more of the labels
within the buttons. Some button labels ship with the unit. You can
create and print your own customized labels using Extron
Button Label Generator software from www.extron.com.
To change a plastic faceplate or translucent button label:
The plastic faceplate is secured with four magnetic
1.
catches on the underside of the plastic faceplate.
Remove the plastic faceplate by holding the body of
the unit with one hand, gripping the sides of the plastic
faceplate with the other hand, then pulling the plastic
faceplate away from the unit.
Gently separate the button lens cap from its white
2.
diffuser. Insert the end of the provided Extron removal
(pry) tool into the corner notch and gently twist the tool
(see in the image to the right).
1
2
1
Separate the
two-piece button
here at the corner.
T E
X T
Base
Diffuser
2
Insert
button label.
Button
Lens Cap
Removal
(Pry) Tool
