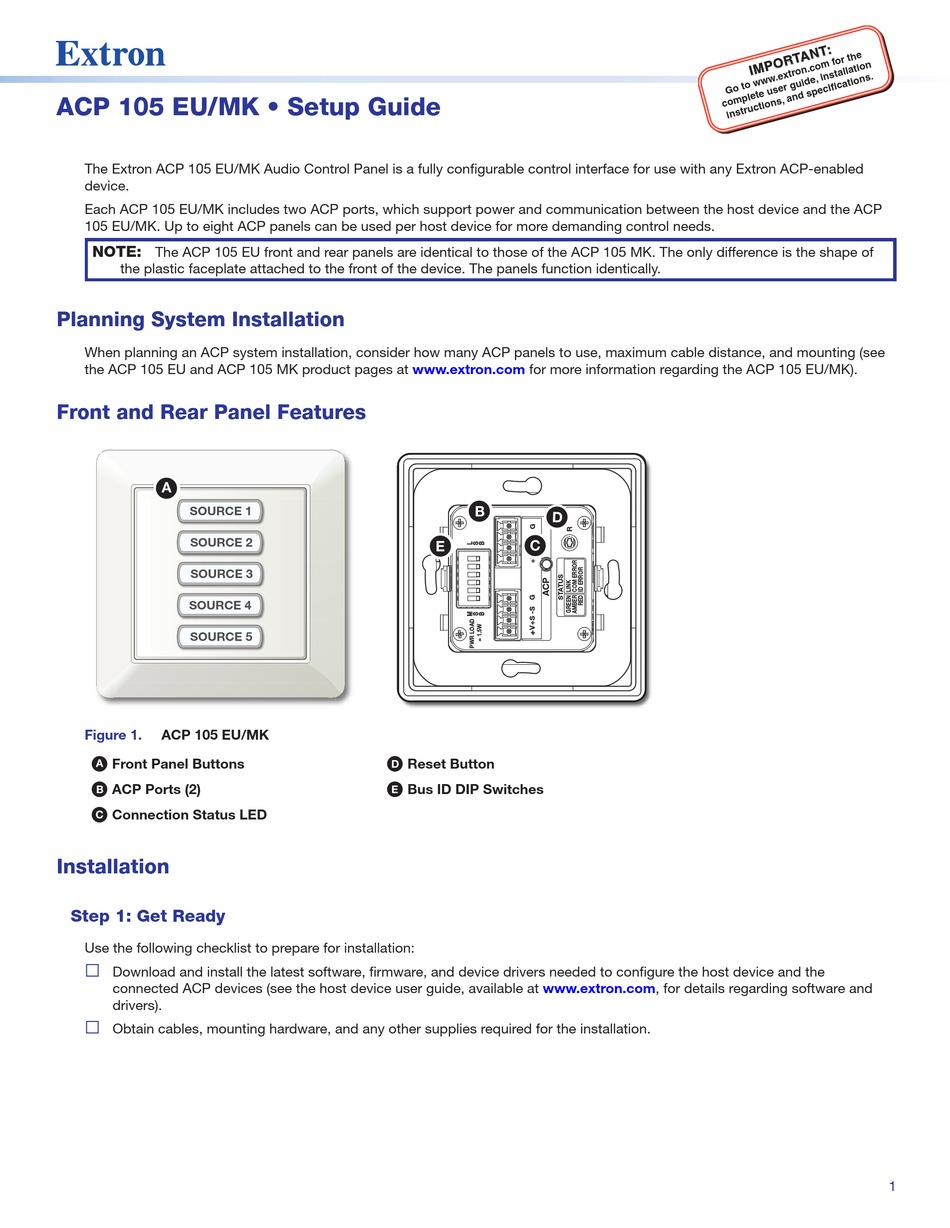

ACP 105 EU/MK • Setup Guide

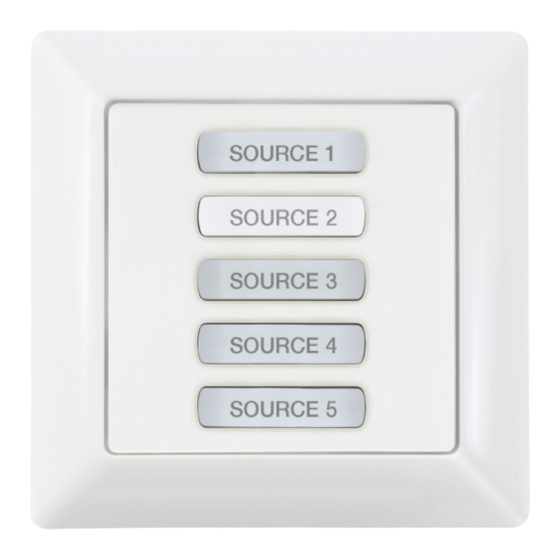

The Extron ACP 105 EU/MK Audio Control Panel is a fully configurable control interface for use with any Extron ACP-enabled
device.
Each ACP 105 EU/MK includes two ACP ports, which support power and communication between the host device and the ACP
105 EU/MK. Up to eight ACP panels can be used per host device for more demanding control needs.
NOTE:
The ACP 105 EU front and rear panels are identical to those of the ACP 105 MK. The only difference is the shape of
the plastic faceplate attached to the front of the device. The panels function identically.
Planning System Installation
When planning an ACP system installation, consider how many ACP panels to use, maximum cable distance, and mounting (see
the ACP 105 EU and ACP 105 MK product pages at
Front and Rear Panel Features
A A
SOURCE 1
SOURCE 2
SOURCE 3
SOURCE 4
SOURCE 5
Figure 1.
ACP 105 EU/MK
Front Panel Buttons
A
ACP Ports (2)
B
Connection Status LED
C
Installation
Step 1: Get Ready
Use the following checklist to prepare for installation:
…
Download and install the latest software, firmware, and device drivers needed to configure the host device and the
connected ACP devices (see the host device user guide, available at www.extron.com, for details regarding software and
drivers).
…
Obtain cables, mounting hardware, and any other supplies required for the installation.
www.extron.com
for more information regarding the ACP 105 EU/MK).
B B
E E
C C
Reset Button
D
Bus ID DIP Switches
E
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACP 105 EU/MK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics ACP 105 EU/MK

Summary of Contents for Extron electronics ACP 105 EU/MK

  • Page 1 ACP 105 EU/MK • Setup Guide The Extron ACP 105 EU/MK Audio Control Panel is a fully configurable control interface for use with any Extron ACP-enabled device. Each ACP 105 EU/MK includes two ACP ports, which support power and communication between the host device and the ACP 105 EU/MK.

  • Page 2: Step 2: Prepare The Installation Site

    Extron recommande d’installer le ACP 105 EU/MK dans un boîtier d’encastrement électrique mis à la terre, listé UL. • If the ACP 105 EU/MK will be installed into fine furniture, it is best to hire a licensed, bonded craftsperson to cut the access hole and perform the physical installation so the surface will not be damaged.
  • Page 3 Step 4: Set Bus ID Address Set the bus identification (bus ID) DIP switches for the ACP 105 EU/MK and any other ACP panels being connected to the system. Each ACP device must have a unique bus ID. If multiple panels have the same bus ID, address conflicts may cause one or more of the panels to not be recognized in DSP Configurator or by the host device.
  • Page 4 In most cases, ACP devices are powered by the host 1 2 3 4 5 6 device. Power is carried on the V+ pin of the ACP 105 EU/MK and other ACP BUS ID 000111 devices.
  • Page 5 ATTENTION: • Always use a power supply supplied or specified by Extron. Use of an unauthorized power supply voids all regulatory compliance certification and may cause damage to the supply and the unit. • Utilisez toujours une source d’alimentation fournie par Extron. L’utilisation d’une source d’alimentation non autorisée annule toute conformité...

  • Page 6: Step 6: Configure The System

    ACP 105 EU/MK • Setup Guide (Continued) ACP 105 EU ACP 105 EU Rear Panel Rear Panel 3/16" (5 mm) Max. Ground ACP port - Signal on a DMP 128 + Signal Plus Power Input, External Power Supply (optional) Tie drain wires to ground.
  • Page 7 If the unit is not installed in a mud ring, the plastic spacer must be installed. The spacer positions the unit to allow the plastic faceplate to attach properly and securely. Ensure the cables are connected to the ACP 105 EU/MK rear panel. Mounting ACP 105 EU or ACP 105 MK Units to an Electrical Wall Box NOTES: •...
  • Page 8 Do not use the spacer instead of the metal mounting bracket. The spacer has a larger opening and will not hold the ACP 105 EU/MK securely in the wall frame. To mount the ACP 105 EU/MK to a raceway using the spacer: Mount a junction box in the raceway (see...
