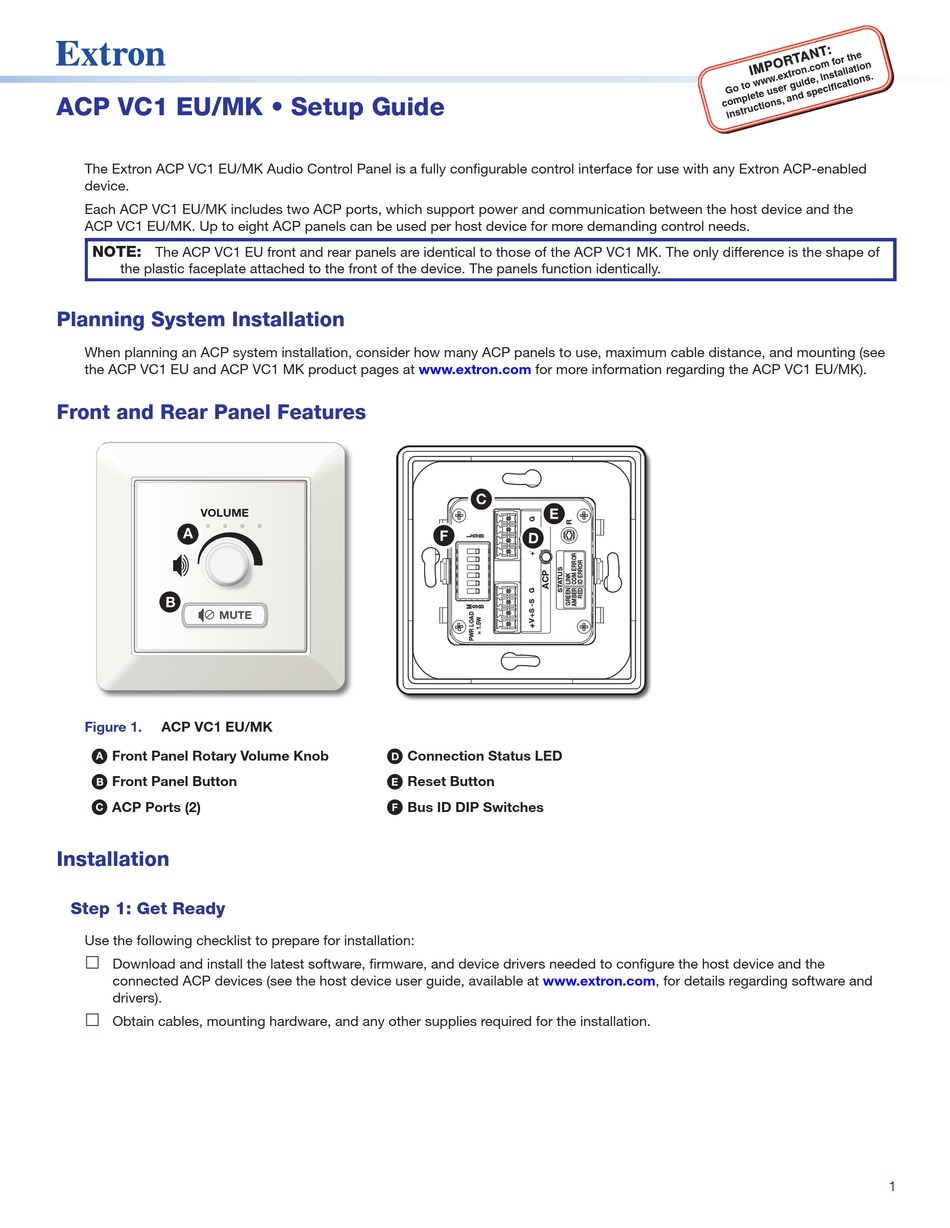

ACP VC1 EU/MK • Setup Guide
The Extron ACP VC1 EU/MK Audio Control Panel is a fully configurable control interface for use with any Extron ACP-enabled
device.
Each ACP VC1 EU/MK includes two ACP ports, which support power and communication between the host device and the
ACP VC1 EU/MK. Up to eight ACP panels can be used per host device for more demanding control needs.
NOTE:
The ACP VC1 EU front and rear panels are identical to those of the ACP VC1 MK. The only difference is the shape of
the plastic faceplate attached to the front of the device. The panels function identically.

Planning System Installation

When planning an ACP system installation, consider how many ACP panels to use, maximum cable distance, and mounting (see
the ACP VC1 EU and ACP VC1 MK product pages at

Front and Rear Panel Features

VOLUME VOLUME
A A
B B
MUTE MUTE

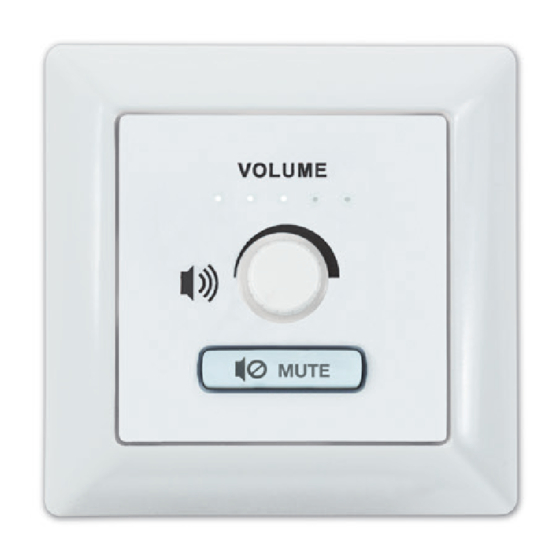

Figure 1. ACP VC1 EU/MK
Front Panel Rotary Volume Knob
A
Front Panel Button
B
Acp Ports (2)
C

Installation

Step 1: Get Ready

Use the following checklist to prepare for installation:
…
Download and install the latest software, firmware, and device drivers needed to configure the host device and the
connected ACP devices (see the host device user guide, available at www.extron.com, for details regarding software and
drivers).
…
Obtain cables, mounting hardware, and any other supplies required for the installation.
www.extron.com for more information regarding the ACP VC1 EU/MK).
C C
E E
F F
Connection Status LED
D
Reset Button
E
Bus ID DIP Switches
F
