Appendix D Cable installation and power separation guidelines

Cable grounding

For CAT-6A cables, the shield termination method is to use the ground lug and B-

bond clip that are available in the 12A1 Grounding Kit.

D-10

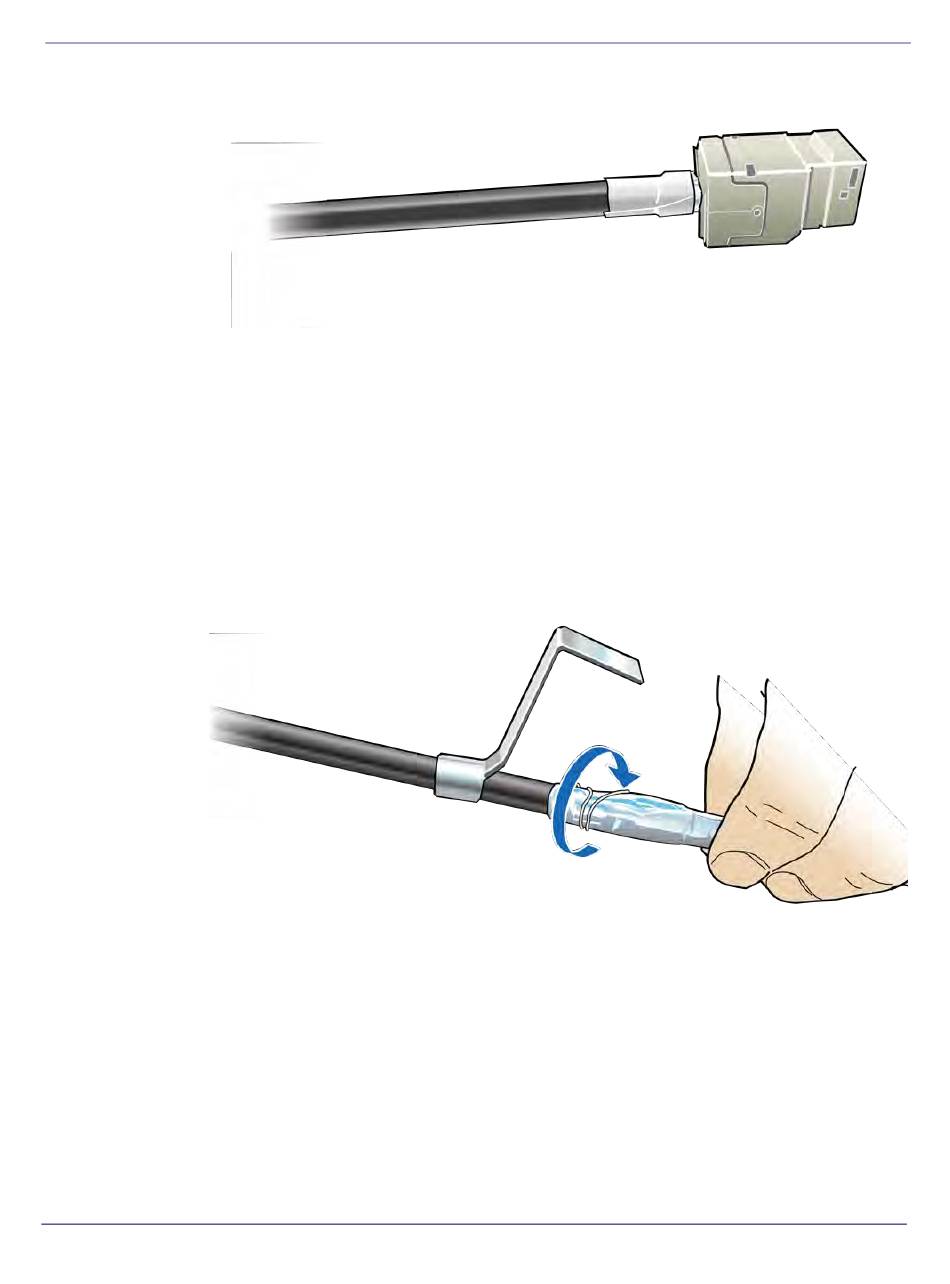

Fold the foil back over the jacket end and wrap the drain wire around the end and

push the ground lug over the wrap.

M0304AG

5.5.01 April 2021
