CommScope WCS-2 Installation Manual
  1. Manuals
  2. Brands
  3. CommScope Manuals
  4. Network Hardware
  5. WCS-2
  6. Installation manual

CommScope WCS-2 Installation Manual

Subracks and power supply unit for era
Hide thumbs
Table of Contents

Advertisement

Quick Links

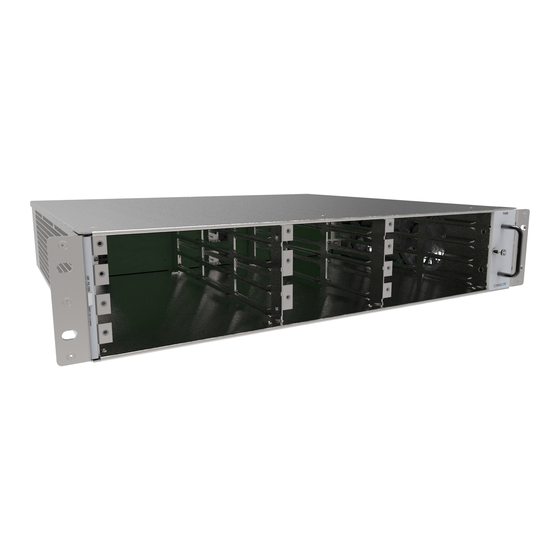

CommScope ERA®
WCS and e-POI Subracks and Power Supply Unit
Installation Guide • M0201ABK_uc • June 2021
