TC-1586-IP
Rev. A, August 2024
http://www.commscope.com
1
About this manual
This installation instruction document describes the installation of the SRC10. The document starts with general
product information, an overview of the tools required to perform the installation. Also warnings and cautions are
indicated, which should be observed before starting the product installation. Following installation steps are covered in
this document: closure preparation, drop cable installation, routing and splicing, closing the closure and mounting the
closure. Images in this manual are for reference only and are subject to change.
2

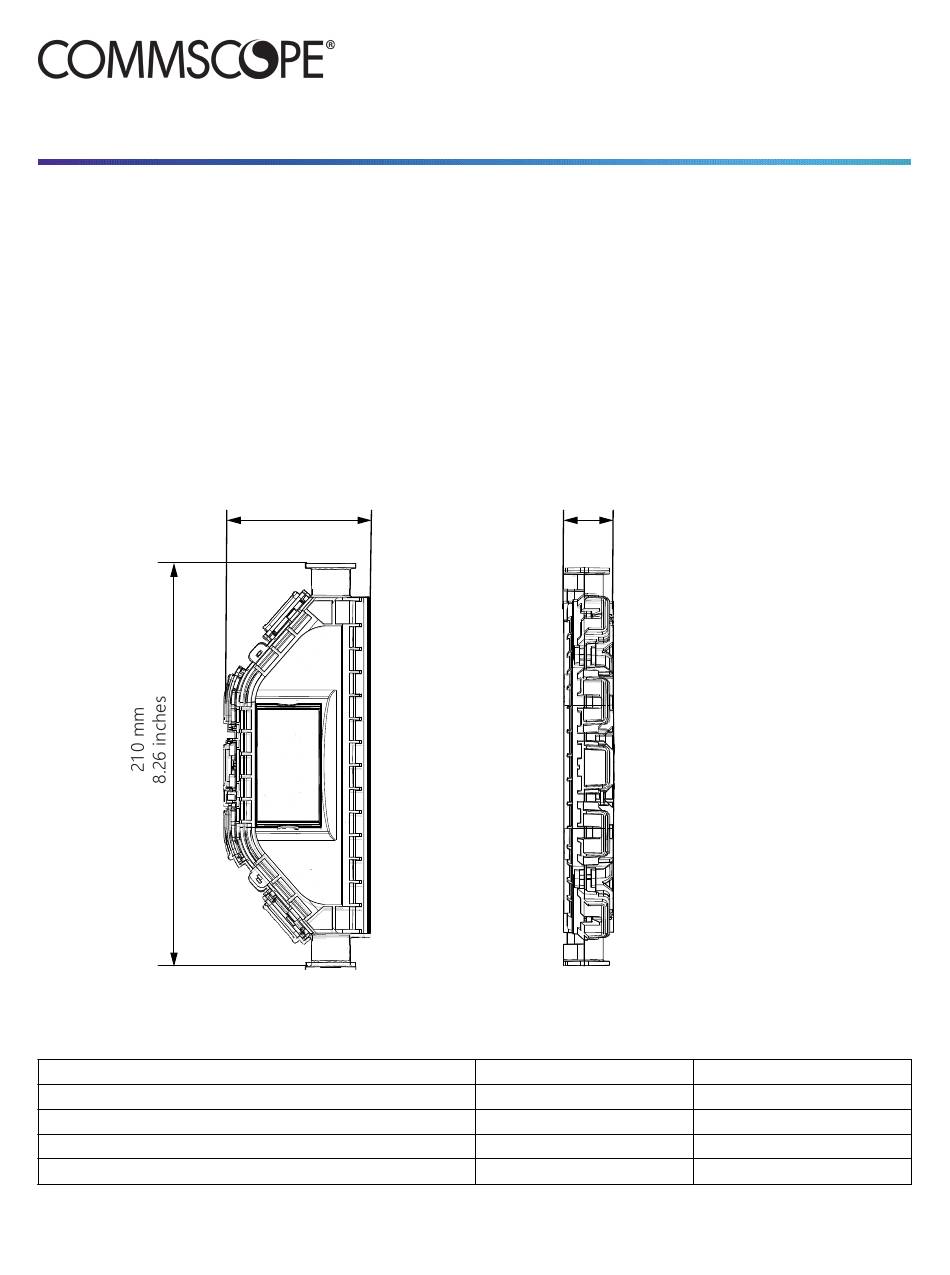

Dimensions
3
Cable diameter range
Drop cable
Round cable (Metal clip)
Round cable (Cable ties and silicone tape)
Flat cable (Metal clip)
Flat cable ROC
(Metal clip)
™

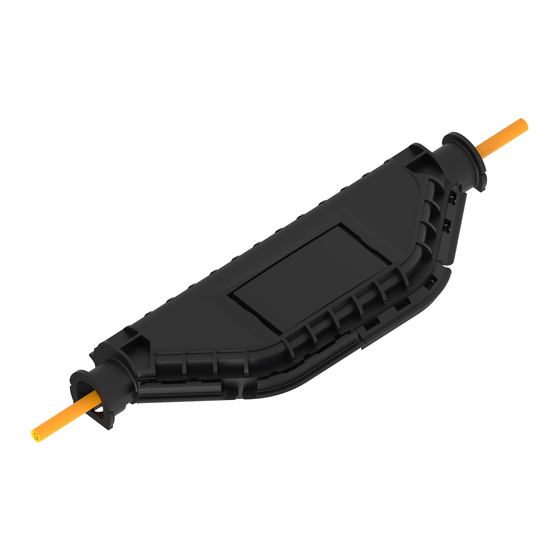

NOVUX™ Fiber Optic System
SRC 10
76 mm
2.99 inches
© 2024 CommScope, Inc. All Rights Reserved
Installation Instructions
31 mm
1 .22 inches
mm
4 - 6,2
2 - 8
8 x 4,5
5,4 x 3
page 1 / 10
inches
0.16 - 0.24
0.08 - 0.31
0.32 x 0.18
0.21 x 0.12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CommScope NOVUX SRC 10
Summary of Contents for CommScope NOVUX SRC 10
-
Page 1: About This Manual
Round cable (Cable ties and silicone tape) 2 - 8 0.08 - 0.31 Flat cable (Metal clip) 8 x 4,5 0.32 x 0.18 5,4 x 3 0.21 x 0.12 Flat cable ROC (Metal clip) ™ page 1 / 10 © 2024 CommScope, Inc. All Rights Reserved... -
Page 2: Table Of Contents
12.1 Wall- and pole mounting with screws..........9 7.2 Cable retention....................4 Close the closure................9 Cable retention: Metal clip............... 5 Disclaimer..................10 8.1 Kit contents......................5 Contact information..............10 8.2 Install round cable...................5 page 2 / 10 © 2024 CommScope, Inc. All Rights Reserved... -
Page 3: Tools
Always observe the recommended bend radius limit when installing fiber optic cables, subunits and patch cords. Access the organiser Remove the closure from the packaging. Remove the organizer from the closure. page 3 / 10 © 2024 CommScope, Inc. All Rights Reserved... -
Page 4: Prepare Cable
According to best practice in the field the correct cable retention needs to be selected. Please reach out to the TAC/FAE local representative in case extra information is required. page 4 / 10 © 2024 CommScope, Inc. All Rights Reserved... -
Page 5: Cable Retention: Metal Clip
Mount the clip in the cable-carrier assembly. The two slots of the metal clip should be positioned in the two tabs of the carrier, then press the clip towards the cable. page 5 / 10 © 2024 CommScope, Inc. All Rights Reserved... -
Page 6: Cable Retention: Cable Ties
First apply a full turn around the cable, then continue to cover up to the second mark. Make one turn at the end point and come back with the remaining tape. page 6 / 10 © 2024 CommScope, Inc. All Rights Reserved... -
Page 7: Install The Cable
Tighten the two cable ties. Cut off excess aramid yarn and excess cable tie strap. Make sure the cable tie head is positioned as shown on image above. page 7 / 10 © 2024 CommScope, Inc. All Rights Reserved... -
Page 8: Splice Holder Installation And Removal
To remove the splice holder use the tip of a pen to unlock the splice holder, then slide the splice holder from left to right. Splice and routing Note: Route subunits one complete loop before entering splice holder. page 8 / 10 © 2024 CommScope, Inc. All Rights Reserved... -
Page 9: Mount The Closure
After every re-entry use a new closure housing. Attention: It's very important to ensure all snap hooks snap into each other and tie wraps are applied to each end. page 9 / 10 © 2024 CommScope, Inc. All Rights Reserved... -
Page 10: Disclaimer
This product may be covered by one or more U.S. patents or their foreign equivalents. For patents, see www.cs-pat.com. This document is not intended to modify or supplement any specifications or warranties relating to CommScope products or services.
