Onecell Hardware Components; Baseband Controller Physical Ports; Figure 1-1 Onecell Solution - CommScope ONECELL RP5200 Hardware Installation Manual

Table of Contents

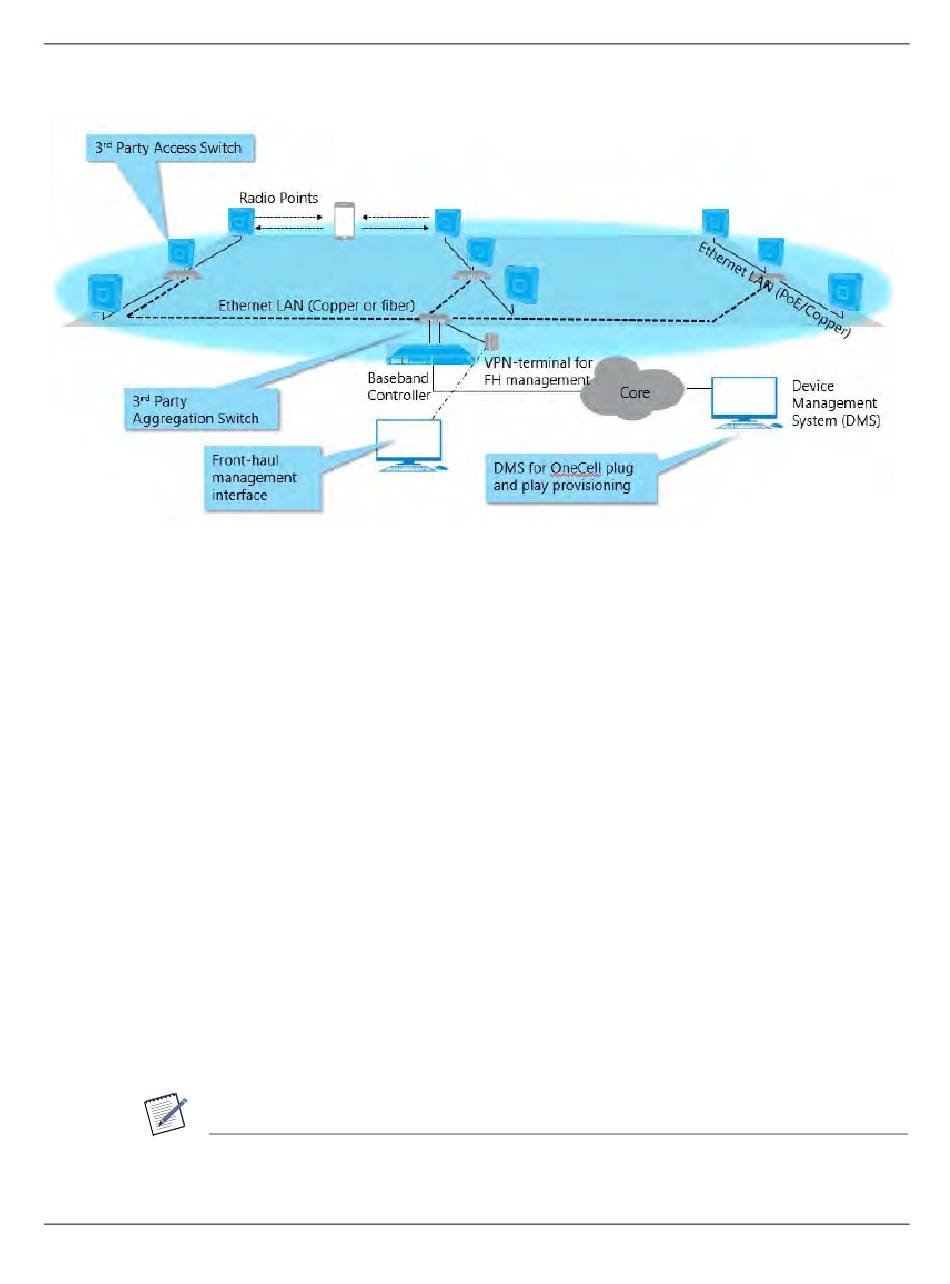

Figure 1-1.

ONECELL solution

ONECELL hardware components

The ONECELL hardware consists of the following components:

•

The following ports are on the front panel of the Baseband Controller Module.

Table 1-1

GPS antenna cable.

NOTE

For more detailed BC port information, see ONECELL

v5.5 (M0304AF).

ONECELL

RP5200 Hardware Installation, Release 5.5

Baseband Controller

— Baseband Controller Chassis

— Baseband Controller Module

— Power/Fan Unit (PFU)

Radio Points

— RP2000 series

— RP5000 series

shows the port assignments. In addition, there is a connector used for the

Chapter 1 CommScope ONECELL® overview

Network Planning Guide,

1-3
