TC-1547-IP-PA
Rev. A, June 2023
http://www.commscope.com
About this manual
This manual describes the installation steps of the drop patch application of the Compact Closure 200 series.
Installation steps in this document are limited to: splice input connectors to feeder fiber, splitter application in the
pocket zone and install connectorized drop cable (SC, LC, SC Xpres and duplex LC Xpres).
Installation steps of the feeder cables are explained in manual TC-1547-IP: CC 200 Basic Instructions.
Installation steps of the branch applications are explained in manual TC-1547-IP-BR: CC 200 Branch Application.
The document starts with providing an overview of the tools required to perform the installation. Also warnings and
cautions are indicated, which should be observed before starting the product installation.
Images in this manual are for reference only and are subject to change.
General product information
SC/APC or SC/UPC
up to 12
LC/APC or LC/UPC
up to 24

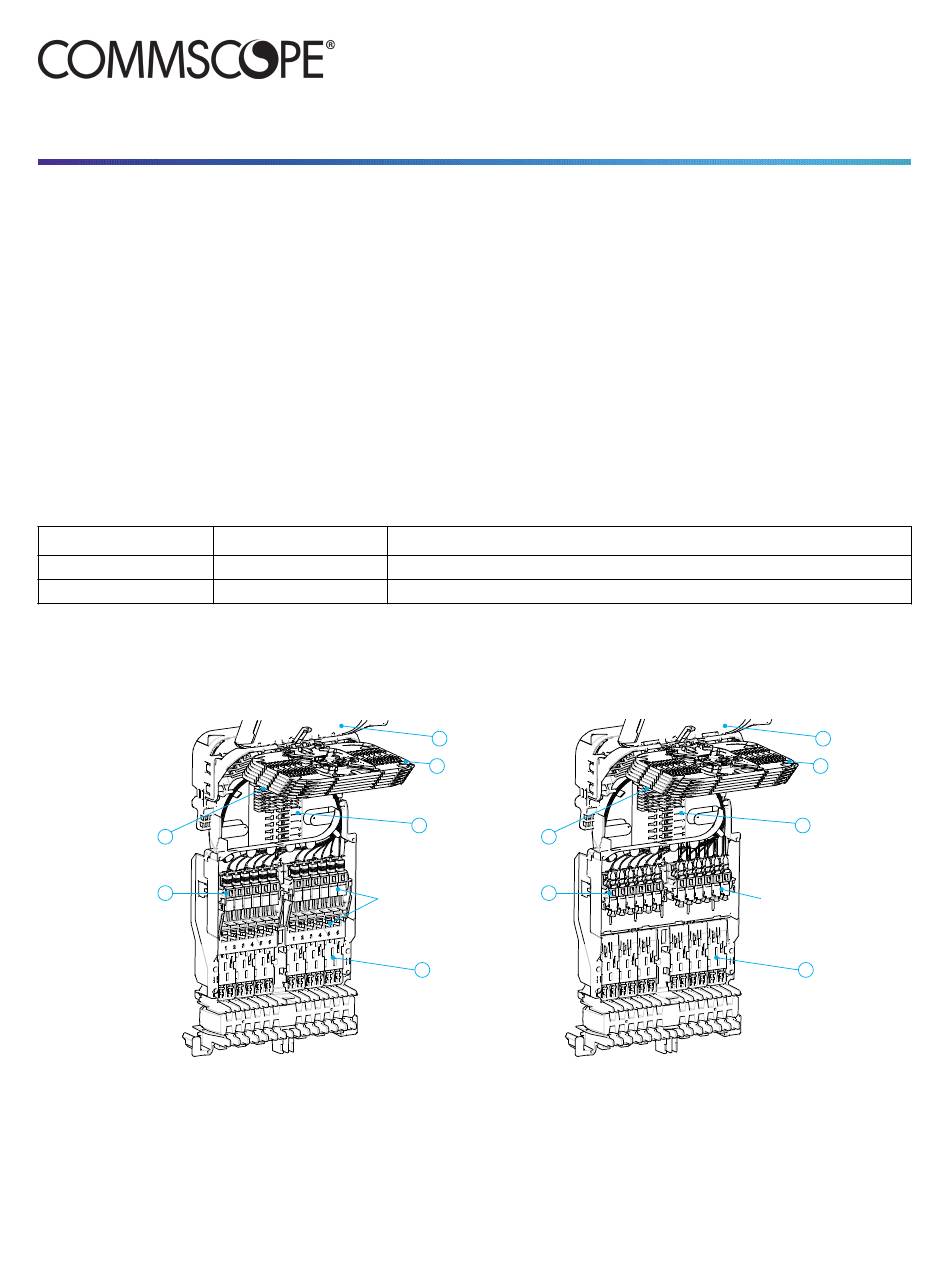

Overview organizer
Different patch configurations are available: SC, LC, SC Xpres, duplex LC Xpres,..
First figure below shows SC Xpres configuration, second figure shows the LC configuration.
5
2
1
Drop cable positions
2
Adapters with input connectors factory installed (SC or LC)
3
Demarcation cover
4
Splice trays
5
Storage trays
6
Pocket with input 900µm (12 or 24) temporarily stored
NOVUX™ Fiber Optic System
CC 200 Drop Patch Application
Quantity drops
Pre-connectorized, Xpres drop
Pre-connectorized, dual Xpres drop
6
SC Xpres
configuration
1
© 2023 CommScope, Inc. All Rights Reserved
Installation Instructions
Installation method drops
3
4
5
2
page 1 / 13
3
4
6
LC
configuration
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOVUX CC 200 and is the answer not in the manual?

Questions and answers

Summary of Contents for CommScope NOVUX CC 200

  • Page 1 Drop cable positions Adapters with input connectors factory installed (SC or LC) Demarcation cover Splice trays Storage trays Pocket with input 900µm (12 or 24) temporarily stored page 1 / 13 © 2023 CommScope, Inc. All Rights Reserved...
  • Page 2: Table Of Contents

    4.5 Install duplex LC Xpress drop..............12 3.3 Splice feeder to a factory installed splitter..........6 Disclaimer..................13 3.4 Splice feeder and input connectors to a field installable Contact information................ 13 splitter......................... 7 page 2 / 13 © 2023 CommScope, Inc. All Rights Reserved...
  • Page 3: Tools

    • Fiber optic cables may be damaged if bent or curved to a radius that is less than the recommended minimum bend radius. Always observe the recommended bend radius limit when installing fiber optic cables, subunits and patch cords. page 3 / 13 © 2023 CommScope, Inc. All Rights Reserved...
  • Page 4: Splice Feeder To Input Connector

    Route a subunit from the feeder cable to the front side and strip it as explained in TC-1547-IP: Basic instructions. Remove all the 900µm fibers (input of the connectors) from the pocket. page 4 / 13 © 2023 CommScope, Inc. All Rights Reserved...
  • Page 5 - Make sure all fibers are properly positioned under the lips Note: The fiber guidance pen can be used to position all the fibers under the lips. Also using the holes in the pocket. See step 4. page 5 / 13 © 2023 CommScope, Inc. All Rights Reserved...
  • Page 6: Splice Feeder To A Factory Installed Splitter

    - Make sure all fibers are properly positioned under the lips. Note: The fiber guidance pen can be used to position all the fibers under the lips. Also using the holes in the pocket. page 6 / 13 © 2023 CommScope, Inc. All Rights Reserved...
  • Page 7: Splice Feeder And Input Connectors To A Field Installable Splitter

    - Make sure all fibers are properly positioned under the lips. Note: The fiber guidance pen can be used to position all the fibers under the lips. Also using the holes in the pocket. page 7 / 13 © 2023 CommScope, Inc. All Rights Reserved...
  • Page 8: Install Drop Cable

    Each cable should be routed to a separate entrance port. Dress each cable between the two ribs of the entrance port below the adapter port. Note: To keep the cables in place, the external drop cable fixation bracket is recommended. page 8 / 13 © 2023 CommScope, Inc. All Rights Reserved...
  • Page 9: Install Sc Xpres Drop

    The metal ring just under the connector will click into the two snap features. The cable is hold between the two snap hooks positioned lower on the organizer. All Xpres drop cables installed. page 9 / 13 © 2023 CommScope, Inc. All Rights Reserved...
  • Page 10: Install Sc-Connectorized Cable In A Fixed 16 Patch Panel

    All 16 connectors installed. Note: To keep the cables in place, the external drop cable fixation bracket is recommended. page 10 / 13 © 2023 CommScope, Inc. All Rights Reserved...
  • Page 11: Install Lc-Connectorized Cable

    Connect the second cable following procedure explained in step 4. In total 24 LC connectors can be installed. Note: To keep the cables in place, the external drop cable fixation bracket is recommended. page 11 / 13 © 2023 CommScope, Inc. All Rights Reserved...
  • Page 12: Install Duplex Lc Xpress Drop

    The metal ring just under the connector will click into the two snap features. The cable is hold between the two snap hooks positioned lower on the organizer. All Xpres drop cables installed. page 12 / 13 © 2023 CommScope, Inc. All Rights Reserved...
  • Page 13: Disclaimer

    This product may be covered by one or more U.S. patents or their foreign equivalents. For patents, see www.cs-pat.com. This document is not intended to modify or supplement any specifications or warranties relating to CommScope products or services.
