Installation Instructions
MT050C
Andrew Solutions
Customer Service 24 hours
U.S.A., Canada, Mexico: 1-800-255-1479
or 1-888-235-5732
U.K.: 0800 250055
Other Europe: +44 592 782 612
Notice: Andrew disclaims any liability or responsibility for the results of improper or unsafe installation, inspection, maintenance, or removal practices.
Aviso: Andrews no acepta ninguna obligacion ni responsabilidad como resultado de practicas incorrectas o peligrosas de instalacion, inspecci6n, mantenimiento o retire.
Avis : Andrew decline toute responsabilite pour les consequences de procedures d'installation, d'inspection, d'entretien ou de retrait incorrectes ou dangereuses.
Hinweis: Andrew lehnt jede Haftung Oder Verantwortung fur Schaden ab, die aufgrund unsachgemaBer Installation, Uberprufung, Wartung Oder Demontage auftreten.
Atencao: A Andrew abdica do direito de toda responsabilidade pelos resultados de praticas inadequadas e sem seguranca de instalacao, inspecao, manutengao ou remocao.
Awertenza: Andrew declina eventual! responsabilita denvanti dell'esecuzione di procedure di installazione, ispezione, manutenzione e smontaggio improprie o poco sicure.
MT050C
www.commscope.com\andrew
Visit our Web site at www.commscope.com\andrew or contact your local Andrew Solutions representative for more information.
© 2008 CommScope, Inc. All rights reserved.
Andrew Solutions is a trademark of CommScope. All trademarks identified by ® or ™ are registered trademarks or trade-
marks, respectively, of CommScope. This document is for planning purposes only and is not intended to modify or supplement
any specifications or warranties relating to Andrew Solutions products or services.
Bulletin
Andrew Institute offers installation training.

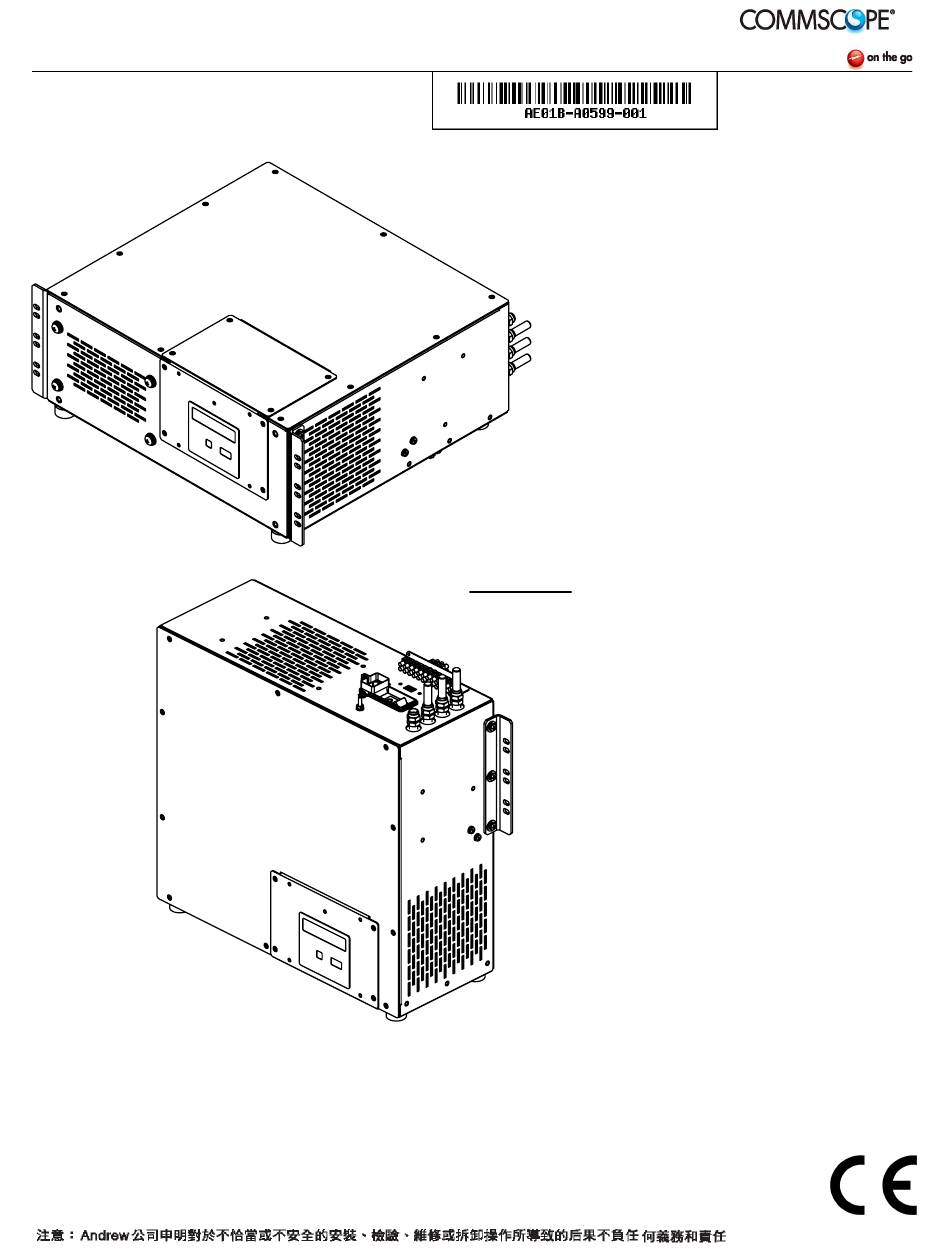

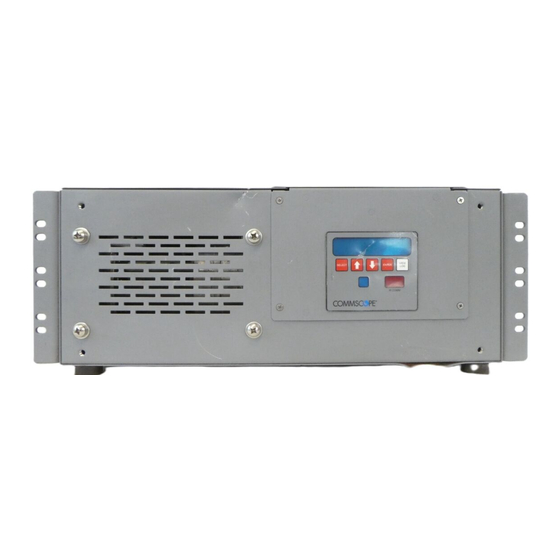

RACK MOUNT CONFIGURATION
WALL MOUNT CONFIGURATION
AE01B-A0599-001
page
1 of 14
Version
01
Status
01
Rev
A
Model Version 04
RE
Rev
B
Status
Advertisement
Table of Contents
Related Manuals for CommScope MT050C
Summary of Contents for CommScope MT050C
- Page 1 © 2008 CommScope, Inc. All rights reserved. U.S.A., Canada, Mexico: 1-800-255-1479 Andrew Solutions is a trademark of CommScope. All trademarks identified by ® or ™ are registered trademarks or trade- or 1-888-235-5732 marks, respectively, of CommScope. This document is for planning purposes only and is not intended to modify or supplement U.K.: 0800 250055...
-
Page 2: Installation Instructions
1.2 - Description MT050C Series DryLine® dehydrators provide dry air for pressurizing small (up to 60 cubic feet, or 1700 liters, in volume) antenna and transmission line systems. The dehydrators produce -50ºF (-45ºC) dew point dry air at an output rate of 0.12 cubic feet (3.4 liters) per minute. - Page 3 1.4 - Alarms The MT050C offers Low Pressure, High Humidity (Optional Kit), Excess Run and Power Fail alarms as a standard feature. In addition, a summary alarm connection is provided on all units. Alarm conditions are indicated on the display. The alarms are dry contacts and are set for continuity on alarm.
- Page 4 Excess Run: Factory strapped run time set in accordance with the normal run time for the dehydrator application. Selectable times are 1, 10, 30, 120 and 240 minutes, with the 10 minute selection used on the MT050C as the default setting.
-
Page 5: Section 2 - Installation
19" equipment rack. This unit can be easily modified for a wall-mounting configuration as well. To set the MT050C up for wall-mounting, a #2 Phillips head screwdriver is required. Remove the blank plate indicated in the image below and set aside. Remove the four screws from the PCB plate and set aside. Move the PCB plate to the area where the blank plate was originally. - Page 6 Installation Instructions MT050C Bulletin AE01B-A0599-001 page 6 of 14 Version Status Model Version 04 Status 2.3 - Electrical Installation Determine the appropriate mounting configuration for the dehydrator and ensure that the proper tools and mounting hardware are available. Additionally, ensure that an appropriate AC power connection (115 V ac or 230 V ac) is available and the dehydrator has been set to the appropriate voltage configuration.
- Page 7 Installation Instructions MT050C Bulletin AE01B-A0599-001 page 7 of 14 Version Status 2.4 - Mechanical Installation Model Version 04 Status Once the electrical connections are completed, turn on the dehydrator to verify that it turns on and has air flow at the air output ports.
- Page 8 Installation Instructions MT050C Bulletin AE01B-A0599-001 page 8 of 14 Version Status Model Version 04 Status 2.5 - Purging the Transmission Lines Air in the transmission line system must be replaced with dry air to ensure satisfactory operation of the transmitted signal.
-
Page 9: Section 3 - Maintenance
3.2 - Preventive Maintenance The annual maintenance of a MT050C consists of a preventive maintenance inspection of the dehydrator and replacement of the foam air intake filter. This task can easily be performed in the field with the unit connected to the transmission line system and with only the main cover removed for maintenance. - Page 10 3.5.4 Unit Shutdown and Removal In order to perform an overhaul on the MT050C, the unit must be turned off, power removed and removed from service. As this is being done, the low pressure alarm may active through a reporting alarm system. Personnel monitoring such an alarm should be notified in advance so that they are aware of the fact that service is being performed.
-
Page 11: Section 4 - Troubleshooting
Installation Instructions MT050C Bulletin AE01B-A0599-001 page 11 of 14 Version Status Section 4 - Troubleshooting Model Version 04 Status If you experience difficulty with your dehydrator, use the troubleshooting procedures described below. Caution: Electrical troubleshooting requires access to potentially dangerous voltages and should only be performed by a... -
Page 12: Section 5 - Replacement Kits
Section 5 - Replacement Kits Model Version 04 Status Go to commscope.com eCatalog for the most current parts available for your dehydrator. http://awapps.commscope.com/catalog/andrew/catalog. aspx MT-OVERHAUL - Compressor overhaul kit for MT050C and MT500D dehydrators. Includes compressor overhaul kit, output tubing, hose clamps, replacement coalescing filters and replacement compressor air intake filter. -
Page 13: Section 6 - Customer Service
The first step you should take if trouble develops using a dehydrator is to read the operators manual and follow the trouble isolating procedures given in it. If the steps in the manual do not identify and remedy the problem, then contact a COMMSCOPE Customer Service Center for 24- hour telephone assistance. - Page 14 A method of Payment must be provided prior to issuing of Return Material Authorization (RMA) regardless of warranty status. IN-WARRANTY REPAIR: Most COMMSCOPE pressurization products carry a warranty of one to three years, depending upon model number. Warranty details are available on our web page. If your unit falls within its warranty period, inspection and repairs will be performed at no charge and the unit will be promptly returned to you.
