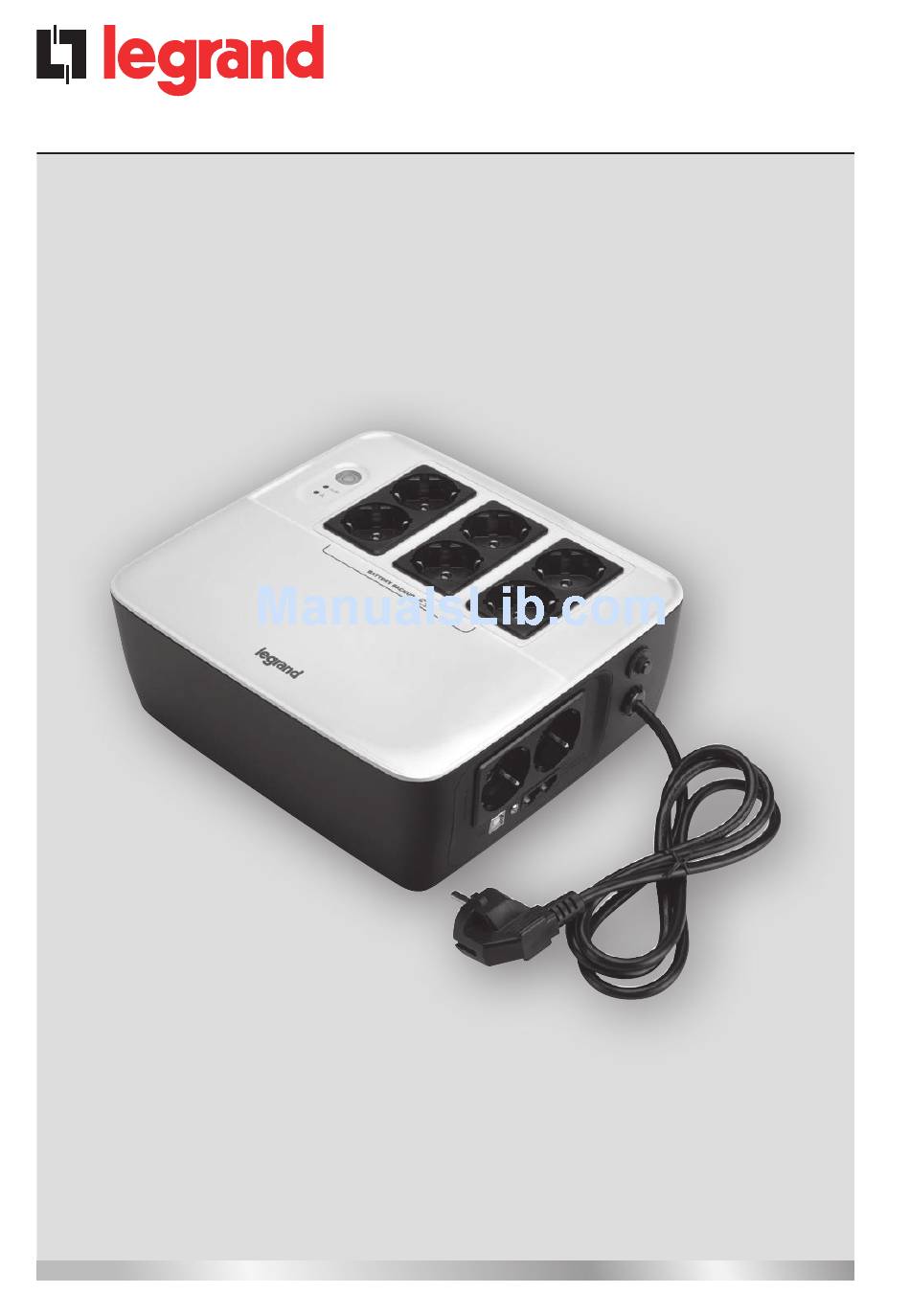

- Page 1 KEOR MULTIPLUG ® 600, 800 VA Manuel d’installation Installation manual • Part. LE07603AA-09/14-01 GF...
- Page 2 ® KEOR MULTIPLUG 600, 800 VA ENGLISH...
-
Page 3: Table Of Contents
KEOR MULTIPLUG 600, 800 VA Index 1 Introduction 2 Condition of use 3 Installation 4 UPS Software 5 Signals and control 6 Battery replacement 7 Possible malfunctioning 8 Technical features... -
Page 4: Introduction

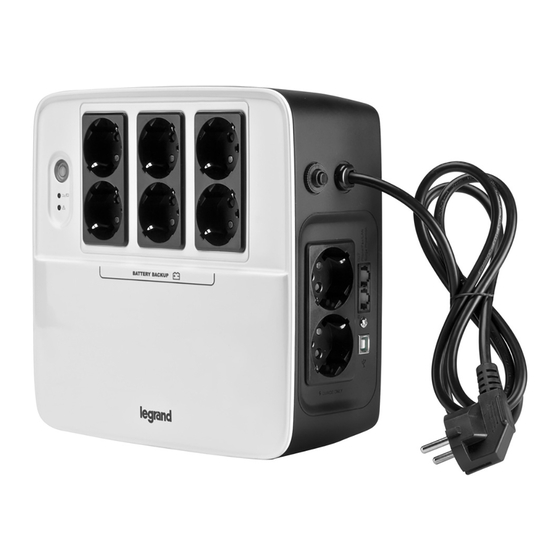

The Keor Multiplug is an Uninterruptible Power Supply (UPS) designed for home and commercial applications. This manual contains information for users of the Keor Multiplug 600,800 VA models. You are advised to read carefully this handbook and the safety instruction sheet included in the packaging before installing your uninterruptible power supply, meticulously following the instructions given herein. -
Page 5: Installation
KEOR MULTIPLUG 600, 800 VA 3 Installation 3 100 38 3 100 40 3 100 39 3 100 41 200 mm 200 mm 200 mm http://ups.legrand.com/biblioteca/ 8 Hours 100% SCANNER LASER... - Page 6 ® 3 Installation...
- Page 7 KEOR MULTIPLUG 600, 800 VA CAUTION Do not plug laser printers and scanner into the UPS outlets because of their high start-up current. CAUTION Do not plug house electric equipments, such as hair dryer, air conditioner, and refrigerator into the UPS outlets.
-
Page 8: Ups Software
In order to monitor the UPS parameters and manage the automatic shutdown of the computer powered by the UPS itself, it is possible to download the UPS Communicator software (Windows only) from the website Legrand www.ups.legrand.com in the software section. For additional information download and read the UPS Communicator manual on the web site. -
Page 9: Signals And Control
KEOR MULTIPLUG 600, 800 VA 5 Signals and control Indicators & Alarm Table for Operation Condition Blue led Red led Buzzer Line mode Always on Battery mode - normal Blinks every 1 Beep every battery voltage 10 seconds 10 seconds... -
Page 10: Battery Replacement
® 6 Battery replacement... - Page 11 KEOR MULTIPLUG 600, 800 VA CAUTION - Servicing of Batteries Should be Performed or Supervised by Trained Personnel with Knowledge of Batteries and the Required Precautions - Do Not Dispose of Battery or Batteries in an open fire. The Battery May Explode.
-
Page 12: Possible Malfunctioning
® 7 Possible malfunctioning Problem Possible Cause Solutions Low battery. Charge the UPS at least 8 hours. No LED display Replace the battery with Battery fault. on the front panel. the same type of battery. Press the power switch The UPS is not turned on. again to turn on the UPS. -
Page 13: Technical Features
KEOR MULTIPLUG 600, 800 VA 8 Technical features 3 100 38 3 100 39 3 100 40 3 100 41 Power Power Rating (Va) 600VA 800VA Power Rating (W) 360W 480W Power Factor Input Nominal Voltage 230Vac ( 220-240Vac) Nominal Current 3.4A... - Page 14 ® 8 Technical features 3 100 38 3 100 39 3 100 40 3 100 41 Output connections 6 X german/italian standard with battery back up and surge protection ( 3 100 38 / 3 100 39) 2X german/italian standard with surge protection (3 100 40 / 3 100 41) Outlet 6 X french standard with battery back up...
- Page 15 KEOR MULTIPLUG 600, 800 VA 3 100 38 3 100 39 3 100 40 3 100 41 Recharge Time 8 hours max (Recharge to 90% Capacity) Battery leakage 200uA maximum 10 min - Battery back up calculated Back up time...
- Page 16 : 33 5 55 06 87 87 Fax : 33 5 55 06 74 55 www.legrandelectric.com Legrand se réserve le droit de modifier à tout moment le contenu de cet imprimé et de communiquer, sous n’importe quelle forme et modalité, les changements apportés.
