3-4
Chapter 3: Configuring the 1746sc-INO4I
User's Manual Pub. 0300128-04 Rev. A

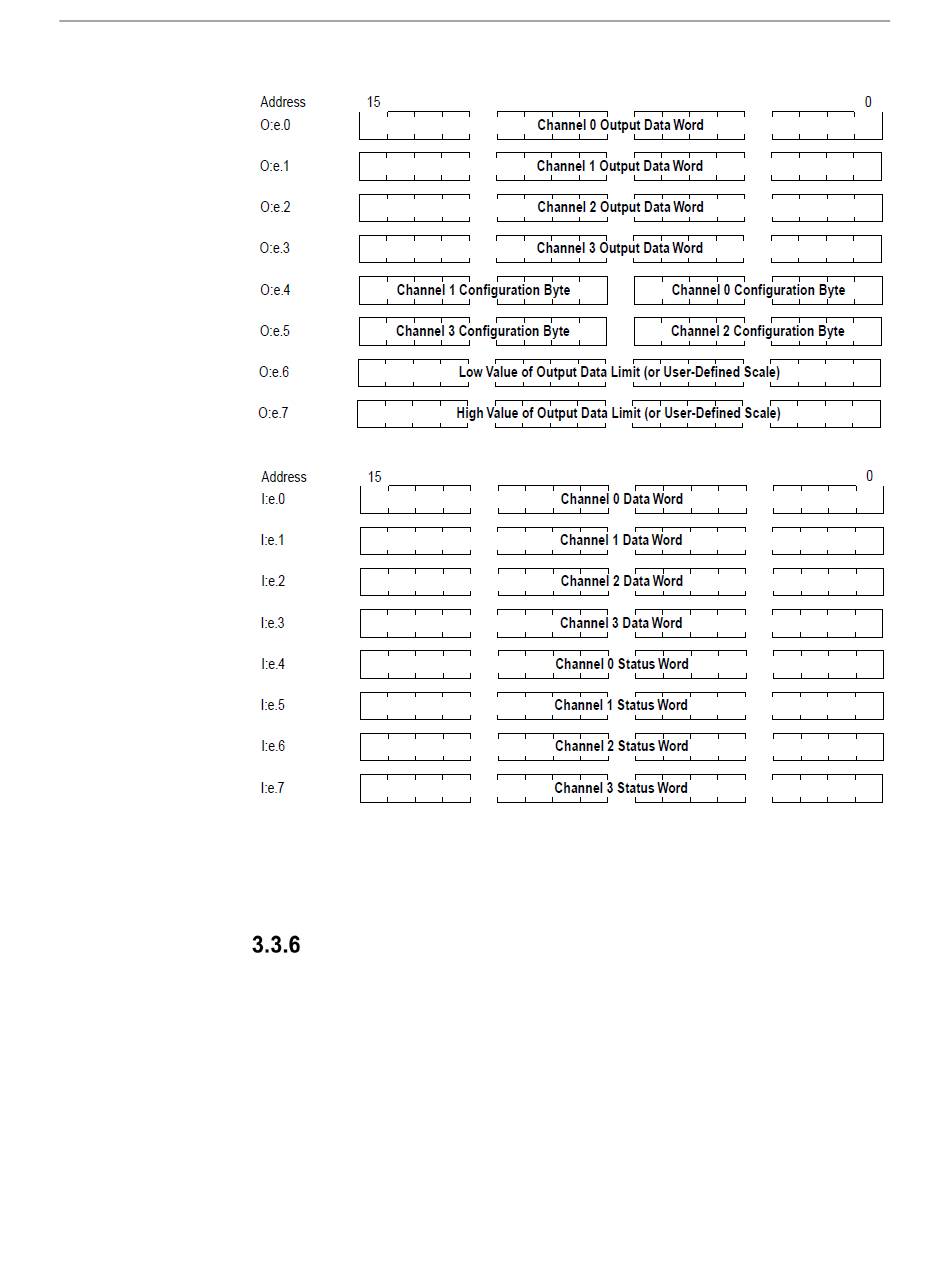

Figure 3-2. Output and Input Words
Example – If you want to reconfigure channel 2 on your module, and it is in slot
4 of the SLC chassis, you modify the configuration word at address O:4.5.
Alternatively, if you want to obtain the status of channel 2, you check the status
word at address I:4.6.

Output Image

The 8-word, output image (defined as the output from the SLC processor to your
module) defines how each channel on your module works:
The output data words control output signal levels for each channel.
The configuration bytes replace configuration DIP switches on your
module. In your output module, each word configures two channels (one
independent byte per channel).
The output limit values define minimum and maximum output data
values, if output data limits are properly enabled.
The user-defined scale values define how your module scales output
