2-8
Chapter 2: Installation and Wiring
User's Manual Pub. 0300128-04 Rev. A
A system may malfunction due to a change in its operating environment.
After installing and wiring your module, check system operation. See the
Allen-Bradley system Installation and Operation Manual for more
information.

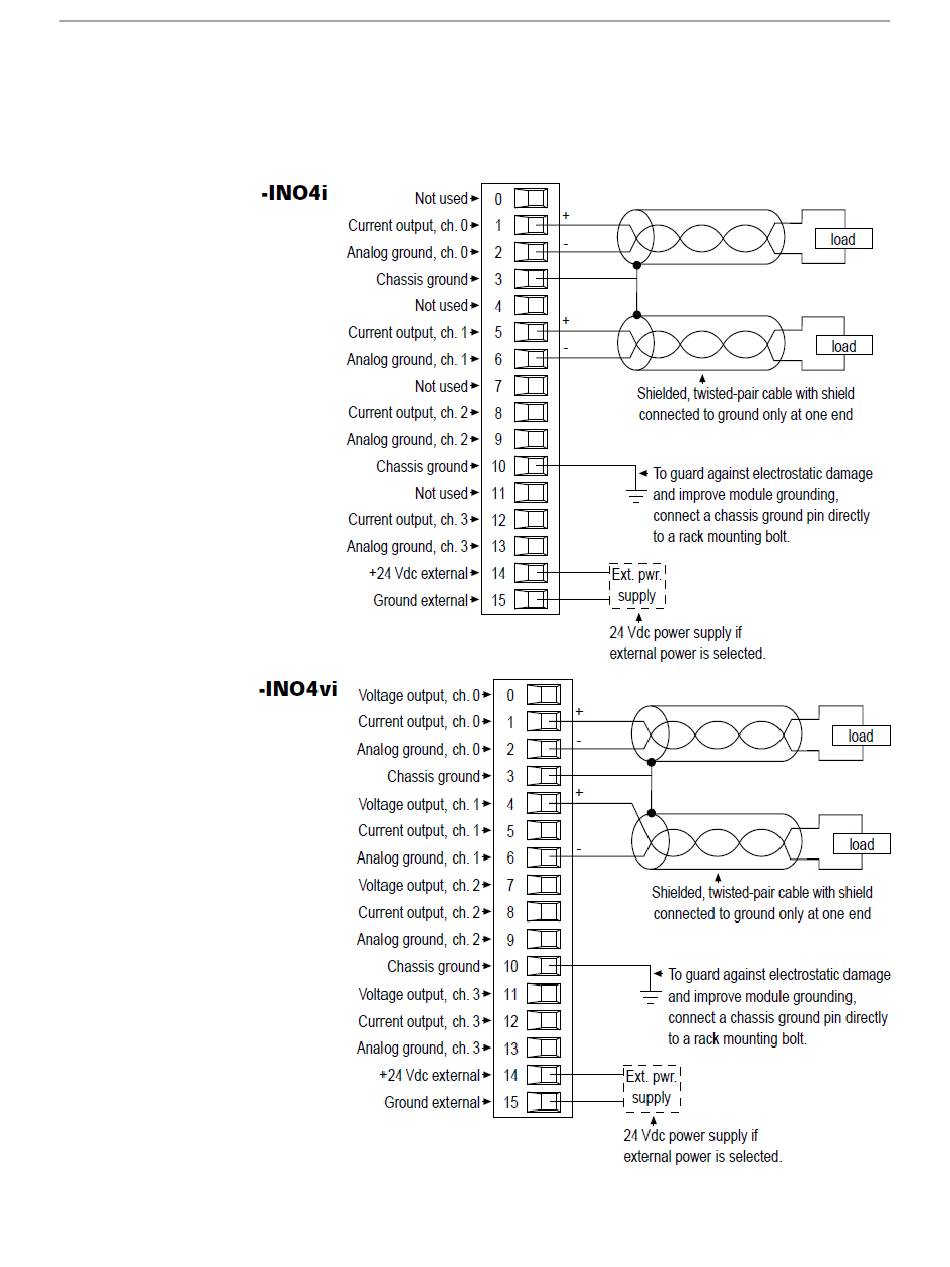

Figure 2-2. Wiring diagrams (showing differential outputs)
