Chapter 3: Configuring the 1746sc-INO4I
User's Manual Pub. 0300128-04 Rev. A

Monitoring Each Output Channel

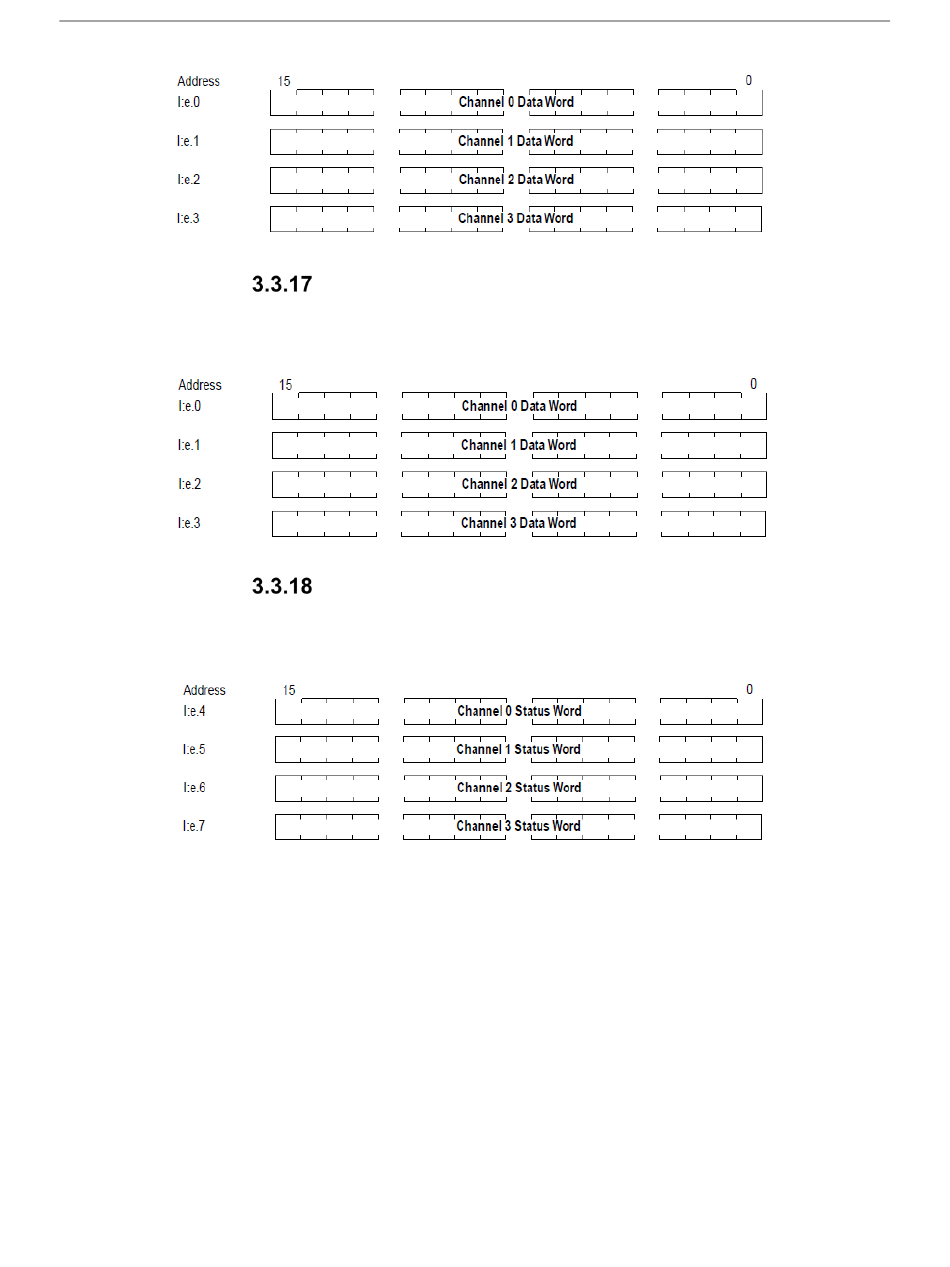

The requested output data values are reflected in words 0 through 3 of the input
image file (addresses I:e.0 through I:e.3). Whenever a channel is disabled, its
data word is reset to zero.

Checking Each Output Channel's Configuration Status

Words 4 through 7 of the input image file (addresses I:e.4 through I:e.7) reflect
the configuration and status of each channel. Use the data provided in these status
words to determine if the configuration data for any channel is valid.
Whenever a channel is disabled, its status word is set to zero.
A detailed explanation appears in Table 3-4.
