This chapter covers the following subjects:
Section 3.1
Introduction
This chapter will describe how your module works, and how to configure the
module.
Section 3.2
About
Communications
Your processor transfers data to (and receives data from) the processor through
an image table residing in the data files of your processor. The processor updates
this image table once during each scan of your ladder program. The following

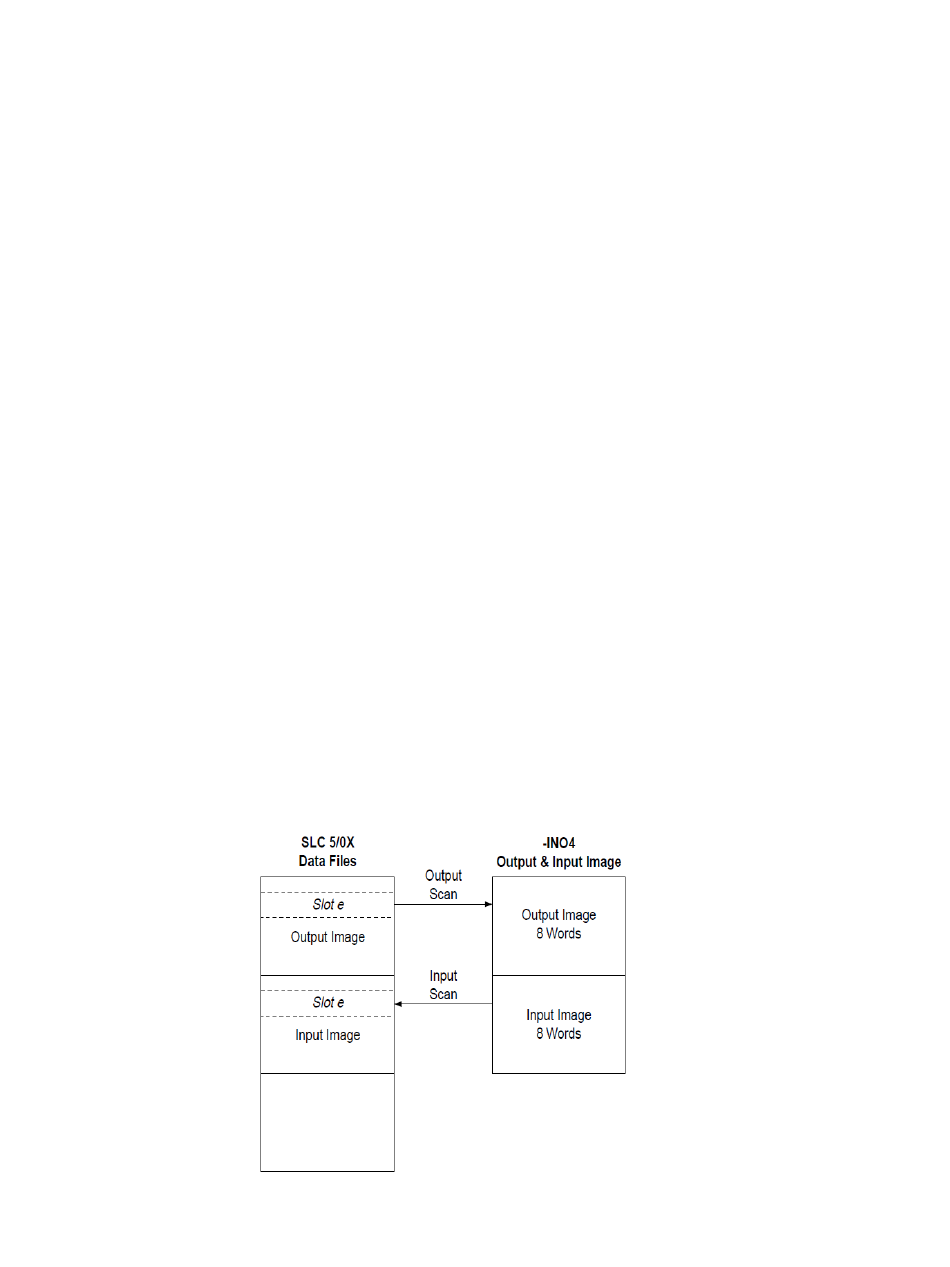

figure shows the image table for your output module:
Figure 3-1. Output and Input Scans
Chapter 3
Configuring the 1746sc-
INO4I
Introduction.
About Communications.
About Channel Update Time.
Configuring Your Module.
Reading Input Data.
Getting Technical Assistance.
Declaration of Conformity.
User's Manual Pub. 0300266-04 Rev. A
