Chapter 3: Configuring the 1746sc-INO4I
3-13
Channel status word details, Input Words 4 through 7 (I:e.4 through I:e.7 are
defined in the following table:

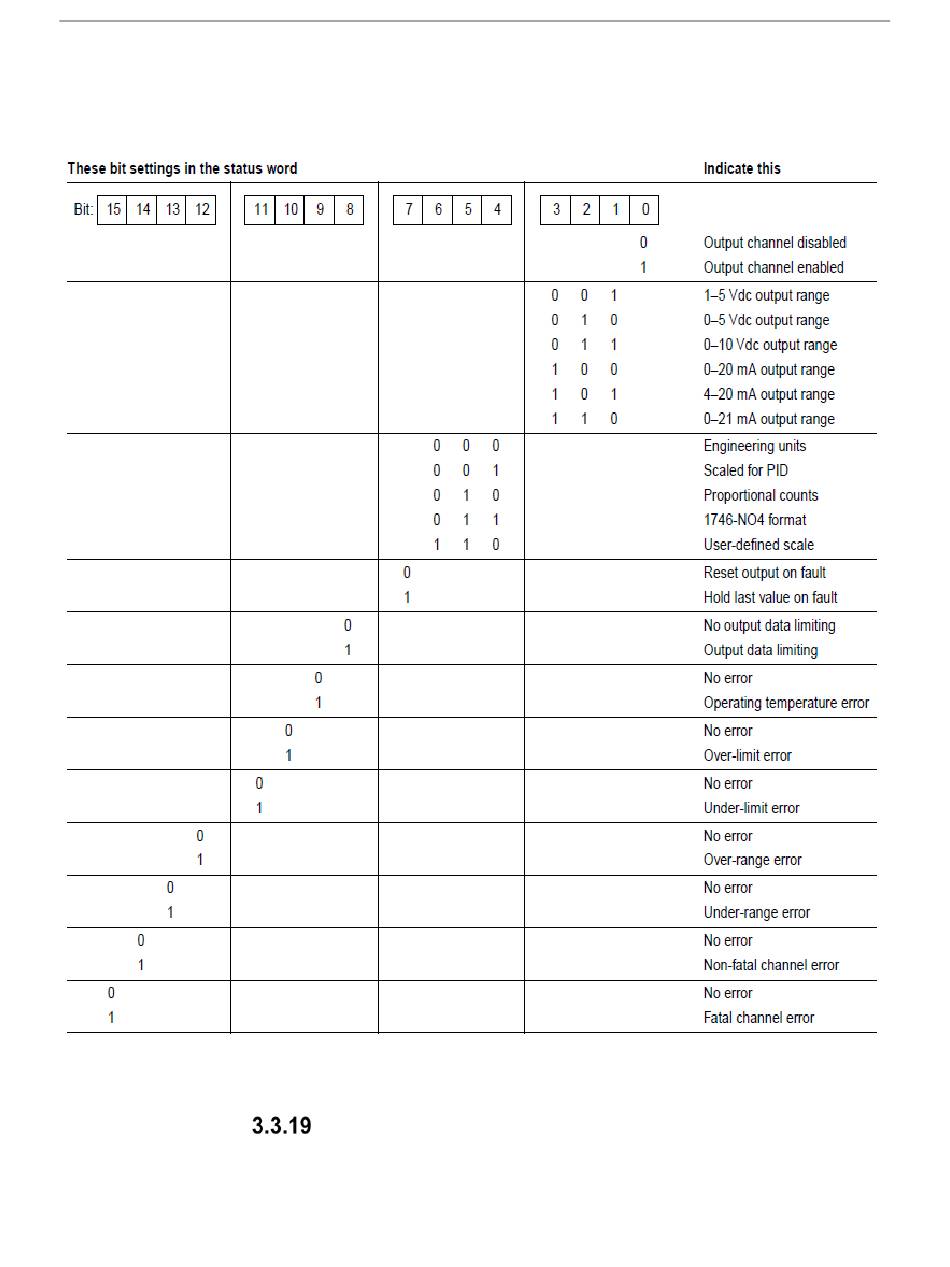

Table 3-4 Channel Status Word Details, Input Words 4 through 7 (I:e.4
through I:e.7)
The first 8 status bits reflect the settings in the channel configuration word. The
remaining status bits flag the various errors that the module can detect.

Output Data Limiting Enabled (status bit 8)

This bit is set to one whenever output data limiting is properly enabled. To
properly enable output data limiting, the low and high output limits (output
User's Manual Pub. 0300266-04 Rev. A
