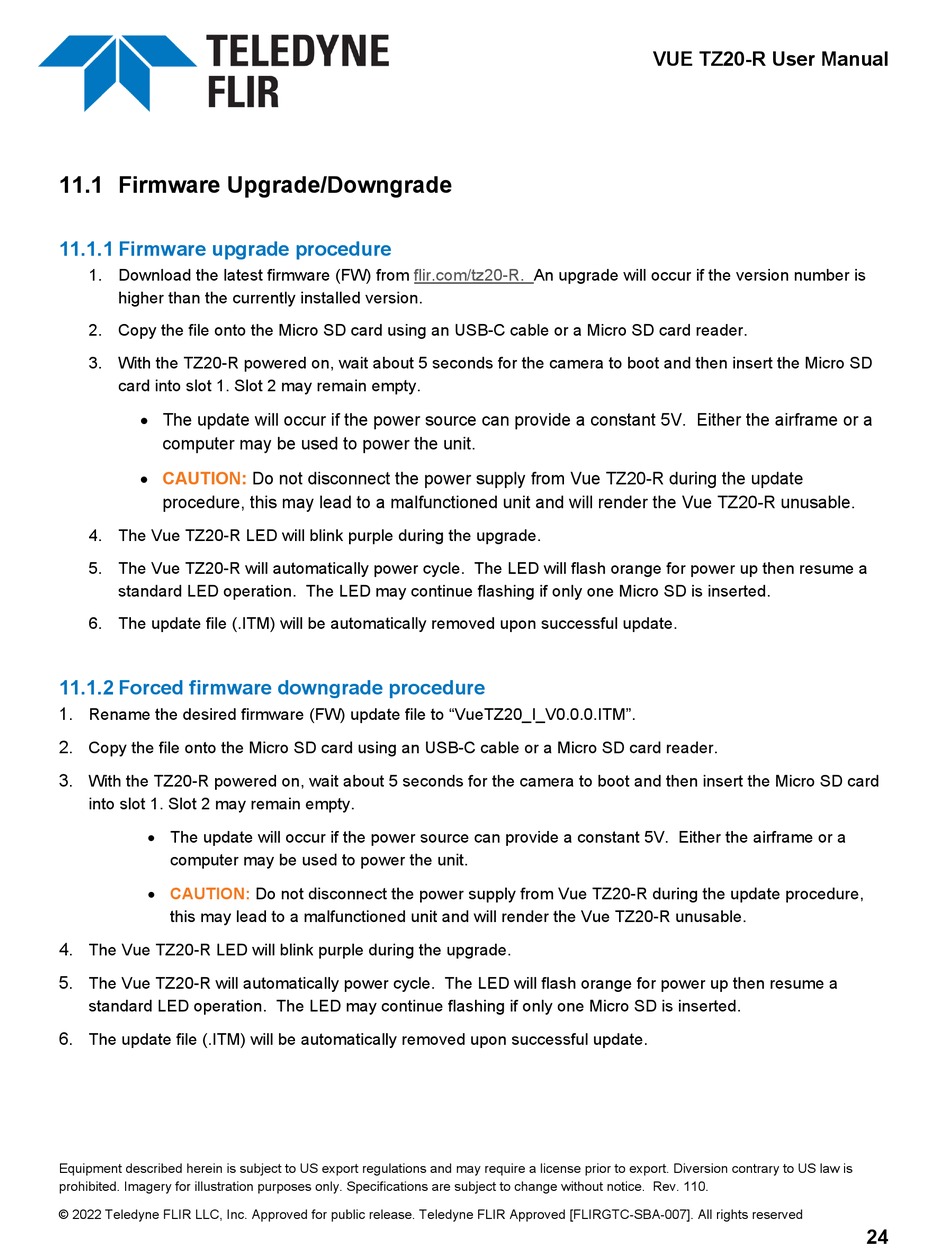

11.1 Firmware Upgrade/Downgrade

11.1.1 Firmware upgrade procedure

1. Download the latest firmware (FW) from

higher than the currently installed version.

2. Copy the file onto the Micro SD card using an USB-C cable or a Micro SD card reader.

3. With the TZ20-R powered on, wait about 5 seconds for the camera to boot and then insert the Micro SD

card into slot 1. Slot 2 may remain empty.

 The update will occur if the power source can provide a constant 5V. Either the airframe or a

computer may be used to power the unit.



CAUTION:

procedure, this may lead to a malfunctioned unit and will render the Vue TZ20-R unusable.

4. The Vue TZ20-R LED will blink purple during the upgrade.

5. The Vue TZ20-R will automatically power cycle. The LED will flash orange for power up then resume a

standard LED operation. The LED may continue flashing if only one Micro SD is inserted.

6. The update file (.ITM) will be automatically removed upon successful update.

11.1.2 Forced firmware downgrade procedure

1. Rename the desired firmware (FW) update file to "VueTZ20_I_V0.0.0.ITM".

2. Copy the file onto the Micro SD card using an USB-C cable or a Micro SD card reader.

3. With the TZ20-R powered on, wait about 5 seconds for the camera to boot and then insert the Micro SD card

into slot 1. Slot 2 may remain empty.

 The update will occur if the power source can provide a constant 5V. Either the airframe or a

computer may be used to power the unit.



CAUTION:

this may lead to a malfunctioned unit and will render the Vue TZ20-R unusable.

4. The Vue TZ20-R LED will blink purple during the upgrade.

5. The Vue TZ20-R will automatically power cycle. The LED will flash orange for power up then resume a

standard LED operation. The LED may continue flashing if only one Micro SD is inserted.

6. The update file (.ITM) will be automatically removed upon successful update.

Equipment described herein is subject to US export regulations and may require a license prior to export. Diversion contrary to US law is

prohibited. Imagery for illustration purposes only. Specifications are subject to change without notice. Rev. 110.

flir.com/tz20-R.

Do not disconnect the power supply from Vue TZ20-R during the update

Do not disconnect the power supply from Vue TZ20-R during the update procedure,

VUE TZ20-R User Manual

An upgrade will occur if the version number is
