  • Page 1 USER MANUAL Diagnostic Thermal Camera Models TG267, TG297, and TG165–X...
  • Page 3 USER MANUAL Diagnostic Thermal Camera #NAS100014; r. AJ/68076/68076; en-US...

  • Page 5: Table Of Contents

    Bluetooth® Communication and FLIR Tools™ ...... 20 Bluetooth® Communication Overview......20 Download the FLIR Tools™ Mobile App......20 Setting up the FLIR Tools™ Mobile App......20 Transmit Images via Bluetooth® ........20 FCC Compliance ............22 GITEKI Certified ............23 Field Firmware Updates .............
  • Page 6 10.3 Image Presentation Specifications........ 26 10.4 Measurement Specifications ........27 10.5 Measurement Analysis Specifications ......27 10.6 Type-K specifications (TG267 only) ......27 10.7 Configuration Specifications........28 10.8 Image Storage Specifications ........28 10.9 Digital Camera Specifications........28 10.10 Flashlight Specifications..........28 10.11 Laser Pointer Specifications ........

  • Page 7: Advisories

    The documentation must not, in whole or part, be copied, photocopied, repro- duced, translated or transmitted to any electronic medium or machine-read- able form without prior consent, in writing, from FLIR Systems. Names and marks appearing on the products herein are either registered trademarks or trademarks of FLIR Systems and/or its subsidiaries.

  • Page 8: Introduction

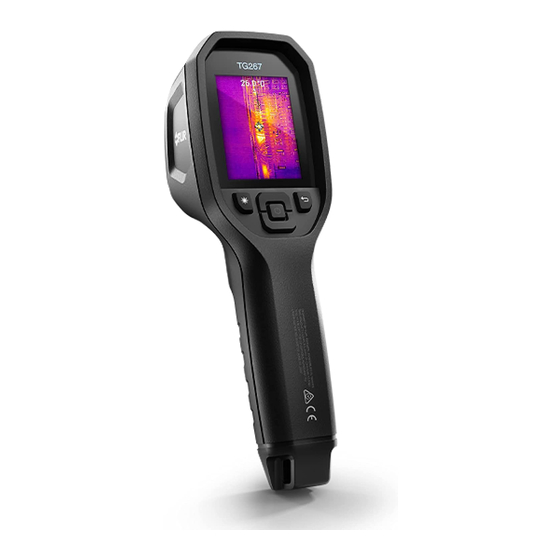

    Introduction The FLIR TG267, TG297, and TG165–X are Diagnostic Thermal Cameras which combine non-contact temperature measurement and thermal imaging into one troubleshooting tool to help you quickly find the source of heat-re- lated problems and spot potential faults. The FLIR TG267 adds Type-K thermocouple contact temperature measurements.

  • Page 9: Safety

    Safety 3.1 Safety Warnings and Cautions WARNING ⚠This symbol, adjacent to another symbol indicates the user must refer to the manual for further information. WARNING The instrument’s IP54 rating is only in affect when the top flap (covering the USB-C and Thermocouple jacks) is completely sealed.

  • Page 10: Description

    Description 4.1 Product Description Figure 4.1 Imaging IR Thermometer Description (TG297 pictured) 1. Display area 2. Return button (to back up in the menu system) 3. Laser pointer button 4. Up/Down Navigation buttons and Power button (long press)/Menu button (short press) 5.

  • Page 11: Control Button Descriptions

    Pull trigger to exit the menu system 4.3 Display Description Figure 4.2 Display Description 1. Menu area 2. Date and time 3. Battery status percentage 4. Battery status indicator 5. Bluetooth® active (TG267, TG297) 6. USB connection active #NAS100014; r. AJ/68076/68076; en-US...
  • Page 12 Description 7. Camera image area 8. Center spot cross-hairs 9. Laser Pointer active 10. Center spot temperature measurement 11. Thermocouple measurement (TG267) #NAS100014; r. AJ/68076/68076; en-US...

  • Page 13: Operation

    Operation 5.1 Camera Power Power is supplied by a rechargeable lithium battery. Long press the power button (center) to switch the camera ON or OFF. If the camera does not power ON, charge the battery by connecting to an AC wall charger using the sup- plied USB-C cable.

  • Page 14: High Temperature Switch (Tg297)

    8. To measure higher than 752℉ (400℃) on the TG297 use the High Tem- perature Switch, see Section 5.3 below. 9. The TG267 and TG165–X do not include a high temperature filter, do NOT attempt to measure > 380℃ (716℉) on the TG267 or > 300℃ (572℉) on the TG165–X.

  • Page 15: Type-K Thermocouple Measurements (Tg267)

    TG267. If the thermocouple does not include a range label, please contact FLIR technical support.
  • Page 16 Operation Figure 5.4 Thermocouple temperature readout (33.7℃, in this example) 1. If necessary, enable the thermocouple mode in the menu system (under Measurement). The thermocouple is enabled when the ‘TC’ label is shown on the display. 2. Connect a Type-K thermocouple sub-miniature plug (see Figure 5.3) to the jack in the top compartment.

  • Page 17: Visible Spectrum Camera

    Mac OS. 6. To transmit images via Bluetooth®, see Section 7, Bluetooth® Communi- cation and FLIR Tools™. Note that the TG165–X does not include Blue- tooth® capability. #NAS100014; r. AJ/68076/68076; en-US...

  • Page 18: Programming Menu System

    DELETE/DELETE ALL FILES menu. Select SEND to transmit the selected image to a paired mobile device (see Section 7, Bluetooth® Communica- tion and FLIR Tools™, for more information. Note that the TG165–X does not include Bluetooth® capability). • IMAGE ADJUSTMENTS: Press MENU to access IMAGE MODES (includ- ing MSX®...
  • Page 19 Programming Menu System 1. Image Modes: Press MENU at IMAGE MODES and use the arrow buttons to select VISIBLE IMAGE or THERMAL PLUS VISIBLE IMAGE (MSX®). 2. MSX® Alignment: Adjust the alignment (so that the thermal image and the visible image line up accurately) as follows: While viewing the THERMAL PLUS VISIBLE IMAGE screen in the menu, press MENU to access the MSX®...

  • Page 20: Settings Sub-Menu

    Programming Menu System 3. Colors: Press MENU at the colors menu and use the arrow buttons to se- lect a color palette: Iron, Rainbow, White hot, Black hot, Arctic, or Lava. Press MENU to confirm selection. • SETTINGS: Press MENU to access the Settings sub-menu (see below): 6.3 Settings Sub-Menu •...
  • Page 21 At the Custom Val- ue setting, press MENU and then use the arrows to select the emissivity value; press MENU to confirm. 3. Thermocouple: Press MENU to toggle the Thermocouple mode ON/OFF (TG267 only). #NAS100014; r. AJ/68076/68076; en-US...
  • Page 22 Programming Menu System • DEVICE SETTINGS 1. Bluetooth® (TG267 and TG297 only): Press MENU to switch Bluetooth® ON or OFF. See Section 7, Bluetooth® Communication and FLIR Tools™, for details. 2. Laser: Press MENU to enable/disable the Laser pointer. When enabled, you can use the Laser pointer button to switch ON the Laser pointer.
  • Page 23 Programming Menu System 4. Auto Power OFF (APO): Use the arrows to scroll and MENU to select the desired APO time (5/15/30 minutes). Set to ‘Never’ to disable APO. • GENERAL SETTINGS 1. Temperature Unit: Use the arrows and the MENU button to select °C or °F. 2.
  • Page 24 Programming Menu System 3. Language: Use the arrows to scroll and the MENU button to select a language. 4. System Info: Scroll to desired topic: Model Number, Serial Number, Software Level, Revision, Battery status (%), and remaining Internal Storage Capacity. •...
  • Page 25 Programming Menu System • FACTORY RESET: Follow the prompts to reset the User Settings back to Factory Default status. #NAS100014; r. AJ/68076/68076; en-US...

  • Page 26: Bluetooth® Communication And Flir Tools

    FLIR Tools™ 7.1 Bluetooth® Communication Overview When paired with a mobile device running the FLIR Tools™ App (using the METERLiNK® protocol), the TG267 and TG297 continually transmit readings for live display on the mobile device. You can also send images, stored on the camera, to your mobile device.
  • Page 27 Bluetooth® Communication and FLIR Tools™ Figure 7.1 Pairing the camera with a Mobile Device Figure 7.2 Sending Images to a Mobile Device #NAS100014; r. AJ/68076/68076; en-US...

  • Page 28: Fcc Compliance

    Bluetooth® Communication and FLIR Tools™ Figure 7.3 Viewing Transferred Images on a Mobile Device 7.5 FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference.

  • Page 29: Giteki Certified

    Bluetooth® Communication and FLIR Tools™ 4. Consult the dealer or an experienced radio/TV technician for help. WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 7.6 GITEKI Certified This product is GITEKI certified.

  • Page 30: Field Firmware Updates

    System firmware by first downloading an update file from the FLIR website and then transferring the file to the camera via USB. Connect to a PC using a USB-C cable. Firmware updates are available from https://support.flir.com.

  • Page 31: Maintenance

    Clean the lenses with a high-quality lens cleaner. 9.2 Battery Considerations and Service The rechargeable lithium battery is not user-serviceable. Please contact FLIR support for service instructions: https://support.flir.com. For best results, charge the battery immediately after seeing a low battery in- dication using the supplied USB-C cable (with an AC wall charger, not sup- plied).

  • Page 32: Specifications

    Digital image enhancement Included Thermal Sensitivity /NETD < 70 mK Field of View (FOV) TG267 and TG297: 57° (H) x 44° (D) TG165–X: 51° (H) x 66° (D) Minimum focus distance 0.89 ft. (0.3 m) Distance-to-Spot ratio 30:1 for TG297 24:1 for TG267 and TG165–X...

  • Page 33: Measurement Specifications

    • Visible Spectrum 10.4 Measurement Specifications Object temperature range TG267: –25 ~ +380℃ (–13 ~ +716℉) TG297: –25 ~ +1030℃ (–13 ~ +1886℉) TG165–X: –25 ~ +300℃ (–13 ~ +572℉) Accuracy at ambient temperature: 59 ~95℉ -13℉ ~ 32℉ (-25℃ to 0℃): ± 7.0℉ (±...

  • Page 34: Configuration Specifications

    Please do not exceed the specified range printed on the thermocouple label. To measure higher or lower than the range of the supplied thermocouple, please use a Type-K thermocouple rated for the desired range. Contact FLIR for additional information 10.7 Configuration Specifications...

  • Page 35: Laser Pointer Specifications

    (circular target) Laser class Class I 10.12 Data Communication and Interface Specifications Interfaces USB 2.0 and Bluetooth® (TG267 and TG297 only) USB-C for data transfer and battery charging Not 100% compatible with USB-C to USB- C cables. Use only a USB-C to USB-A cable.

  • Page 36: Environmental Specifications

    Specifications 10.14 Environmental Specifications Altitude 6562 ft. (2000 m) Pollution degree Operating temperature 14 ~ 113℉ (-10 ~ 45℃) Storage temperature -22 ~ 131℉ (-30 ~ 55℃) Humidity (operating and storage) 0 ~ 90% Relative Humidity (RH) 32 ~ 98.6℉ (0 ~ 37℃) 0 ~ 65% RH 98.6 ~ 113℉...

  • Page 37: Physical Specifications

    Specifications 10.15 Physical Specifications Weight 13.9 oz. (0.39 kg) Size (L x W x H) 8.3 x 2.5 x 3.2 in. (210 x 64 x 81 mm) Accessory mount UNC ¼”-20 10.16 Included Equipment Standard equipment Camera, USB-C cable, printed Quick Start Guide, Lanyard, Carry Pouch #NAS100014;...

  • Page 38: 11 2-10 Extended Warranty

    Otherwise, the standard one-year warranty will be in affect from date of purchase. The 2–10 warranty covers parts and labor for the cam- era for 2 years and coverage of the detector for 10 years. Register your prod- uct at https://support.flir.com/prodreg. #NAS100014; r. AJ/68076/68076; en-US...

  • Page 39: Customer Support

    Customer Support Repair, Calibration, and Technical Support: https://support.flir.com. 12.1 Corporate Headquarters FLIR Systems, Inc. 27700 SW Parkway Avenue Wilsonville, OR 97070, USA #NAS100014; r. AJ/68076/68076; en-US...
  • Page 40 #NAS100014; r. AJ/68076/68076; en-US...
  • Page 42 Customer support http://support.flir.com Copyright © 2020, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations.

This manual is also suitable for:

Tg297Tg165-x
