Summary of Contents for FLIR VS290-21

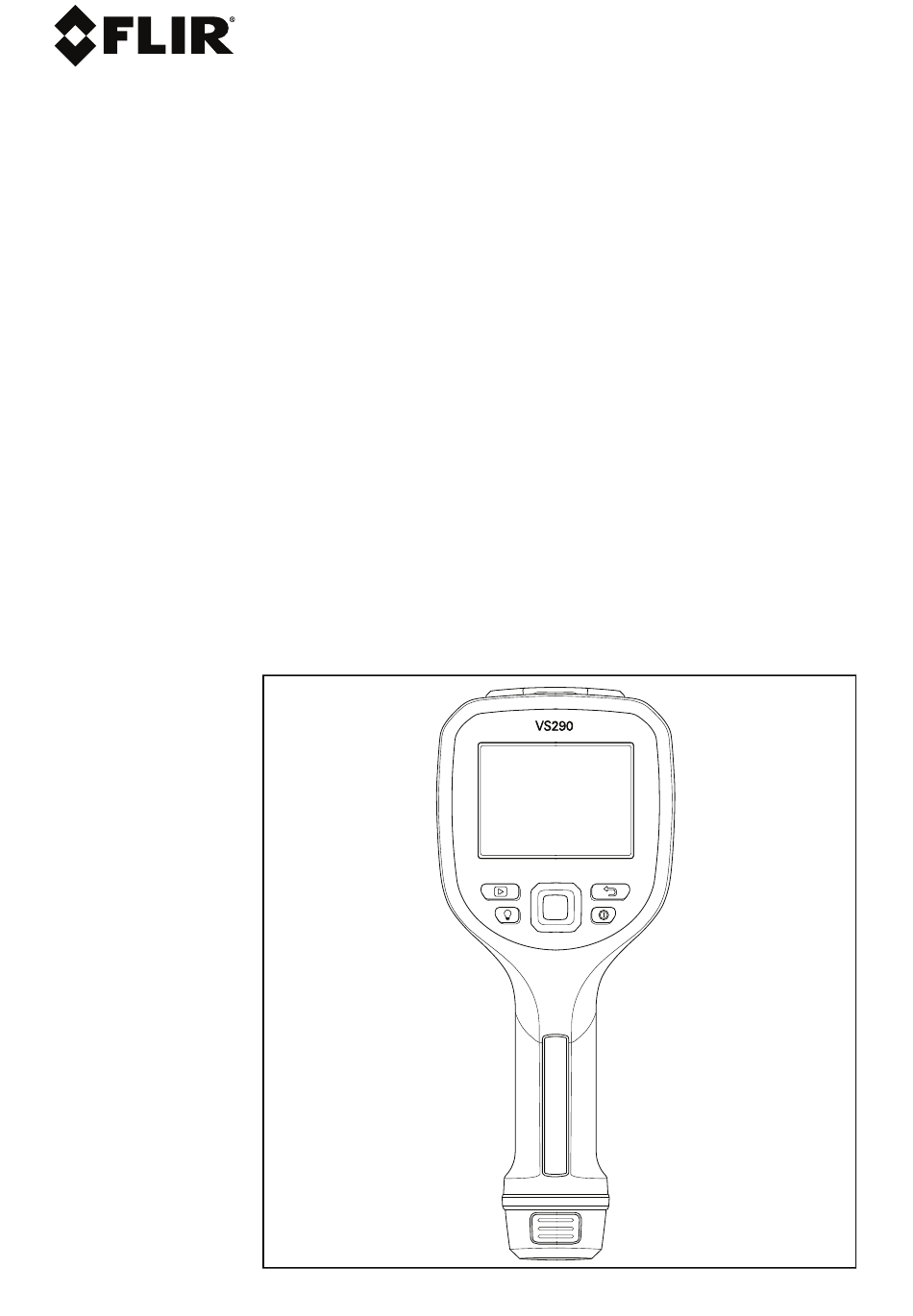

- Page 1 Quick Start Thermal Videoscope Kits Kit nos. VS290–21, VS290–32, VS290–33...
-
Page 2: Quick Steps
Before use, please read the entire Quick Start and online User Manual, available at this address: https://support.flir.com 1. Insert a fully charged battery into the VS290–00 handle. 2. Long press the power button to power up. If the battery voltage is low, an alert will appear. -
Page 3: Safety Information
• Before operating the device, you must read, understand, and fol- low all instructions, dangers, warnings, cautions, and notes. • FLIR Systems reserves the right to discontinue models, parts or accessories, and other items, or to change specifications at any time without prior notice. -
Page 4: Product Descriptions
PRODUCT DESCRIPTIONS VS290–00 Description 1. Camera display 2. Image and video Gallery button 3. LED worklight button 4. Menu button (center) and navigation buttons (outer ring) 5. Return button (exit a menu) 6. Power button (long press) 7. USB jack and memory card compartment 8. - Page 5 Camera Probe Descriptions 1. Thermal camera lens 2. Digital camera lens 3. LED worklight 4. Probe Display Description 1. Battery status 2. Wi-Fi (reserved for future use) 3. USB active 4. Worklight active 5. Cross-hairs. Target a surface spot (see Measurement Mode menu) 6.
-
Page 6: Programming Menu
7. Range of the selected display color palette. Alarm alerts are al- so represented here 8. Lowest temperature sensed in the current camera image 9. Main menu icons 10. Thermal MSX alignment tool (VSC-IR32 and VSC-IR33). Refer to the Alignment Distance menu 11. - Page 7 Color Palette Menu To select a display color palette, press Menu on the Color icon and use the navigation arrows to scroll. Press Menu when the de- sired color palette is selected (Iron, Rainbow, Gray, Above Alarm, or Below Alarm). In the Above/Below Alarm modes, select a high/ low alarm set point.
-
Page 8: Settings Menu
SETTINGS MENU Recording Mode Sub-Menu Press Menu on the Settings icon and press Menu again at the Re- cording Mode sub-menu. Select Video or Single-shot using the navigation buttons and press Menu to confirm. Pull and hold the trigger to start/stop a video recording or to capture a single image. Measurement Parameters Sub-Menu Press Menu on the Settings icon and press Menu again at the Measurement Parameters sub-menu. - Page 9 WORKING WITH IMAGES AND VIDEO Capturing Images and Video To select video or single-shot mode see the Recording Mode sub- menu section. Pull and hold the trigger to capture an image or to start recording video. For images, release the trigger when the filename appears. For video, release the trigger when the video timer starts.
-
Page 10: Specifications
SPECIFICATIONS For additional specifications see the on-line user manual. IMAGING AND OPTICAL SPECIFICATIONS IR Resolution 160 x 120 pixels 57° x 44° Field of View (FOV) Minimum focus distance 5.9 in. (0.15 m); 25.6 in. (0.65 m) in MSX mode Image frequency 8.7 Hz IMAGE PRESENTATION... - Page 11 INCLUDED EQUIPMENT AND ACCESSORIES Videoscope display, camera probe, rechargeable batteries (2), battery charg- er, SD card, USB cable, wrist strap, hard case, printed documentation, and complimentary one–year subscription for FLIR Thermal Studio Standard application. CUSTOMER SUPPORT Customer Support Telephone List https://support.flir.com/contact...
- Page 12 #NAS100055; r. AE/79702/79705; en-US...
- Page 14 Customer support http://support.flir.com Copyright © 2021, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions.
