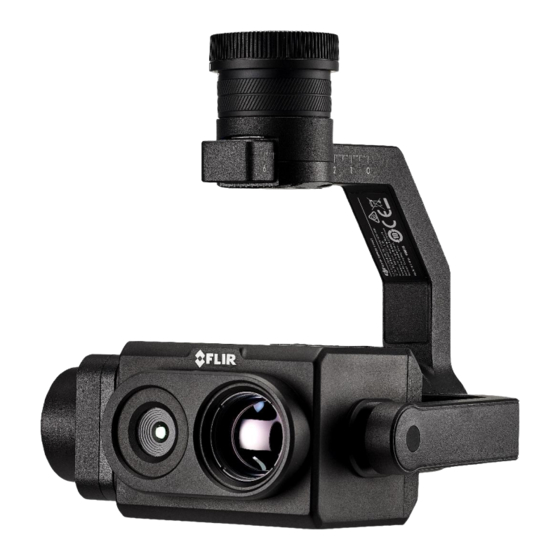

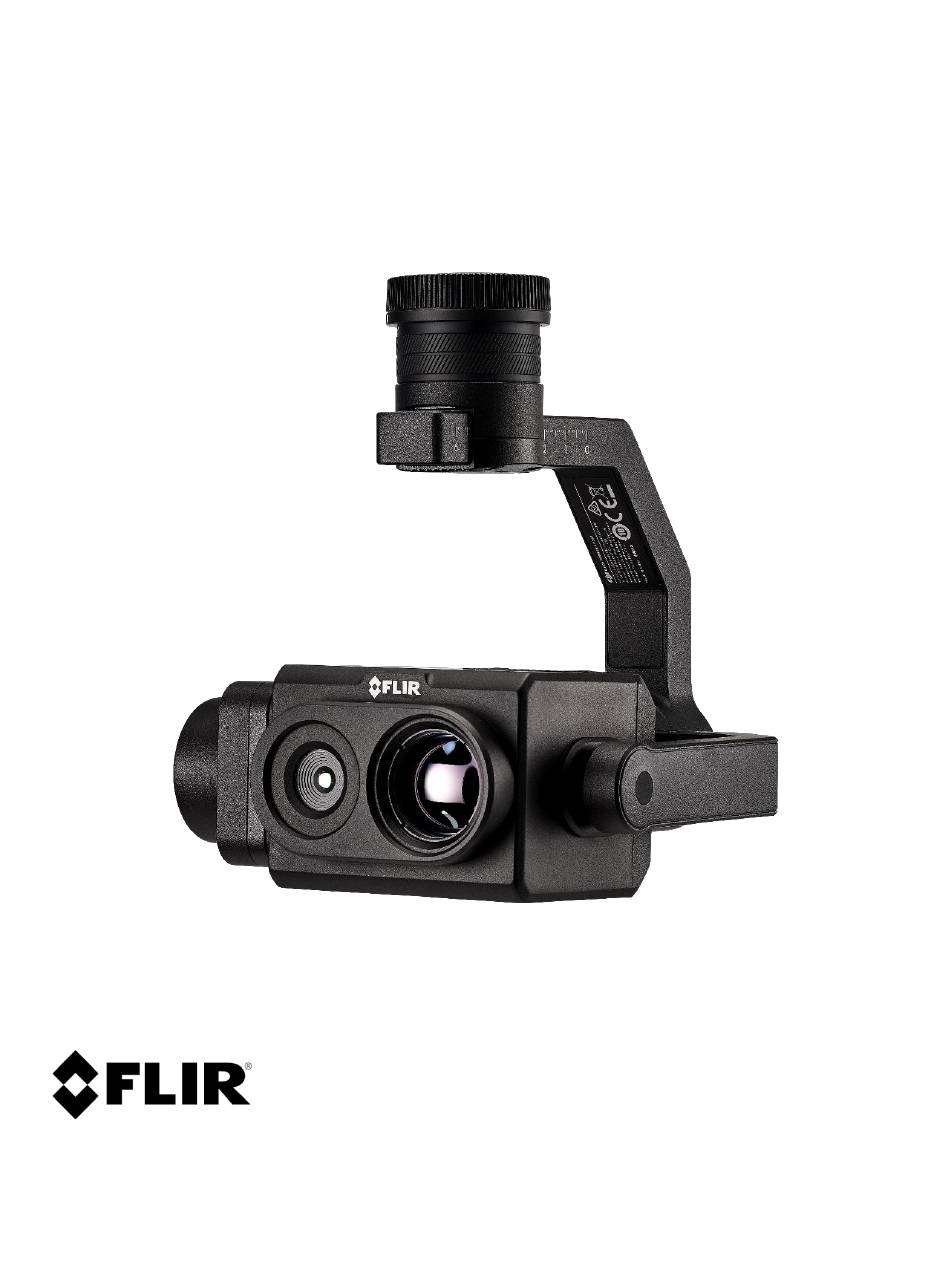

- Page 1 FLIR Vue® TZ20 User Manual...
-
Page 2: Table Of Contents
File Naming Convention .......................... 10 Tested SD Cards ............................11 Recording ..............................11 Settings................................ 12 Specifications .............................. 14 Warranty ..............................15 Troubleshooting ............................16 LED Indication Table ..........................16 Firmware upgrade/downgrade ....................... 17 USB to Boson Application ........................18 FLIR Support ..............................19... -
Page 3: Introduction
95-degree field of view for maximum situational awareness and a narrow 18-degree field of view to put more pixels on target when needed. With 20X zoom capabilities, the FLIR Vue TZ20 allows drone pilots from the public safety and industrial inspection sectors to gain field of view flexibility for improved image detail and magnification to assess situations and make critical decisions. -
Page 4: Quick Start Guide
Quick Start Guide The TZ20 is a ready-to-go, plug-and-play camera. 1. Remove the gimbal cap and connect it to your airframe 2. Rotate gimbal connector to unlocked position then insert into gimbal. Rotate the connector to locked position to secure it. 3. -
Page 5: Using Dji Pilot App
Using DJI Pilot App Compatible Devices Requires Android 5.0 or above. Matrice 300 RTK: v1.9.0R Matrice 200 V2: v1.8.0 How to Install In the Google Play store, search “DJI Pilot” and install the app onto your device. https://www.dji.com/downloads/djiapp/dji-pilot Note: refer to the website above for compatibility with your mobile device(s). -
Page 6: Main View
Main View DJI Pilot app is the one and only way to control the TZ20. User controls for the TZ20 appear on the right in the DJI Pilot app. In the default screen, users have the option to toggle between recording modes. -
Page 7: Flat Field Correction (Ffc)
Flat Field Correction (FFC) A flat field correction is an offset calibration that is triggered at powerup, after a certain change in temperature, and periodically throughout the camera operation. The purpose of the calibration is to compensate for certain errors that build up during camera operation. Ultimately, this improve the image quality by removing noise and other artefacts that may appear during use. -
Page 8: Palettes
Palettes The following Color Palettes are available on the FLIR Vue® TZ20. The user desired color palette is saved with JPG and MOV files, but not with the TIFF files. (Icon on the right depicts current color pallet being used) User may select color palette to their preference. -
Page 9: Zoom
Zoom The FLIR Vue® TZ20 is capable of 20x thermal zoom. The app allows the user to zoom in increments of 1x, 2x, 5x, 10x, and 20x. The capabilities of thermal zoom allow the user to improve situational awareness with two Fields of View (FOV). The user can maintain a wide FOV to cover a large area and quickly hone in on target of interest when necessary. -
Page 10: Settings
Settings Access the payload settings menu. SD Cards Both SD cards must be inserted to operate the unit. SD cards can be inserted using the orientation diagram on the right. Each SD card can be viewed as a storage device using the TZ20. To view the contents on the SD cards, simply plug in the TZ20 with a USB- C connector to a computer. -
Page 11: Tested Sd Cards
• Video o Video footage is recorded from both FLIR Boson® cameras simultaneously and will save as separate files. Video formats can be saved as TIFF at 10Hz or MOV at 30Hz. o Saving MOV video will also save an SRT file with the same file name. The SRT is a subtitle file format that logs video information updated every 1 second. -
Page 12: Settings
Settings The DJI pilot payload settings can be found by tapping the “…” icon on the top right of the screen then tapping the payload icon. The user can also directly access the payload setting by tapping the Payload Setting Icon in the quick menu. - Page 13 • Color Palette o See Palettes • Scene Dynamic Range o Changes the scene temperature range (gain mode) of both cameras Hot (Low gain mode): range for higher temperatures extremes, -40°C to 550°C Normal (High gain mode): range for lower temperatures extremes, -25°C to 135°C •...
-
Page 14: Specifications
FCC/CE, REACH, RoHS, WEEE Environmental Sealing IP44 IMAGING & OPTICAL Array format 2 FLIR Boson® 640 × 512 Streaming Video 640 × 512 @ 30 Hz IR Camera Optics Wide FOV: 95° HFOV, 4.9 mm EFL Narrow FOV: 18° HFOV, 24 mm EFL... -
Page 15: Warranty
Warranty The standard warranty for the Vue TZ20 UAS payload is one year from date of delivery to the customer. This covers evaluation and repair or replacement of nonconforming components. Please note that the warranty does NOT cover: • Vue TZ20 units that have been repaired or modified in any manner by anyone other than FLIR or FLIR’s authorized designee... -
Page 16: Troubleshooting
The LED will flash red when there is a fatal error in the TZ20. That includes: - Cannot boot - Cannot communicate with the FLIR Boson® camera(s). Upgrade - Purple flashing slow The LED will flash purple when the firmware upgrade process is active. -
Page 17: Firmware Upgrade/Downgrade
Firmware upgrade/downgrade Firmware upgrade procedure • Download the latest FW from FLIR website: flir.com/tz20 o Note: upgrade will occur if version number is higher than the currently installed version • Copy file onto the provided microSD card • With the TZ20 powered OFF, insert the SD card into any slot (Other SD slot can remain empty) •... -
Page 18: Usb To Boson Application
Note: FLIR Boson GUI will only display one stream at a time. To view both streams simultaneously, user would need to open a separate FLIR Boson GUI window and select each FLIR Boson under “Device... -
Page 19: Flir Support
FLIR Support If you have questions about your Vue TZ20 camera, visit the OEM support portal at flir.custhelp.com. To ask a question to a product specialist, you can open a ticket by clicking “Ask a Question” and filling out the form.
