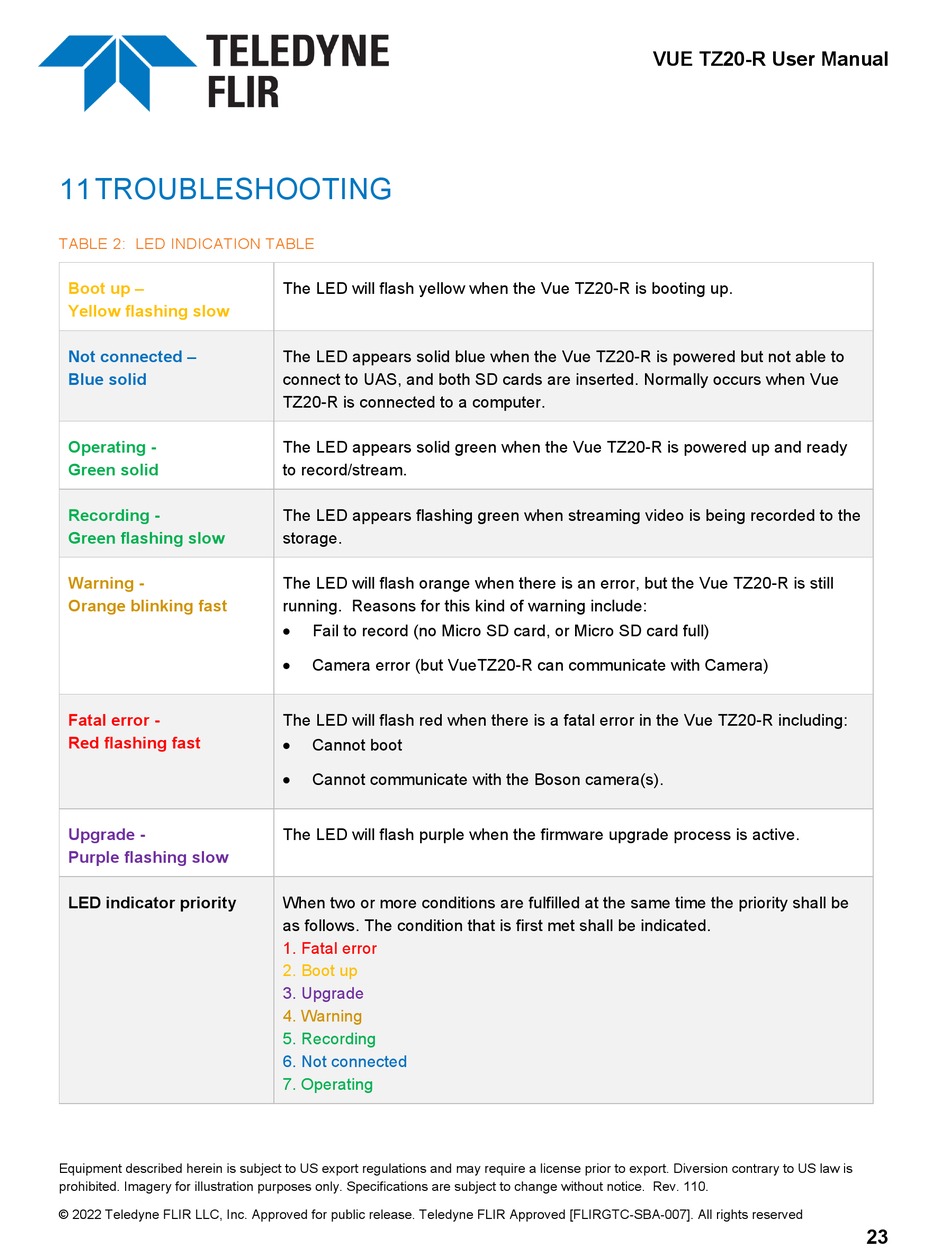

11 TROUBLESHOOTING

TABLE 2: LED INDICATION TABLE
Boot up –
Yellow flashing slow
Not connected –
Blue solid
Operating -
Green solid
Recording -
Green flashing slow
Warning -
Orange blinking fast
Fatal error -
Red flashing fast
Upgrade -
Purple flashing slow
LED indicator priority
Equipment described herein is subject to US export regulations and may require a license prior to export. Diversion contrary to US law is
prohibited. Imagery for illustration purposes only. Specifications are subject to change without notice. Rev. 110.
© 2022 Teledyne FLIR LLC, Inc. Approved for public release. Teledyne FLIR Approved [FLIRGTC-SBA-007]. All rights reserved
The LED will flash yellow when the Vue TZ20-R is booting up.
The LED appears solid blue when the Vue TZ20-R is powered but not able to
connect to UAS, and both SD cards are inserted. Normally occurs when Vue
TZ20-R is connected to a computer.
The LED appears solid green when the Vue TZ20-R is powered up and ready
to record/stream.
The LED appears flashing green when streaming video is being recorded to the
storage.
The LED will flash orange when there is an error, but the Vue TZ20-R is still
running. Reasons for this kind of warning include:

Fail to record (no Micro SD card, or Micro SD card full)

Camera error (but VueTZ20-R can communicate with Camera)
The LED will flash red when there is a fatal error in the Vue TZ20-R including:

Cannot boot

Cannot communicate with the Boson camera(s).
The LED will flash purple when the firmware upgrade process is active.
When two or more conditions are fulfilled at the same time the priority shall be
as follows. The condition that is first met shall be indicated.
1. Fatal error
2. Boot up
3. Upgrade
4. Warning
5. Recording
6. Not connected
7. Operating
