FLIR Vue Quick Start Manual

QUICK START GUIDE
This quick start guide will help show how easy it is to get the plug-and-play
FLIR Vue connected, running, and mounted. The FLIR Vue does not have
an on or off switch. When power is applied the splash screen appears in
about one second and IR video is shown in less than four seconds.
WHAT'S IN THE BOX?
FLIR Vue comes with the following components:
• FLIR Vue thermal camera
• Bench Cable—for connecting FLIR Vue to a computer with the FLIR
Camera Controller GUI software and to a video monitor for testing and
configuring camera options.
Connect to
Video Monitor
Connect to
Computer USB port

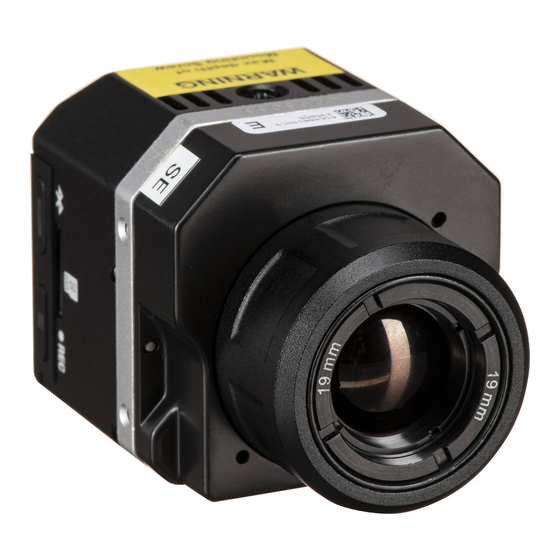

A QUICK TOUR
¼-20 Threaded
Mounting Hole
M2X0. threaded mounting holes on
the camera's left side, right side, and
bottom (mounting screws not included)
CONNECTING AND POWERING THE FLIR Vue
FLIR Vue is compatible with common 10-pin mini-USB cables that are
used to provide power to, and get video from, action cameras commonly
mounted on a small unmanned aerial system (sUAS). Refer to the camera
Interface Description Document (IDD)
A couple of examples are shown below.
A number of vendors sell cables that are compatible with video transmitters
from ImmersionRC, a brand of transmitter which supplies the 5Vdc power
the FLIR Vue needs. Connect the ImmersionRC video transmitter per the
manufacturer's instructions.
436-0002-12, Rev 100
Camera Body
Lens Barrel
Lens
located on the FLIR web page.
10-pin mini-USB plug
Pin 2 – 5Vdc power in
Pin 5 – Video GND
Pin 7 – Video Out
Pin 10 – ground
Pin 2
Pin 5
Pin 7
Pin 10
Camera Mount 10-pin mini-USB
connector
ImmersionRC cable:
White – not used
Yellow – Video Out
Black – ground
Red – 5Vdc power in
Connect to
FLIR Vue
