Home BeON
Home BeON is an optional device that optimises the charge. Analysing the total current
consumption in residential facilities, Home BeON manages the remaining current for the Charge
Point, avoiding any tripping on the Main Circuit. Please, note that this accessory is only available
for single phase Charge Points.
BeON is connected downstream of the main power switch and upstream of the main loads.
The BeON shall be connected to the port BOR1, on the PCB of the Charge Point.
(1)
(1) - Location of the BOR1 in the eNext Charge Point.
(2) - Location of the BOR1 in the eNext Elite Charge Point.
For further information, please refer to the eNext User Manual and Home BeON manual.

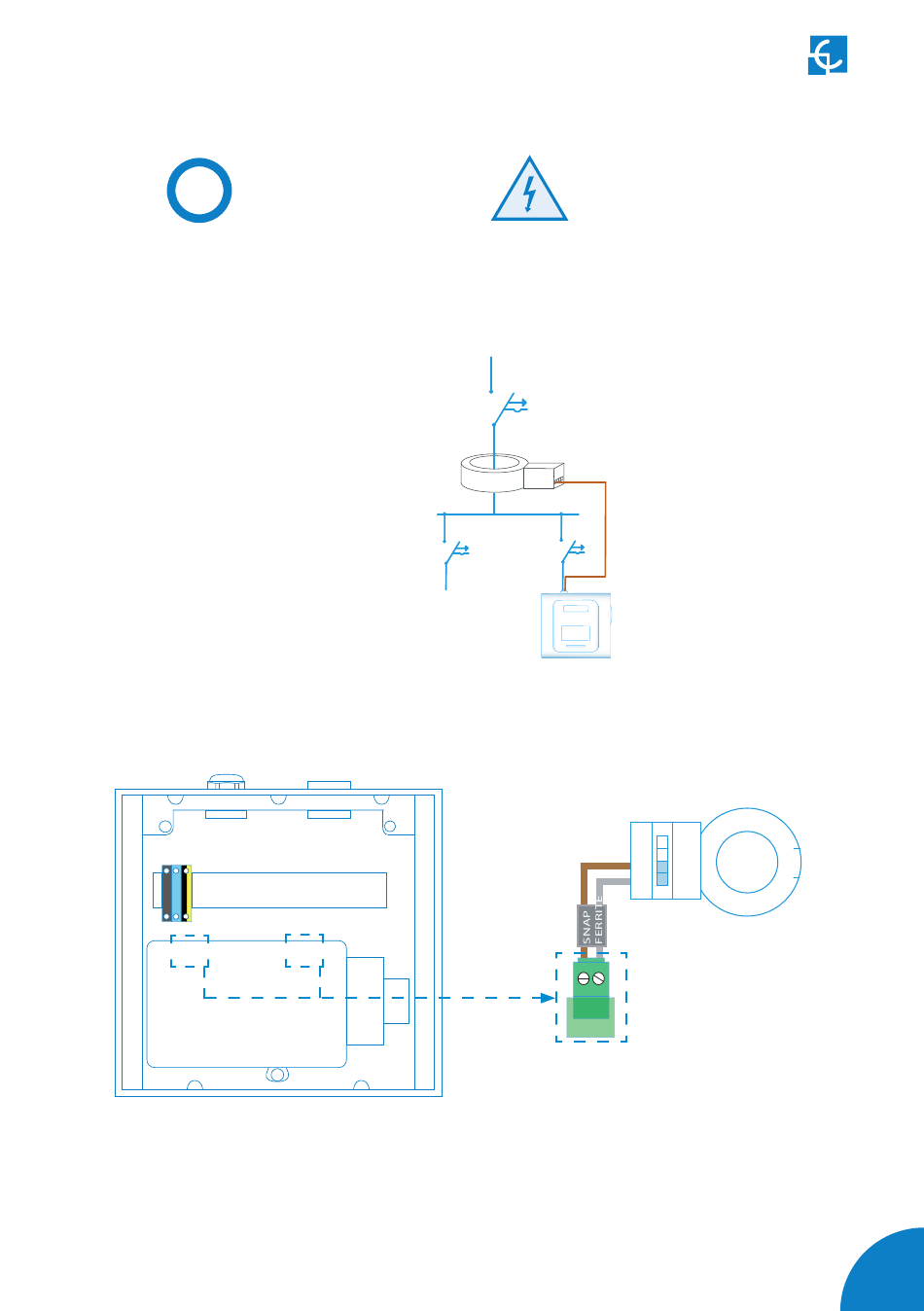

MCCB
Home BeON
MCB
Other
consumption
devices
(2)
Signal cable has to be braided and do two
loops into the snap ferrite. And the snap
ferrite
Point, as close to the PCB as possible.
MCB
1S1
A(-) 1S2
(-)
2S1
2S2
(+)
B(+)
BOR1
shall remain inside the Charge
