Circontrol Wallbox eNext Series Installation Manual page 22

Wallbox eNext Series Installation Manual
The three possible schemes are shown below:

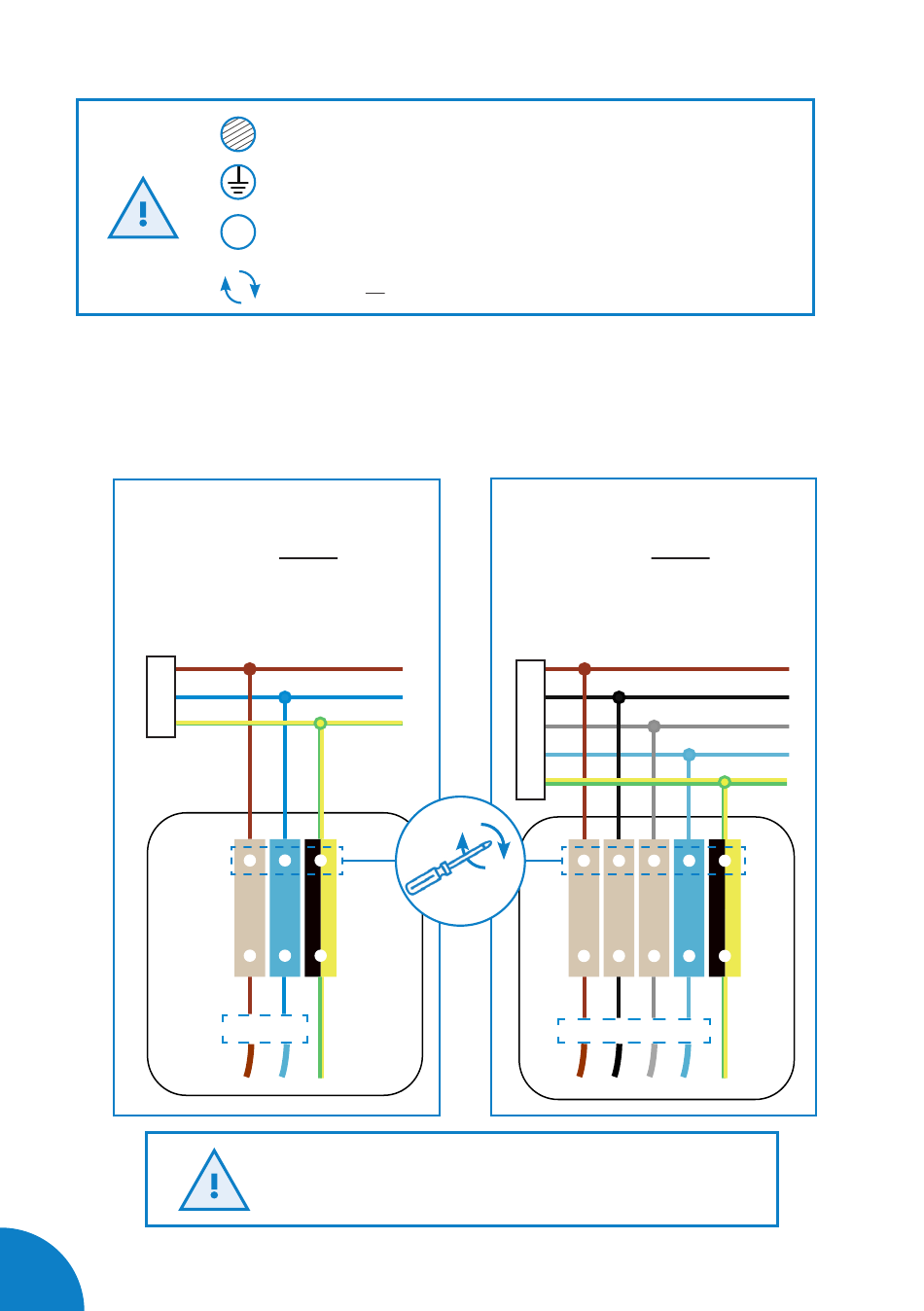

1. W I R I N G D I AG R A M W I T H I N T E R N A L E L E C T R I C P R O T E C T I O N S :
SINGLE-PHASE Charge Point
Connect to the 230VAC.
•
L
N
PE
18
S
Terminal block maximum cross-section: 10mm
Do not forget to connect the ground cable to the ground
terminal block
Type of cable allowed by the terminal block: Copper
Cu
Make sure all screws are securely tightened at 1,5 Nm
Protections
In case that the installation needs protections upstream,
we highly recommend the option 2A in order to have
feedback in case of welded contact or DC leakage.
2
THREE-PHASE Charge Point
Connect to the 400VAC.
•
• If the Power Supply is Single-
Phase, connect L1 and N.
L1
L2
L3
N
PE
Protections
