Quick Start: How to Connect to the NetGuardian AAR
Most NetGuardian AAR users find it easiest to give the unit an IP address, subnet and gateway through the front
craft port (TTY interface) to start. Once these settings are saved and you reboot the unit, you can access it over LAN
to do the rest of your databasing via the Web Browser interface.
Alternative option: You can skip the TTY interface by using a LAN crossover cable directly from your PC to the
NetGuardian AAR and access its Web Browser.
7.1
...via Craft Port (using TTY Interface)

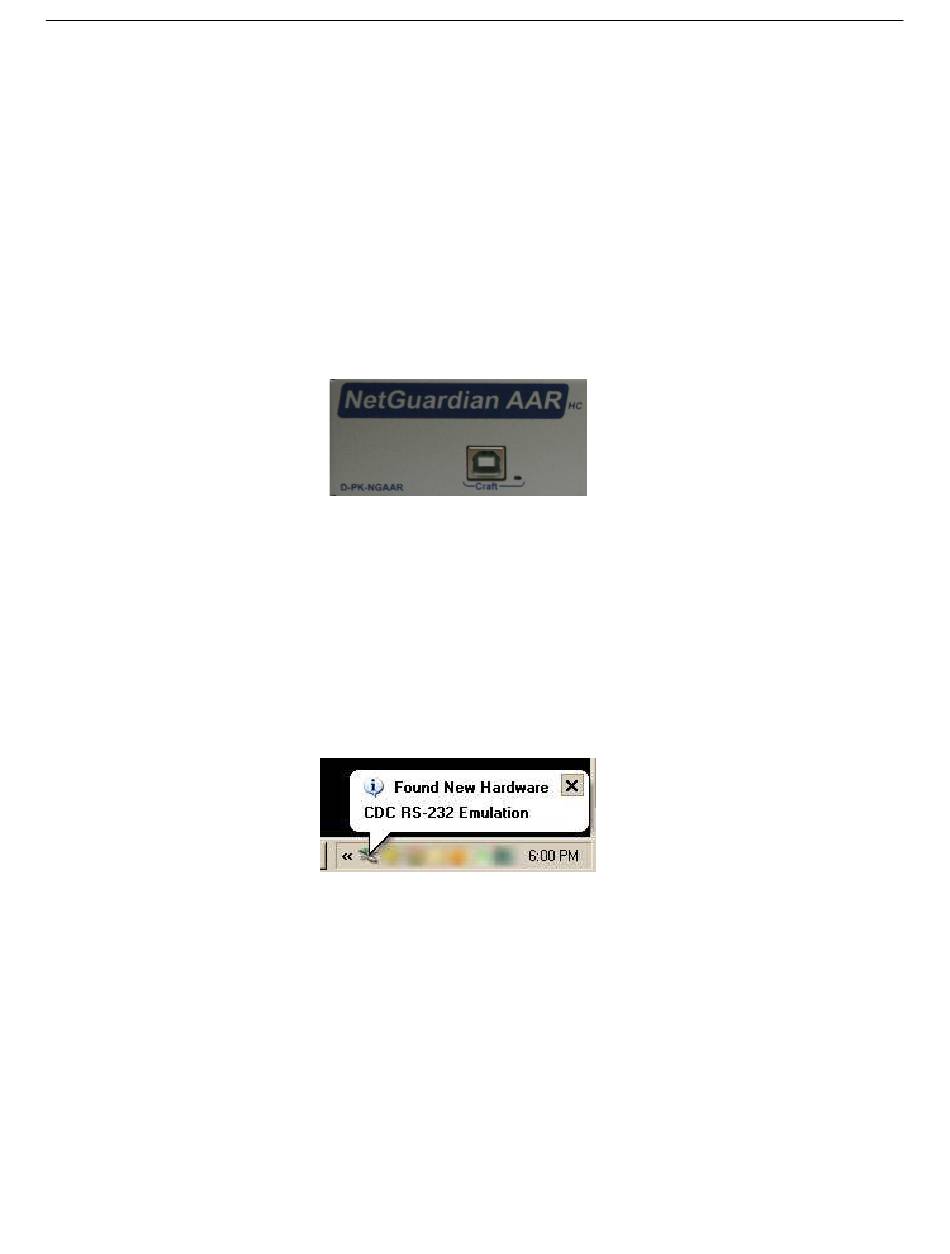

Use the front panel craft port to connect the NetGuardian AAR to a PC for onsite unit configuration. To
use the craft port, connect the included USB download cable from your PC's USB port to the craft port.
Note: The following images display the setup process done in Windows XP.
The following steps will occur the first time any DPS USB equipment is used on this PC. If you've used a
different DPS USB device before and have installed the DPS USB drivers, then skip to Step 9.
When you first connect the NetGuardian AAR to your PC via USB, a "Found New Hardware" message will
appear:
1. Click the "Found New Hardware" message/icon to launch the "Found New Hardware Wizard".
NetGuardian AAR Craft Port
