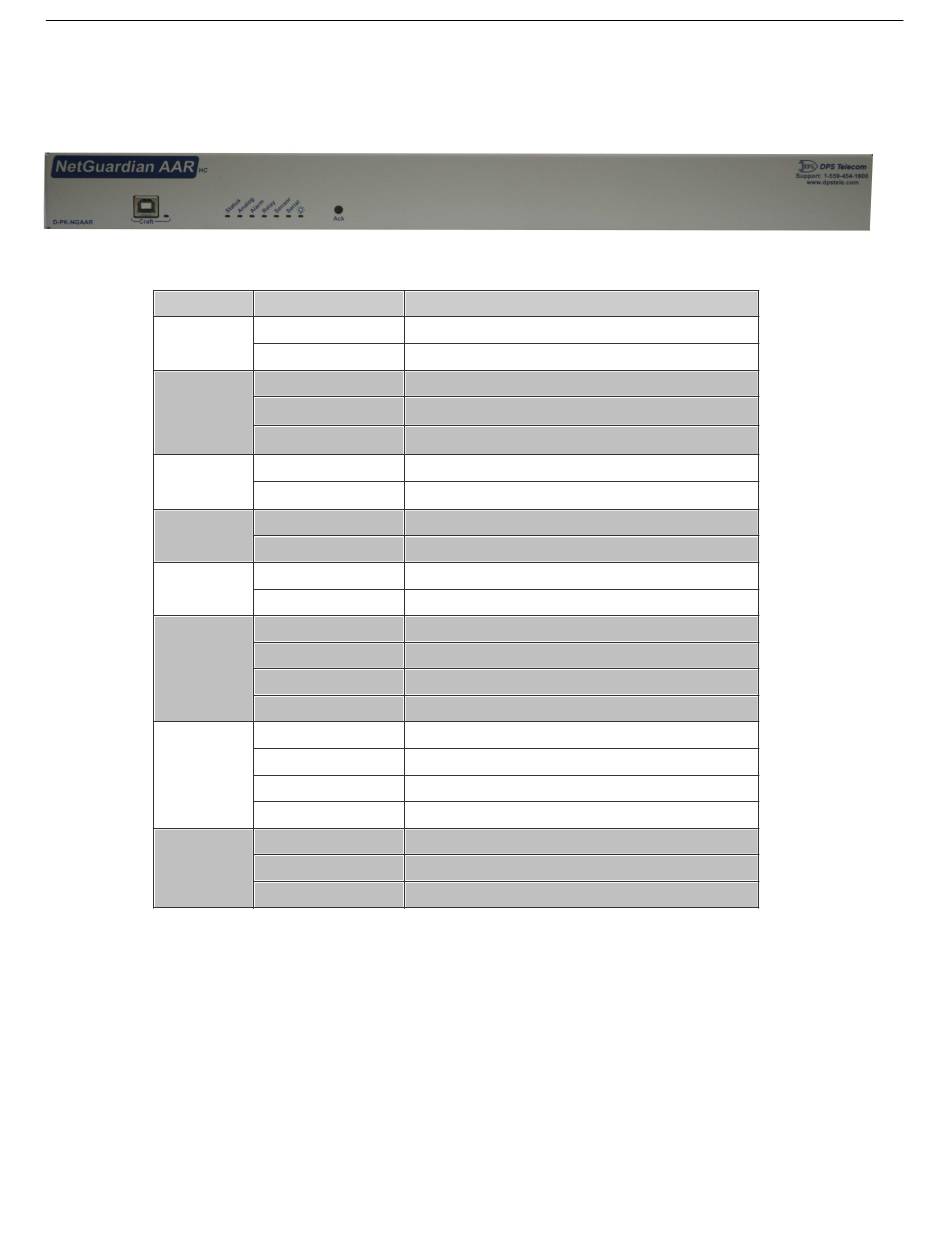

NetGuardian AAR Front Panel

LED
Status
Alarm
Serial
Power
(Lamp)
Craft
Sensor
Analog
Relay
NetGuardian AAR Front Panel
Status
Flashing Green Application Running
Flashing Red Bootloader Running
Flashing Red New Alarm
Solid Red Standing Alarm Acknowledged via DCP poll
Off No Alarms
Flashing Green Data Transmitted on Serial Connection
Flashing Red Data Received on Serial Connection
Solid Green Processor has power
Off Processor does not have power
Flashing Green Data Transmitted over USB
Flashing Red Data Received over USB
Solid Green At least 1 dwire enabled, no alarm
Flashing Green Standing acknowledged alarm (Threshold)
Flashing Red New Alarm
Off No D-Wire Alarms
Solid Green Analogs enabled, no alarm
Solid Red Standing acknowledged alarm (Threshold)
Flashing Red New Alarm
Off No Analogs enabled
Solid Green 1 or more relays latched
Flashing Green New relay latched or released
Off All relay off
Front Panel LED Descriptions
Description
