The Logic 1 output is set to Virtual Event 1.

•

The Event A in Logic 2 is Virtual Event 1.

This gives a total of five events that can be used in this logic sequence (A + B + C in Logic 1 and B + C in Logic 2).

3.4.2

Set/reset function

If you use a single digital input to select AUTO/MANUAL, you need a SET/RESET function, since two digital inputs are normally

required for this.

In the following example, digital input 55 is used to switch between AUTO (input ON) and MANUAL (input OFF).

•

First line: If input 55 = ON and AUTO = OFF (NOT Auto operation mode), then set AUTO mode command.

•

Second line: If input 55 = OFF and MANUAL = OFF (NOT Manual operation), then set MANUAL mode command.

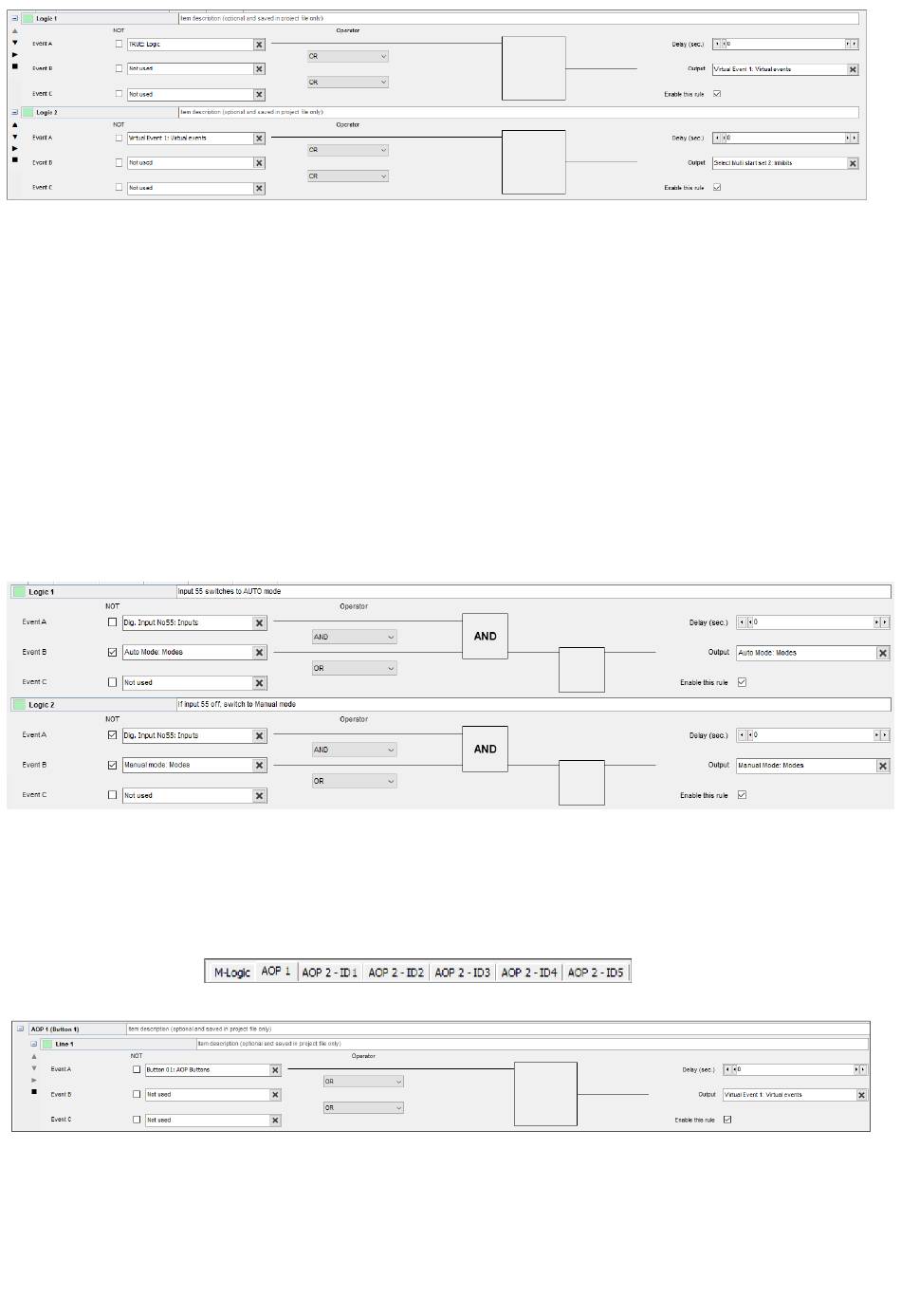

In M-Logic, it looks like this:

3.4.3

In this example, button 1 on a connected AOP (Additional Operator Panel) is used to activate Virtual Event 1. In the line AOP 1 (LED

1) is Virtual Event 1 configured to activate red LED 01 on the AOP to red blink.

Select an AOP with the tabs

Configure an AOP button to Virtual Event 1 output as shown:

Configure line 1 in AOP 1 (LED 1) as shown:

Application note 4189341276B EN
