JUMPER TO SELECT THE ACTIVE AXIS

7.0

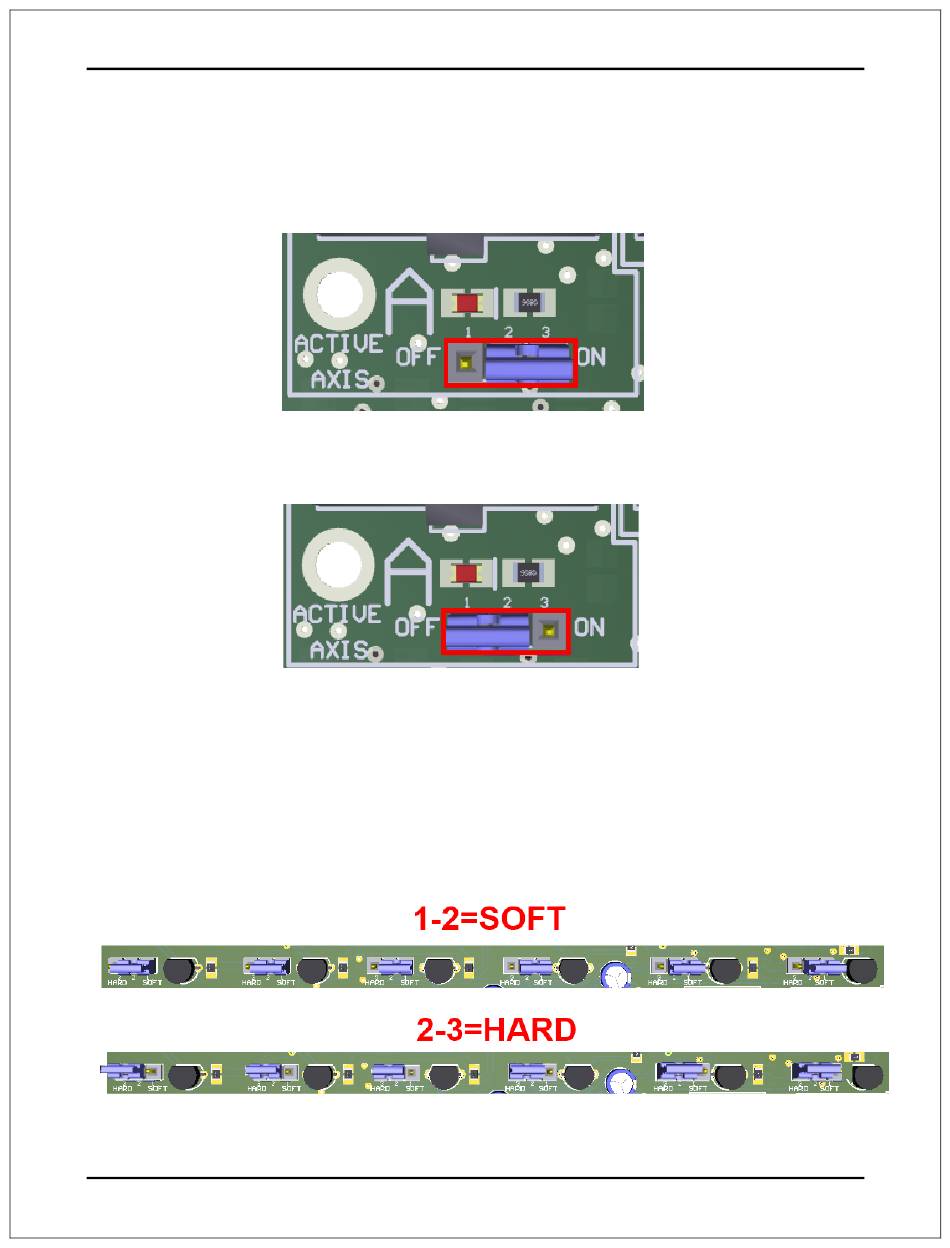

Set of jumpers as shown in the image
Set of jumpers as shown in the image
OFF
Set the jumper to ON for connected axis and off if no drivers are connected.
Note:

JUMPER TO SELECT THE ENABLE

8.0
Use Software Enable to keep the driver active only while the system is active. Set of
jumpers as shown in the image
Use Hardware Enable to keep the driver enabled all the time.
User's Manual
2-3: ON
1-2:
.
