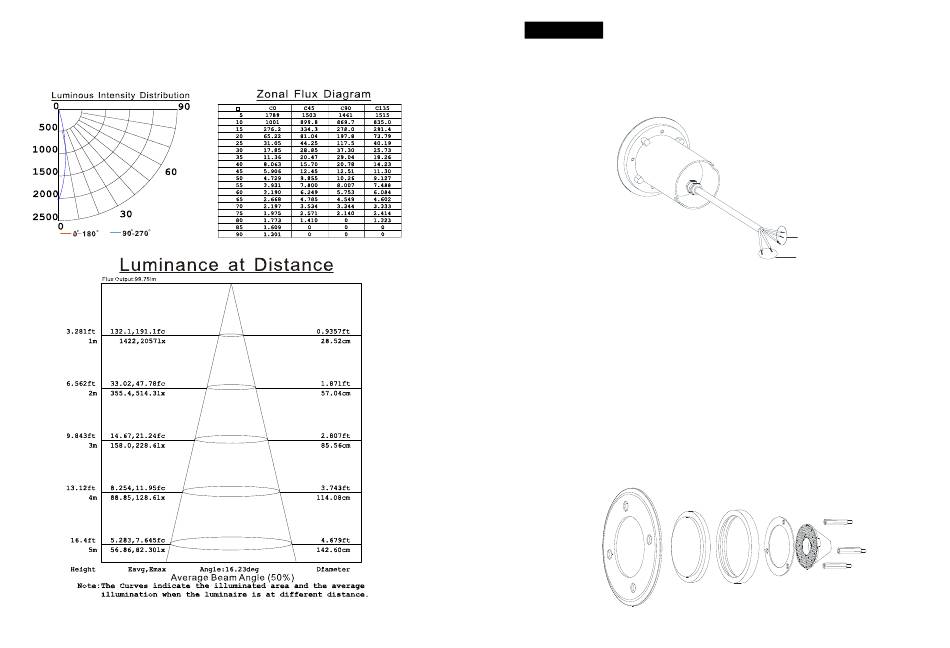

Lumens: 263.372lm

Efficacy: 13.30lm/W

Beam Angle: 20°

4. Installation

4.1 Before install the fixture, please ensure the power is off.

4.1.1 Choose the appropriate location and secure the embedded fittings (plastic sleeve) to the

location, then connect power cable and signal line, finally place the aluminum barrel into it.

4.1.2 Run power cable and DMX signal line to junction box (sold separately), there are two colors

red and black for power cable, red cable is positive, black cable is grounding. Three colors red,

white and black for signal line, red line is (+), white line is (‐) and black line is grounding.

4.1.3 Connect wires to the mains power or signal cables through wire nuts or wiring terminal per

code instruction. For damp or wet locations, use an IP rated junction box, per manufacturer's

instructions.

4.2 Change Beam Angle

If you want to change beam angle of fixture, you can change lens of the fixture refer to the photo

below:

Completed by qualified technician only.

Signal line

Power cable
