Awning Installation

1. On the awning rail, mark the position of the centerlines of the support arm assemblies. Make sure that
the support arm assemblies will not interfere with any lights, vents or other obstructions.
2.
Using a non-permanent method of marking, mark a perpendicular line from the awning rail down to
the floor line. This is the centerline of the support arm assembly (Fig. 2).
Awning
Rail
Support Arm
Centerline
3. Insert the drive head assembly shaft into the end cap (Fig. 3).
A. Align the holes and secure with waxed screw.
B. Repeat process for idler head assembly at opposite end of roll tube.
NOTE: Keep the head of the wax screw
integrity of the wax screw.
Rev: 10.24.19

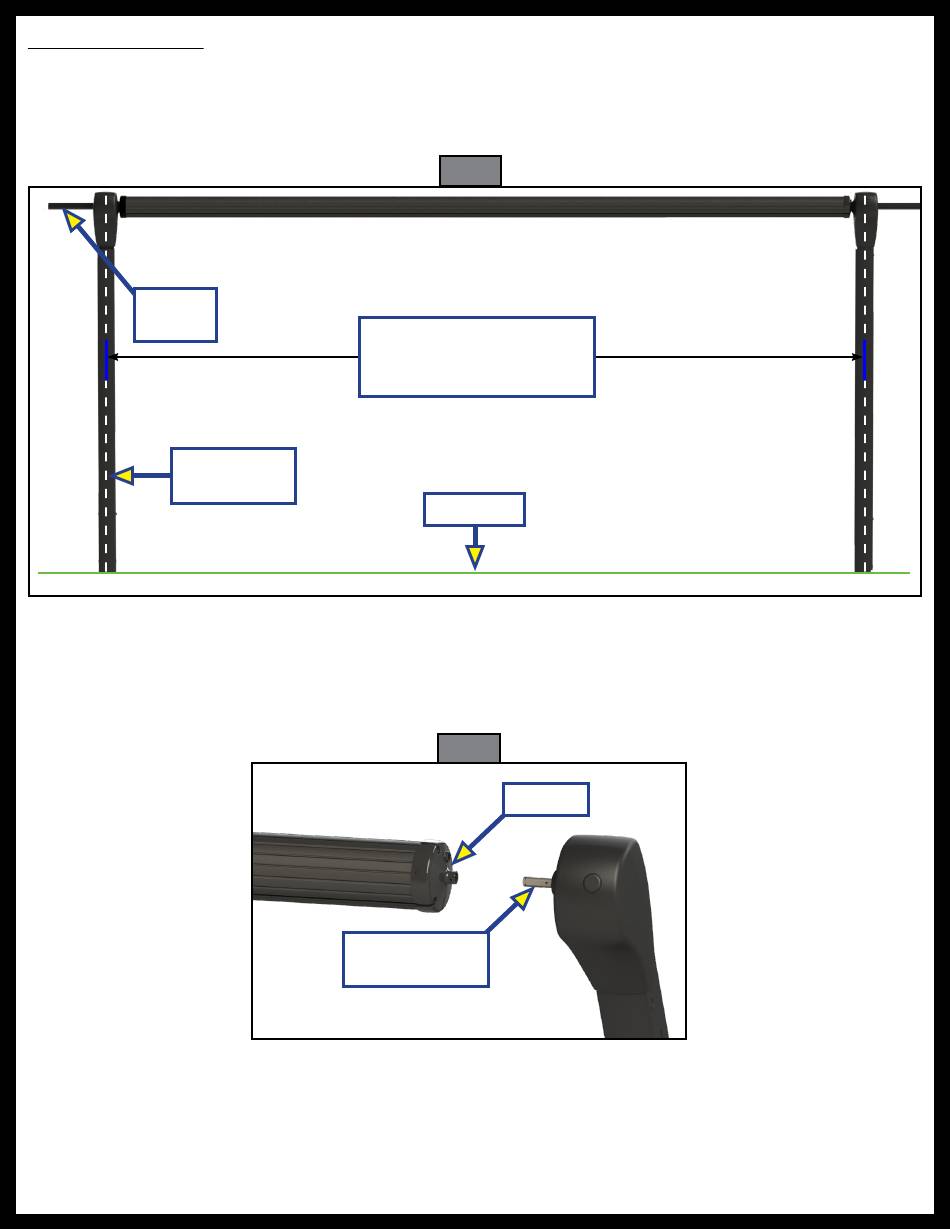

Fig. 2
Awning Width is from
Centerline to Centerline of
Support Arm Assemblies
Floor Line
1/8
" from being fully fastened to avoid compromising the structural
Fig. 3
End Cap
Drive Head
Assembly Shaft
