Innolight Sliding
Electric Step
Installation and Owner's Manual
(For Aftermarket Applications)
Innolight Sliding
Electric Step
Installation and
Owner's Manual
(For Aftermarket Applications)
2
Part #
Part #
Description
Description
2
856-847-0-ZF00 Step 10856/550R
3
856-859-0-ZF00 Step 10856/700R
3
Other kits available based on dimension of steps
3
6
7
8
8
9
9
10
10
10
11
1
Sliding Electric Step
Sliding Electric Step
CCD-0002550
Rev: 11.18.19
Advertisement
Table of Contents
Related Manuals for Lippert Components Innolight Sliding
Summary of Contents for Lippert Components Innolight Sliding
-
Page 1: Table Of Contents
Innolight Sliding Electric Step Installation and Owner’s Manual (For Aftermarket Applications) Innolight Sliding Electric Step Installation and Owner’s Manual (For Aftermarket Applications) Table of Contents Sliding Electric Step Sliding Electric Step Introduction Part # Part # Description Description .......... -
Page 2: Introduction

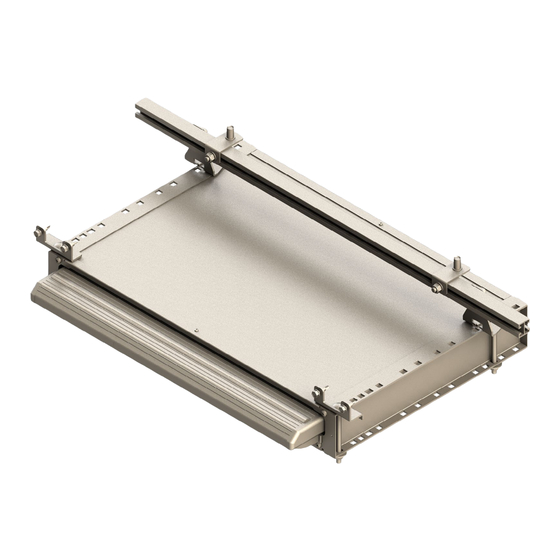

(For Aftermarket Applications) Introduction Safety The Innolight sliding electric step is built with 80 percent Read and fully understand all instructions before installing plastic parts and 20 percent steel and aluminum. The or operating this product. Adhere to all safety labels. This step is durable, resistant to corrosion and lightweight. -
Page 3: Parts List
Innolight Sliding Electric Step Installation and Owner’s Manual (For Aftermarket Applications) Parts List Resources Required Letter Description 033-08100 = UNI 5732 Round head • Tool to install threaded • Appropriate drive bits square neck bolt inserts 856-205-D-ZF00 Front bracket 7/32 •... - Page 4 Innolight Sliding Electric Step Installation and Owner’s Manual (For Aftermarket Applications) 4. Install the front brackets using the long bolts, washers and nuts. Insert bolts into the third hole from the front or another hole location depending on application. Tighten to ENSURE THAT THE UNIT IS PROPERLY SUPPORTED 4 Nm (3 ft-lbs) (Fig.2).
- Page 5 Innolight Sliding Electric Step Installation and Owner’s Manual (For Aftermarket Applications) 7. Repeat for other insert. 11. Use the front brackets to determine the locations for 7/32 ”) pilot holes for the front bracket (Fig.6). drilling 5 mm ( 8. Install the pre-assembled aluminum rear channel onto the chassis with the hex head flange screws tightened into the inserts (Fig.4).
-
Page 6: Operation
Innolight Sliding Electric Step Installation and Owner’s Manual (For Aftermarket Applications) Operation 13. Use the 6.3 mm x 25 mm ( ” x 1”) hexagonal head self-threading screws to attach the front bracket to the chassis (Fig.8). DO NOT WALK ON THE STEP UNTIL IT IS COMPLETELY STOPPED. -
Page 7: Wiring Diagram
Innolight Sliding Electric Step Installation and Owner’s Manual (For Aftermarket Applications) Wiring Diagram +12V DC Common Button (+12V) Command adjustment screw EXIT Command RETURN Command EXIT Command RETURN "B" connector "A" connector Common Button (+12V) "B" "A" Step Open: Light on when the "A"... -
Page 8: Wiring Diagram
Innolight Sliding Electric Step Installation and Owner’s Manual (For Aftermarket Applications) Wiring Diagram For Automatic Opening/Closing Kit lci1.com 574-537-8900 CCD-0002550 Rev: 11.18.19... - Page 9 Innolight Sliding Electric Step Installation and Owner’s Manual (For Aftermarket Applications) Wiring Diagram For Automatic Opening/Closing Kit (Continued) lci1.com 574-537-8900 CCD-0002550 Rev: 11.18.19...
-
Page 10: Troubleshooting
Innolight Sliding Electric Step Installation and Owner’s Manual (For Aftermarket Applications) Troubleshooting Maintenance Emergency Operation 1. Make sure unit is parked on a stable, level surface. The sliding electric single step is equipped with a manual 2. Make sure power to the unit is turned off and/or activation option. -
Page 11: Notes
Innolight Sliding Electric Step Installation and Owner’s Manual (For Aftermarket Applications) Notes lci1.com 574-537-8900 CCD-0002550 Rev: 11.18.19... - Page 12 (For Aftermarket Applications) Notes Manual information may be distributed as a complete document only, unless Lippert Components provides explicit consent to distribute individual parts. All manual information is subject to change without notice. Revised editions will be available for free download at lippertcomponents.eu/support/.
