Bed lift support leg and bracket
Hide thumbs Also See for HAPPIJAC:
1
2
3
4
5
6

Advertisement

Table of Contents

HAPPIJAC

Purpose

The purpose of this document is to provide instructions on:

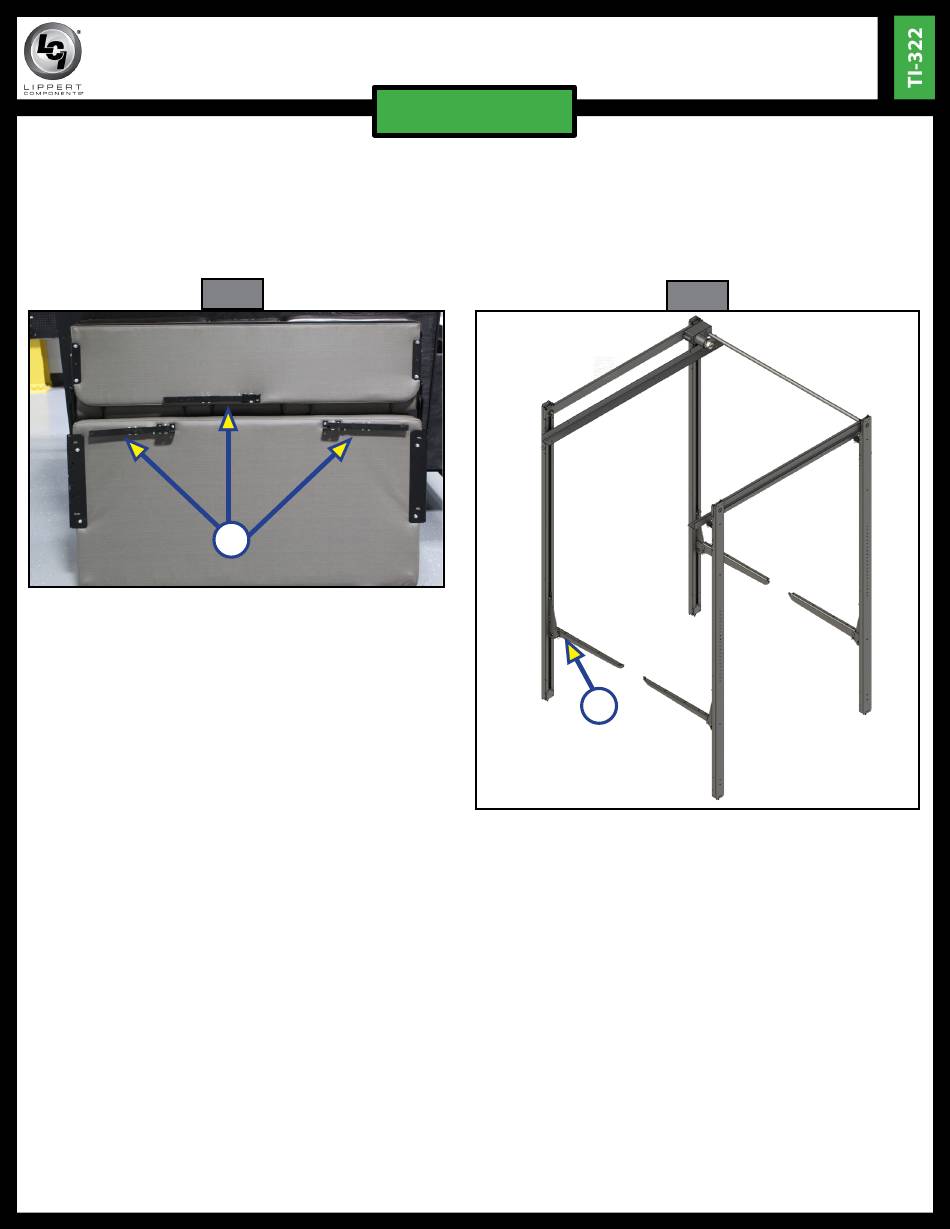

• the installation of support legs (Fig. 1) on the sofa unit attached to the HappiJac Bedlift.
• the removal and installation of the HappiJac Bedlift support brackets (Fig. 2).

Resources Required

• Cordless or electric drill or screw gun
• Appropriate drive bit
• Non-permanent marking method
• Sharp cutting instrument
1/4
• 1
" self-tapping screws
Rev: 07.15.19
BED LIFT SUPPORT LEG AND BRACKET INSTALLATION
®
POWER AND MOTION
Fig. 1
A
A
Page 1
Fig. 2
CCD-0002704
