Installation of the Awning Rail

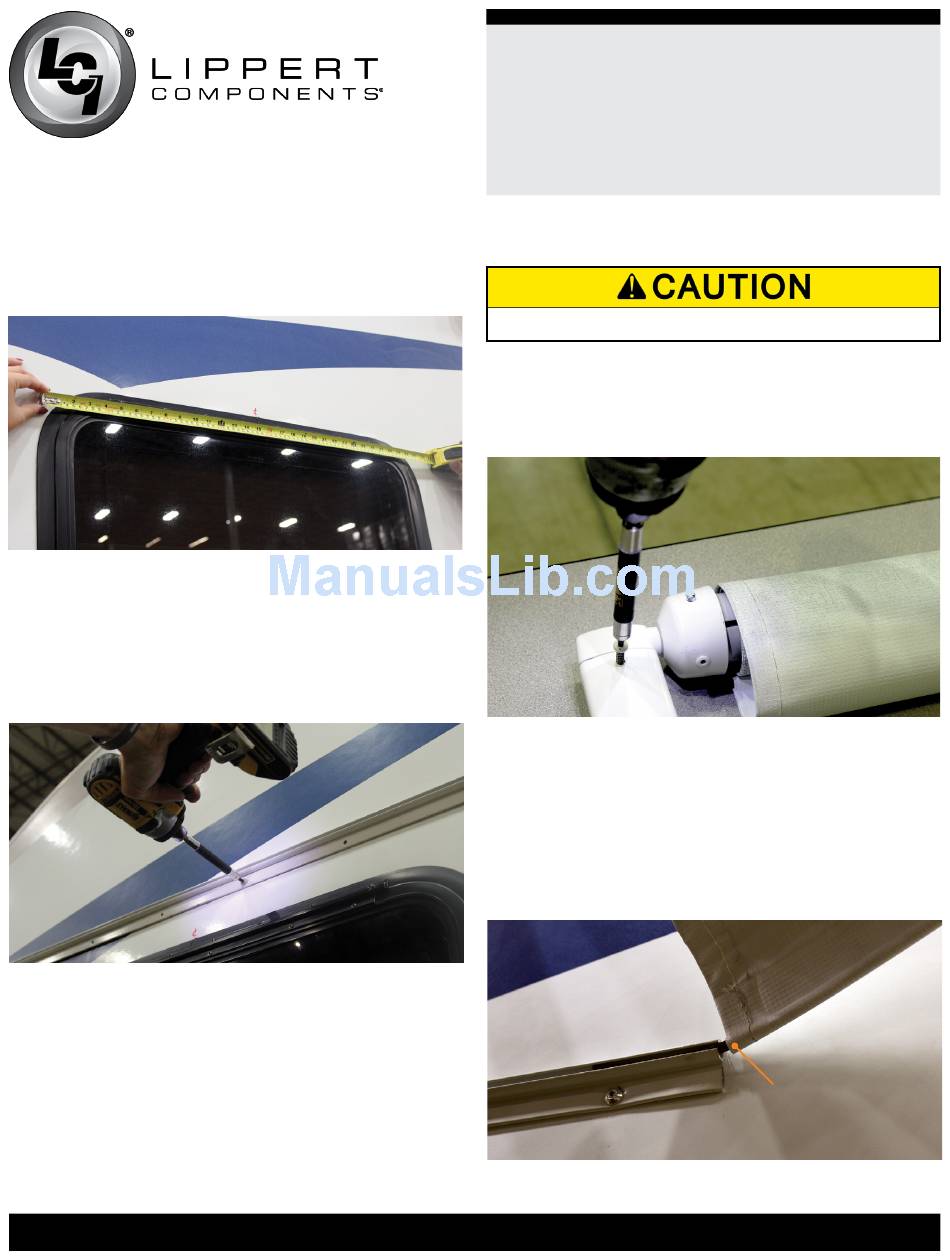

1. Mark the center of the window and the center of the
awning rail (Fig.1).
Fig.1
2. Position and center the awning rail approximately 3"
above the top of the window frame.
3. Apply a sealant behind the awning rail before securing
the awning rail with #8 - 18 x 1" self-drilling fasteners or
3/16
" molly rivets (Fig.2).
Fig.2
lci1.com 574-537-8900
Solera
®
Window Awning
Installation and Owner's Manual
(For Aftermarket Application)

Hanging the Window Awning

DO NOT REMOVE THE COTTER PINS AT THIS TIME.
1. Attach the support arm to the spring head assembly
and secure together with one #10 - 12 x 1" fastener (Fig.3).
Both arms are identical and can be used interchangeably.
Repeat for the other end.
Fig.3
2. Unroll one full roll of the fabric to slide the polycord
into the awning rail. If too much fabric is unrolled before
releasing the tension, there will not be enough tension to
sufficiently retract the awning after use.
3. Insert the polycord into the channel in the awning rail
(Fig.4) and center the fabric with the awning rail.
Fig.4
3
CCD-0001283
polycord in
awning rail channel
Rev: 03.30.18
