Wiring Diagram - Lippert Components Edge Installation Manual

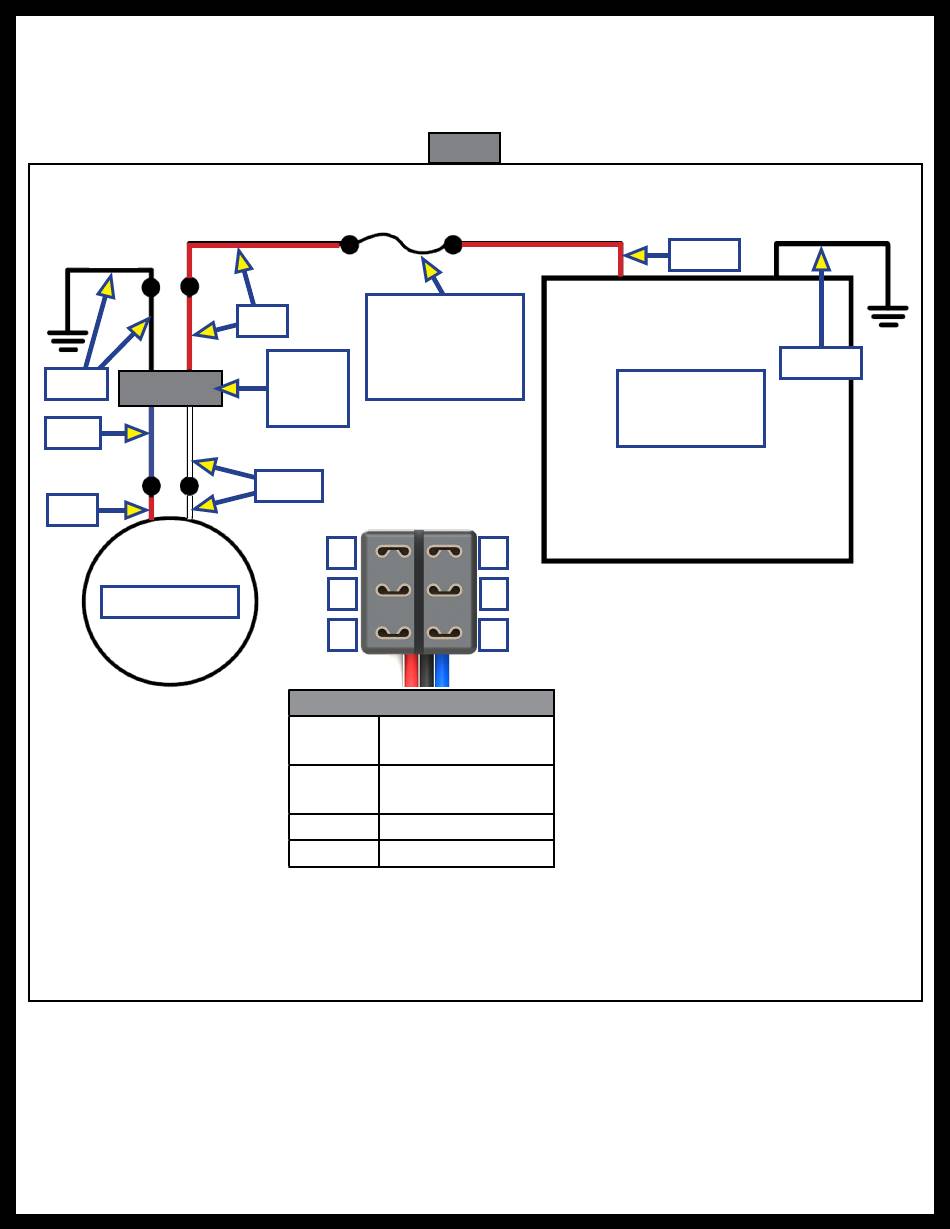

Wiring Diagram

*Wire colors may vary depending on what switch is used.
Wire colors shown reference using a LCI Rocker Switch.
Black
Blue
Red
Awning Motor
Rev: 10.24.19
15A Auto-Reset
Red
Circuit Protector
per RVIA Code
Manual
(OEM Supplied)
Rocker
Switch*
White
1
2
3
End View of Wiring Harness
**Jumper wire
Red
**Jumper wire 4
Black
White
Blue
**Jumper wires are internal
Fig. 11
+
4
5
6
1 to 6
to 3
2
5
Page 9
Power
-
Ground
12V DC Battery,
Power Source
or Converter
CCD-0002685
