- Page 1 Edge Awning OEM INSTALLATION MANUAL ™...
-
Page 2: Table Of Contents

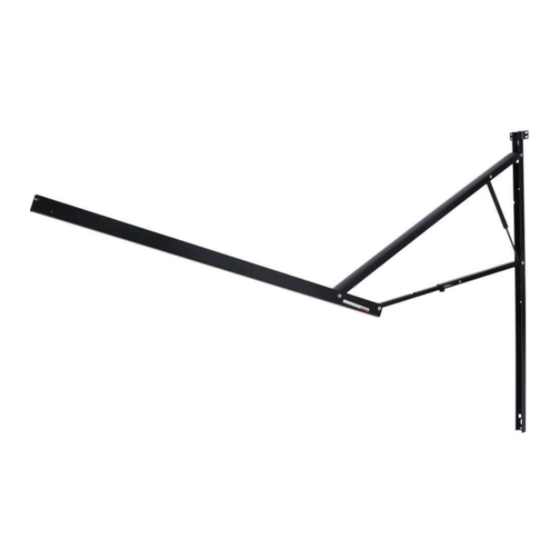

Awning Wiring Wiring Diagram Introduction The Edge™ Awning features an internal motor to steadily operate the awning. The awning can come equipped with optional Serenity LED lights. Safety The manual provides general instructions. Many variables can change the circumstances of the instructions, i.e., the degree of difficulty, operation and ability of the individual performing the instructions. -
Page 3: Prior To Installation
Prior to Installation All screws supporting the awning assembly must have a backer within the structure of the wall of the unit. Refer to the unit's manufacturer for proper location of backer material. Resources Required • 2 -3 People, depending on task •... -
Page 4: Awning Installation
Awning Installation On the awning rail, mark the position of the centerlines of the support arm assemblies. Make sure that the support arm assemblies will not interfere with any lights, vents or other obstructions. Using a non-permanent method of marking, mark a perpendicular line from the awning rail down to the floor line. - Page 5 Use a screwdriver to spread open either end of the awning rail channel (Fig. 4A). To protect the fabric from damage during installation, file any sharp edges or burrs from the awning rail channel (Fig. 4B). Use silicone lubricant and spray the inside of the awning rail channel (Fig. 4B). Fig.
-
Page 6: Securing The Fabric
Extend and retract the awning several times to make sure the fabric is square on the roll tube. Secure the fabric in the awning rail no more than 1” inside the edge of the fabric on both ends using a #6 x ”... -
Page 7: Solera Serenity Led Lights Installation - Optional
The Solera Serenity LED Lights (Fig. 9A) come pre-installed on specifically-fitted support arms. Installation also requires the proper fabric with an LED wire welded into the fabric at the base. The Edge Awning with Serenity must be installed prior to wiring the Solera Serenity LED lights. -
Page 8: Awning Wiring
Awning Wiring The Edge Awning motors come stock with an internal 6A auto-reset breaker. If this breaker trips, it will take approximately 30 seconds to reset. LCI recommends the awning be wired with a 15A auto-reset circuit protector. If the circuit protector trips, it will take approximately 30 seconds to reset. All wire shall be 14 AWG or higher as necessary to provide 11.5V minimum at all times to the LCI-supplied power cable... -
Page 9: Wiring Diagram
Wiring Diagram *Wire colors may vary depending on what switch is used. Wire colors shown reference using a LCI Rocker Switch. Fig. 11 Power 15A Auto-Reset Circuit Protector per RVIA Code Ground Manual (OEM Supplied) Black 12V DC Battery, Rocker Power Source Switch* or Converter... - Page 10 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. ...
