- Page 1 Tire Linc Tire Pressure & Temperature ® Monitoring System 2.0 OWNER'S MANUAL...
-
Page 2: Table Of Contents

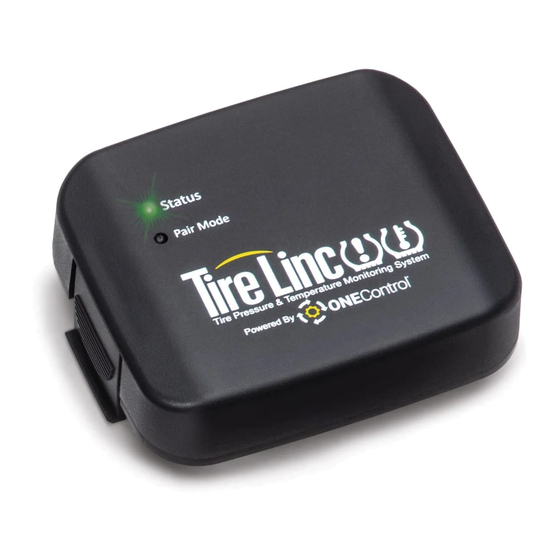

Learn Sensors Procedure Resets System Introduction Tire Linc® is a tire pressure and temperature monitoring system (TPMS). The TPMS issues an alert via the OneControl® app or the Alert Indicator when a trailer’s tire(s) pressure or temperature falls out of the programmable range. - Page 3 Fig. 1 Callout Description Stem Sensor Tool; separate into top and bottom parts Stem Sensors; quantity of Stem Sensors will depend on unit Alert Indicator; battery powered but can be charged via USB Micro B connector Repeater Lock Nut Wrench; tool to install lock nuts for optional theft deterrent Fastener Strips;...
-
Page 4: Safety
Safety Read and understand all instructions before installing or operating this product. Adhere to all safety labels. This manual provides general instructions. Many variables can change the circumstances of the instructions, e.g., the degree of difficulty, operation and ability of the individual performing the instructions. This manual cannot begin to plot out instructions for every possibility, but provides the general instructions, as necessary, for effectively interfacing with the device, product or system. - Page 5 II. Two beeps will sound off and the LED will blink green twice. Continue to hold the button. III. After the indicator beeps three times, release the button. The LED will blink green three times. B. The Alert Indicator’s LED will briefly blink blue and emit a "happy tone," indicating it has been linked to the Repeater.
-
Page 6: Connect Onecontrol App To Repeater
Connect OneControl App to Repeater Download the LCI OneControl app (Fig. 4) for either an iOS or Android smart phone. Fig. 4 After the LCI OneControl app has been downloaded, tap the OneControl icon (Fig. 5A) to launch the app. Fig. 5 App Store is a trademark of Apple Inc. - Page 7 Follow the app’s installation prompts to configure the OneControl app. NOTE: Optionally, press the Pair Mode button (Fig. 2D) on the Repeater and look for TireLinc in the app’s listing. Press the Settings button (Fig. 6A) at the bottom of the OneControl page. Fig.
- Page 8 Select the “Add an accessory” button (Fig. 7A). When the “scan for devices” window appears, look for TireLinc in the list. Select the one with the lowest RSSI value (Fig. 8A). For instance: A. -60 is greater than -70; select -60 because it is the number closest to zero. B.
-
Page 9: Stem Sensor Pairing Sequence
Stem Sensor Pairing Sequence The pairing sequence for Stem Sensors (Fig. 11) is as follows: SINGLE AXLE: Stem Sensors for a single axle trailer MUST be paired in the following order: Left front (Fig.12A) and right front (Fig.12D). DOUBLE AXLE: Stem Sensors for a double axle trailer MUST be paired in the following order: Left front (Fig.12A), left rear (Fig.12B), right front (Fig.12D) and right rear (Fig.12E). - Page 10 Press the FINISHED button (Fig.16A) to exit TIRE PRESSURE Sensor Configuration mode. Pressing FINISHED exits configuration mode and redisplays the Tire Pressure screen. DO NOT press the LEARN SENSORS button. Doing so resets Tire Linc into configuration mode, which requires uninstalling the Stem Sensors.
-
Page 11: Pairing Stem Sensors To Repeater Via Alert Indicator
Pairing Stem Sensors to Repeater Via Alert Indicator NOTE: Use this procedure If Stem Sensors have not previously been paired using a smart phone or if a smart phone is not available. Use the Alert Indicator to pair the Stem Sensors (Fig. 11) to the Repeater. A. -
Page 12: Operation
Operation When Stem Sensors are under pressure, data is transmitted to the repeater, when tires are: • moving/rotating, every one minute; • not moving/not rotating, every 15 minutes. Alert Indicator The Alert Indicator will continually scan for tire events from the repeater when it is plugged into a USB cable connected to a powered USB port. - Page 13 B. The app will automatically detect the Tire Linc system. NOTE: If necessary, follow the online prompts to set up Tire Linc within the OneControl app. NOTE: If unable to download the OneControl app, or when not running the app, the Alert Indicator is provided to send simple audio and visual alerts of a tire pressure or temperature event.
-
Page 14: Tire Limits Example
Tire Limits Example Programmable tire limits have a “next” arrow (>) that, when tapped, opens that feature’s scrollable window of available settings. Scroll through the limits window to find the desired setting, select it, then tap the “back” arrow (<) located above the tire’s name at the top of the window’s heading. The following example illustrates the interaction between the various tire settings and how the resulting information is relayed by the monitoring system for display in the app. -
Page 15: Troubleshooting
If system is not working, check the in-line fuse to the dock to ensure the dock has power. Learn Sensors Procedure Resets System DO NOT press the LEARN SENSORS button. Doing so resets Tire Linc into configuration mode, which requires uninstalling the stem sensors. - Page 16 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (LCI). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. ...
