Prior to Installation

All screws supporting the awning assembly must have a backer within the structure of the wall of the unit.
Refer to the unit's manufacturer for proper location of backer material.

Resources Required

• 2 -3 People, depending on task
• Cordless or electric drill or screw gun
• Appropriate drive bits
• Rivet gun (if needed)
• Screwdriver
1/2
• #6 x
" hex head screws

Installation

Awning Rail Installation (If Needed)

NOTE: Awning rail not included.
1.
Position the awning rail along the line where the roof and wall meet or:
A. For pitched awnings, a minimum of 6" above doors or windows
B. For flat awnings, a minimum of 4" above doors or windows
NOTE: The awning rail MUST be level and parallel with the floor line of the unit (Fig. 1).
Awning
Rail
Support Arm
Assembly
2.
After determining the awning rail's proper location, mark its position with a non-permanent method of marking.
3.
Seal the back of the awning rail with silicone sealant or tape.
4.
Align the awning rail on the wall and secure with #10 x
Rev: 10.24.19
3/4
• #10 x
• #14 x 1
• Wire cutters/strippers
• Non-permanent method of marking
• Silicone sealant or tape
• Silicone lubricant

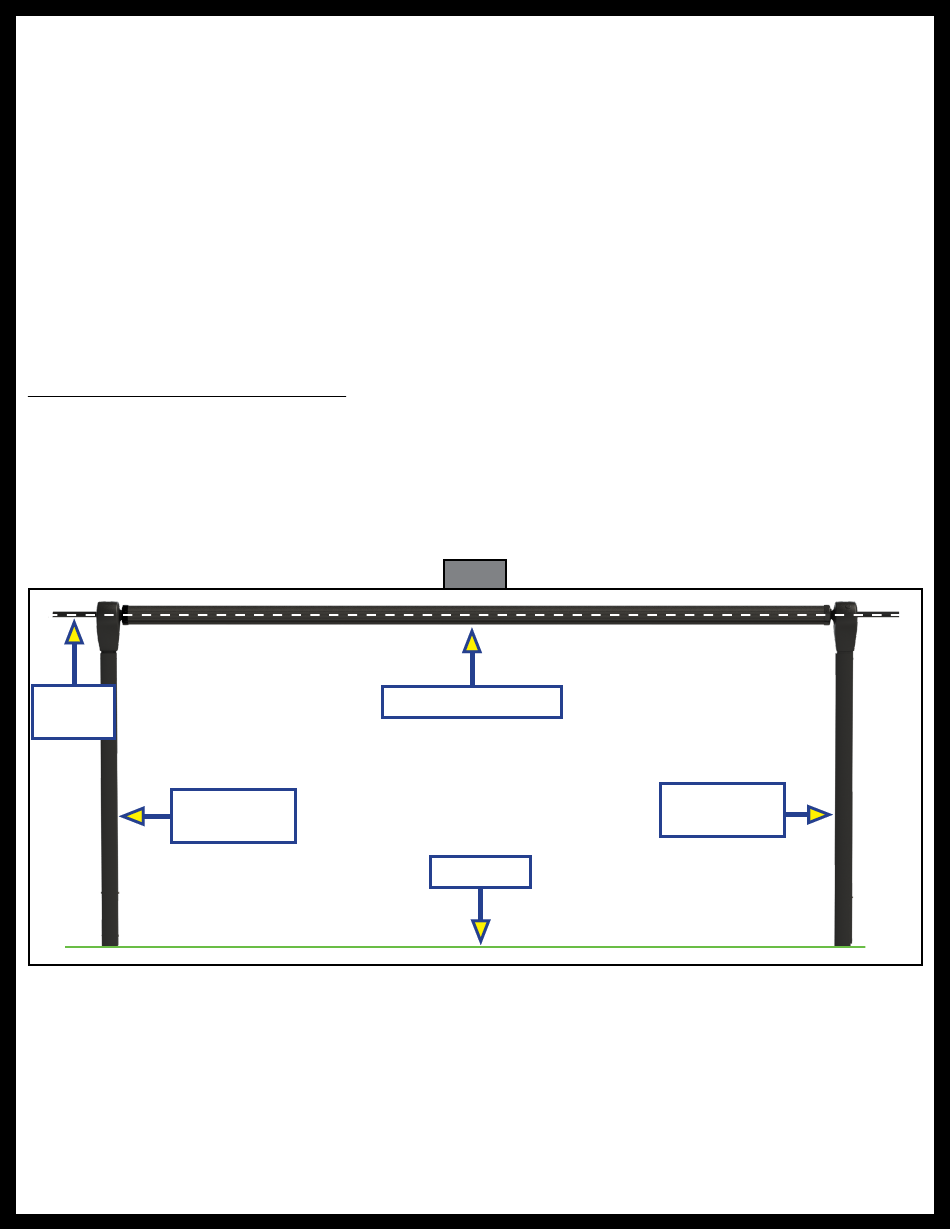

Fig. 1
Roll Tube Assembly
Floor Line
3/4
" screws, using all fastener holes.
Page 3
" screws
1/4
" screws
Support Arm
Assembly
CCD-0002685
