Lippert Components Edge Installation Manual page 5

4.

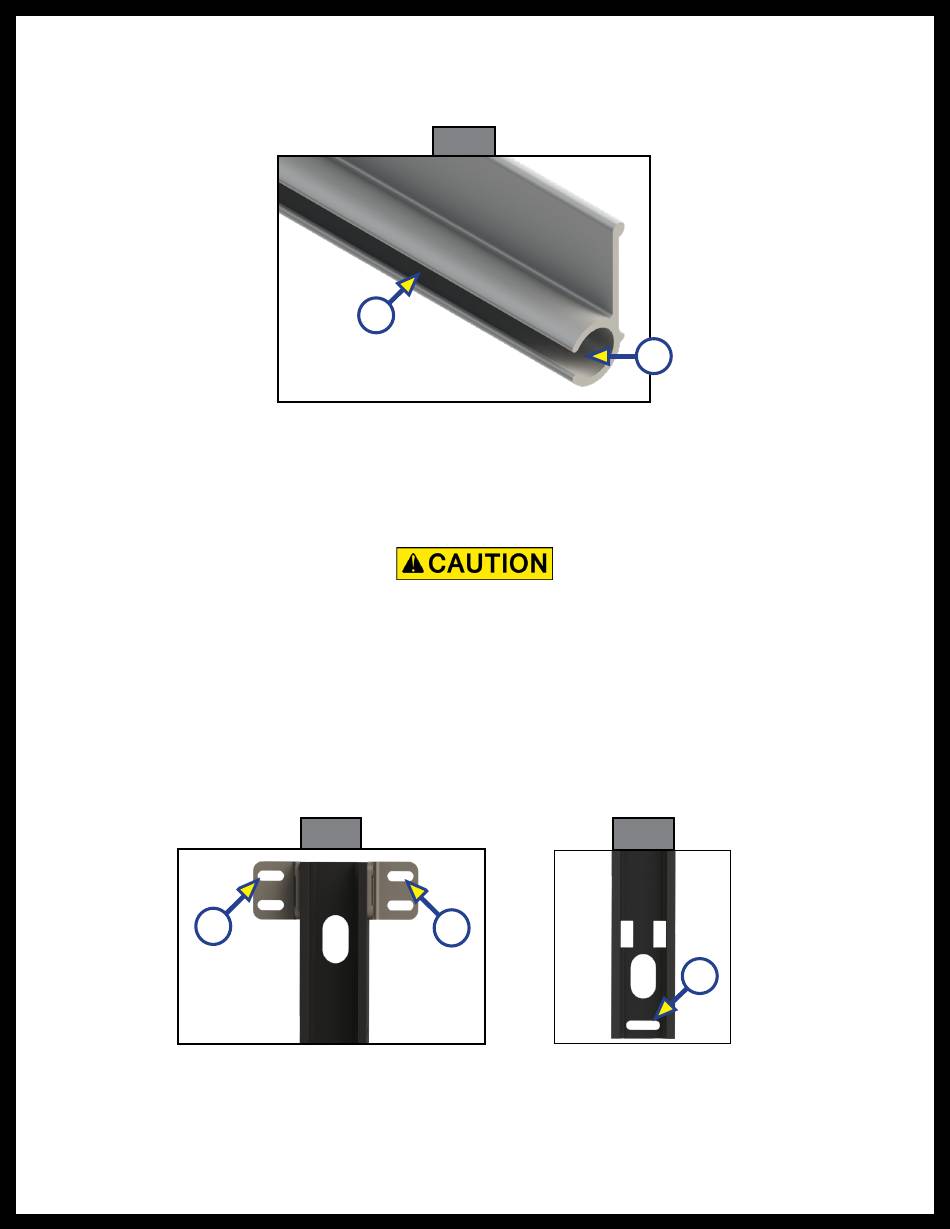

Use a screwdriver to spread open either end of the awning rail channel (Fig. 4A).
5.
To protect the fabric from damage during installation, file any sharp edges or burrs from the awning
rail channel (Fig. 4B).
6.
Use silicone lubricant and spray the inside of the awning rail channel (Fig. 4B).
7.
Remove the tape from the fabric. Unroll a small portion of fabric.
NOTE: The next steps will require three people: One to feed the polycord into the awning rail channel; two
to walk the support arm assemblies along the awning rail while the fabric slides into position.
8.
Slide the polycord into the awning rail channel and walk the support arm assemblies and fabric down
the awning rail channel until the support arm assemblies are in line with the centerline marks.
Failure to mount the support arm assembly tight to the underside of the awning rail will result in failure of
9.
Lift the support arm assembly up against the bottom of the awning rail and attach it to the side of the
unit with two #14 x 1 1/4" screws at the top (Fig. 5A) and one screw at the bottom (Fig. 6A).
NOTE: Make sure the awning assembly is square on the unit prior to mounting the bottom screw.
NOTE: Three rivets with
laminated walls.
10. Repeat step 9 for the other side.
A
Rev: 10.24.19
B
the awning to close properly.
3/16
" grip range can be used in place of the two middle and one lower screws for
Fig. 5
Fig. 4
A
Page 5
A
Fig. 6
A
CCD-0002685
