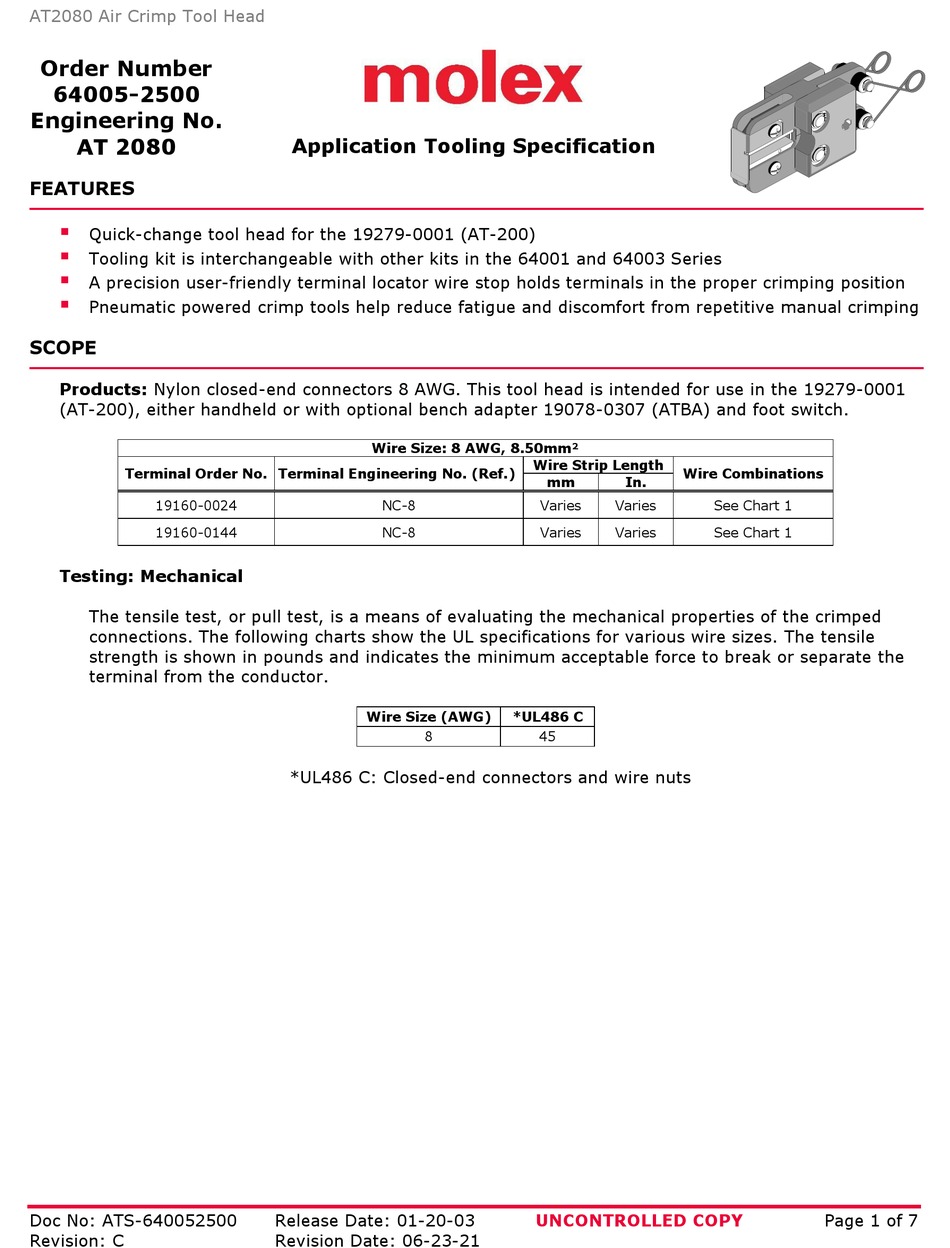

molex AT 2080 Application Tooling Specification

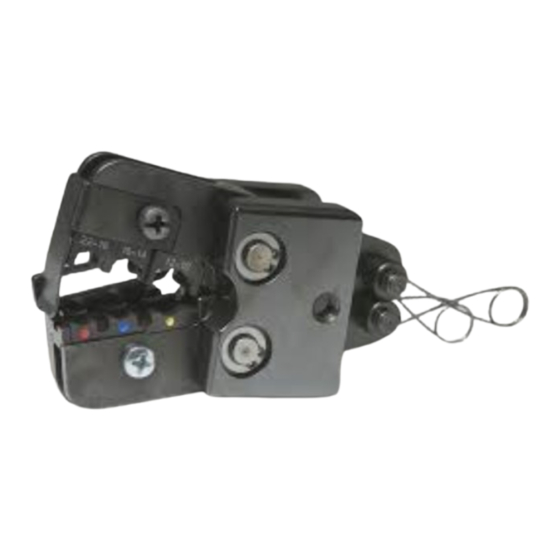

AT2080 Air Crimp Tool Head
Order Number
64005-2500
Engineering No.
AT 2080
FEATURES

Quick-change tool head for the 19279-0001 (AT-200)

Tooling kit is interchangeable with other kits in the 64001 and 64003 Series

A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position

Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping
SCOPE
Products: Nylon closed-end connectors 8 AWG. This tool head is intended for use in the 19279-0001
(AT-200), either handheld or with optional bench adapter 19078-0307 (ATBA) and foot switch.
Terminal Order No. Terminal Engineering No. (Ref.)
19160-0024
19160-0144
Testing: Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped
connections. The following charts show the UL specifications for various wire sizes. The tensile
strength is shown in pounds and indicates the minimum acceptable force to break or separate the
terminal from the conductor.
Doc No: ATS-640052500
Revision: C
Application Tooling Specification
Wire Size: 8 AWG, 8.50mm²
NC-8
NC-8
Wire Size (AWG)
8
*UL486 C: Closed-end connectors and wire nuts
Release Date: 01-20-03
Revision Date: 06-23-21
Wire Strip Length
Wire Combinations
mm In.
Varies Varies
Varies Varies
*UL486 C
45
UNCONTROLLED COPY
See Chart 1
See Chart 1
Page 1 of 7
