molex AT 1992 Specification Sheet

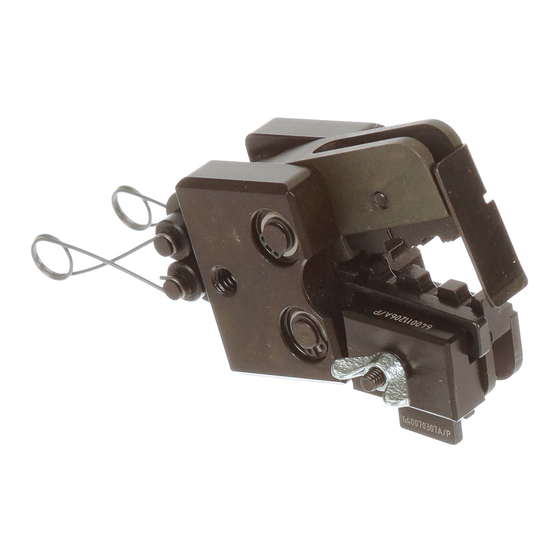

Air powered crimp tool head krimptite and versakrimp
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AT-1992 Hand Crimp Tool
Air Powered
Crimp Tool Head
Krimptite    and
VersaKrimp   
FEATURES
Quick-change tool head for the 19279-0001 (AT-200)
Tooling kit is interchangeable with other kits in the 64001 and 64003 Series
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position for each of the
three nests
3-nested tool eliminates the need for additional tools
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping
SCOPE
Products: Krimptite / VersaKrimp Terminals and Splices 10–22 AWG and 6.0mm² - 0.5mm². This tool head is
intended for use in the 19279-0001 (AT-200) either hand held or with optional bench adapter 19078-0307 (ATBA)
and foot switch.
Testing
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections. The
following chart shows the various specifications for different wire sizes and types. The tensile strength is shown
in lbs (newtons) and indicates the minimum acceptable force to break or separate the terminal from the
conductor.
AWG
Doc No:ATS-640070100
Revision: J
Application Tooling
Specification Sheet
Wire Size
mm²
*UL - 486 A
*UL – 486 C
22
8 (36)
0,5
20
13 (58)
0,75
18
20 (89)
1,0
16
30 (134)
1,5
14
50 (223)
25 (111)
2,5
12
70 (312)
35 (156)
4,0
10
80 (356)
40 (178)
6,0
*UL - 486 A - Terminals (Copper conductors)
*UL - 486 C - Butt Splices, Parallel Splices
**Military Class 2– Military Approved Terminals
EN 60352 -2 – Telecom and signal cables
EN 61238 -1 – Power Cables
Release Date: 10-03-02
Revision Date: 08-08-13
Minimum Tensile Strength (lbs. (newtons))
**Military Class 2
8 (36)
15 (67)
10 (45)
19 (85)
10 (45)
38 (169)
15 (67)
50 (223)
70 (312)
110 (490)
150 (668)
UNCONTROLLED COPY
Order No. 64007-0100
Engineering No. AT 1992
EN 60352-2
EN 61238-1
14 (60)
11 (50)
19 (85)
17 (74)
24 (108)
22 (99)
34 (150)
33 (149)
52 (230)
56 (248)
70 (310)
89 (397)
81 (360)
100 (446)
Page 1 of 15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT 1992 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex AT 1992

Summary of Contents for molex AT 1992

  • Page 1 Application Tooling VersaKrimp    Specification Sheet Order No. 64007-0100 Engineering No. AT 1992 FEATURES Quick-change tool head for the 19279-0001 (AT-200) Tooling kit is interchangeable with other kits in the 64001 and 64003 Series A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position for each of the...
  • Page 2 The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to this list and an up to date copy is available on www.molex.com Wire Size: 18 – 22 AWG 0.80 – 0.35 mm²...
  • Page 3 AT-1992 Hand Crimp Tool Wire Size: 18 – 22 AWG 0.80 – 0.35 mm² Wire Size: 18 – 22 AWG 0.80 – 0.35 mm² Wire Strip Length Wire Strip Length Terminal Eng No. Terminal Eng No. Terminal No. Terminal No. (REF) (REF) 19088-0006...
  • Page 4 AT-1992 Hand Crimp Tool Wire Size: 18 – 22 AWG 0.80 – 0.35 mm² Wire Size: 18 – 22 AWG 0.80 – 0.35 mm² Wire Strip Length Wire Strip Length Terminal Eng No. Terminal Eng No. Terminal No. Terminal No. (REF) (REF) 19128-0013...
  • Page 5 AT-1992 Hand Crimp Tool Wire Size: 18 – 22 AWG 0.80 – 0.35 mm² Wire Size: 14 – 16 AWG 2.00 – 1.30 mm² Wire Strip Length Wire Strip Length Terminal Eng No. Terminal Eng No. Terminal No. Terminal No. (REF) (REF) 19193-0044...
  • Page 6 AT-1992 Hand Crimp Tool Wire Size: 14 – 16 AWG 2.00 – 1.30 mm² Wire Size: 14 – 16 AWG 2.00 – 1.30 mm² Wire Strip Length Wire Strip Length Terminal Eng No. Terminal Eng No. Terminal No. Terminal No. (REF) (REF) 19079-0007...
  • Page 7 AT-1992 Hand Crimp Tool Wire Size: 14 – 16 AWG 2.00 – 1.30 mm² Wire Size: 14 – 16 AWG 2.00 – 1.30 mm² Wire Strip Length Wire Strip Length Terminal Eng No. Terminal Eng No. Terminal No. Terminal No. (REF) (REF) 19123-0028...
  • Page 8 AT-1992 Hand Crimp Tool Wire Size: 14 – 16 AWG 2.00 – 1.30 mm² Wire Size: 14 – 16 AWG 2.00 – 1.30 mm² Wire Strip Length Wire Strip Length Terminal Eng No. Terminal Eng No. Terminal No. Terminal No. (REF) (REF) 19147-0074...
  • Page 9 AT-1992 Hand Crimp Tool HEAVY DUTY Wire Size: 10 – 12 AWG 5.00 – 3.00 mm² Wire Size: 14 – 16 AWG 2.00 – 1.30 mm² Wire Strip Length Terminal Eng No. Terminal No. Also suitable for (REF) 12 AWG 3.00 mm² Use 10-12 Pocket (YELLOW) 19069-0238 C-140-14 0.281...
  • Page 10 AT-1992 Hand Crimp Tool Wire Size: 10 – 12 AWG 5.00 – 3.00 mm² Wire Size: 10 – 12 AWG 5.00 – 3.00 mm² Wire Strip Length Wire Strip Length Terminal Eng No. Terminal Eng No. Terminal No. Terminal No. (REF) (REF) 19178-0014...

  • Page 11: Operation

    AT-1992 Hand Crimp Tool JAWS OPEN Operation SAFETY Refer to the instruction manual for the 19279- SHIELD 0001 (AT-200) for mounting this crimp tool head. FRONT EDGE OF BARREL Crimping Terminals LOCATOR 1. Adjust the locator up or down until the PUSH UP TO terminal being run sits flat and straight in the TERMINAL...

  • Page 12: Maintenance

    Should such a defect occur, we would repair or exchange the tool free of charge. This repair or exchange will not be applicable to altered, misused or damaged tools. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. UNCONTROLLED COPY...

  • Page 13: Parts List

    AT-1992 Hand Crimp Tool PARTS LIST Item Order No Description Quantity 64007-0100 Crimp Tool Head Figure 7 64005-0000 Basic Air Tool Head 64007-0375 Locator Assembly 64003-0170 Tooling Kit Tooling Kit Only 64001-0102 Conductor Anvil 64001-0101 Conductor Punch M4 WING NUT M4 FLAT WASHER Figure 7 UNCONTROLLED COPY...
  • Page 14 AT-1992 Hand Crimp Tool Parts List (Continued) Item Order No. Description Quantity 64005-0000 Basic Air Tool Head Figure 8 64005-0103 Nose Guard 64000-0077 Repair Kit (Springs, Rods Pivots ,Rings, and Washers) M4 by 12 Long Freedrive Pan Head Screw M4 by 30 Long Freedrive Pan Head Screw 3/16”...

  • Page 15: Certificate Of Calibration

    Technician -------------------- Date of Calibration -------------------- Calibration should be done every 5,000 cycles or 3 months. Tools should be lubricated during this operation. Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No:ATS-640070100 Release Date: 10-03-02 Page 15 of 15...
