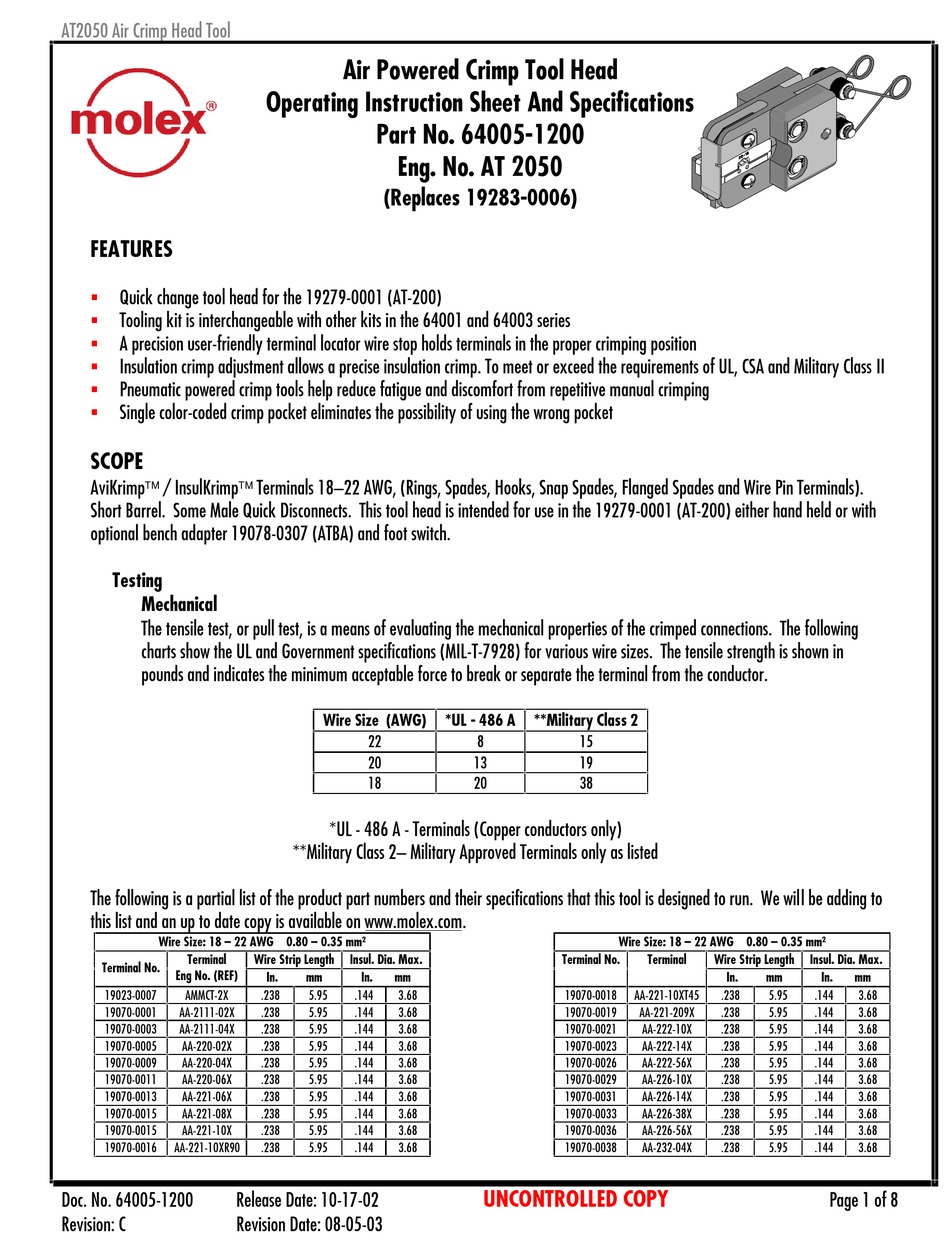

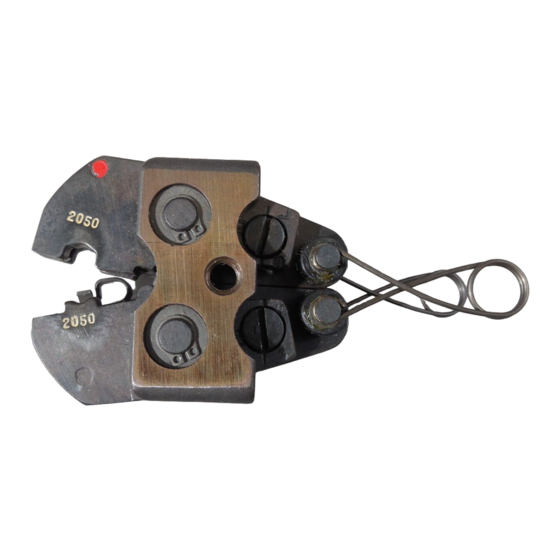

AT2050 Air Crimp Head Tool
FEATURES
Œ
Quick change tool head for the 19279-0001 (AT-200)
Œ
Tooling kit is interchangeable with other kits in the 64001 and 64003 series
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Œ
Insulation crimp adjustment allows a precise insulation crimp. To meet or exceed the requirements of UL, CSA and Military Class II
Œ
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping
Œ
Single color-coded crimp pocket eliminates the possibility of using the wrong pocket
SCOPE
AviKrimp / InsulKrimp Terminals 18–22 AWG, (Rings, Spades, Hooks, Snap Spades, Flanged Spades and Wire Pin Terminals).
Short Barrel. Some Male Quick Disconnects. This tool head is intended for use in the 19279-0001 (AT-200) either hand held or with
optional bench adapter 19078-0307 (ATBA) and foot switch.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections. The following
charts show the UL and Government specifications (MIL-T-7928) for various wire sizes. The tensile strength is shown in
pounds and indicates the minimum acceptable force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to
this list and an up to date copy is available on www.molex.com.
Wire Size: 18 – 22 AWG 0.80 – 0.35 mm²
Terminal
Terminal No.
Eng No. (REF)
19023-0007
AMMCT-2X
19070-0001
AA-2111-02X
19070-0003
AA-2111-04X
19070-0005
AA-220-02X
19070-0009
AA-220-04X
19070-0011
AA-220-06X
19070-0013
AA-221-06X
19070-0015
AA-221-08X
19070-0015
AA-221-10X
19070-0016
AA-221-10XR90
Doc. No. 64005-1200
Release Date: 10-17-02
Revision: C
Revision Date: 08-05-03
Air Powered Crimp Tool Head
Operating Instruction Sheet And Specifications
Part No. 64005-1200
Eng. No. AT 2050
(Replaces 19283-0006)
Wire Size (AWG)
22
20
18
*UL - 486 A - Terminals (Copper conductors only)
**Military Class 2– Military Approved Terminals only as listed
Wire Strip Length
Insul. Dia. Max.
In.
mm
In.
mm
.238
5.95
.144
3.68
.238
5.95
.144
3.68
.238
5.95
.144
3.68
.238
5.95
.144
3.68
.238
5.95
.144
3.68
.238
5.95
.144
3.68
.238
5.95
.144
3.68
.238
5.95
.144
3.68
.238
5.95
.144
3.68
.238
5.95
.144
3.68
*UL - 486 A
**Military Class 2
8
15
13
19
20
38
Wire Size: 18 – 22 AWG 0.80 – 0.35 mm²
Terminal No.
19070-0018
19070-0019
19070-0021
19070-0023
19070-0026
19070-0029
19070-0031
19070-0033
19070-0036
19070-0038
UNCONTROLLED COPY
Terminal
Wire Strip Length
Insul. Dia. Max.
In.
mm
AA-221-10XT45
.238
5.95
AA-221-209X
.238
5.95
AA-222-10X
.238
5.95
AA-222-14X
.238
5.95
AA-222-56X
.238
5.95
AA-226-10X
.238
5.95
AA-226-14X
.238
5.95
AA-226-38X
.238
5.95
AA-226-56X
.238
5.95
AA-232-04X
.238
5.95
In.
mm
.144
3.68
.144
3.68
.144
3.68
.144
3.68
.144
3.68
.144
3.68
.144
3.68
.144
3.68
.144
3.68
.144
3.68
Page 1 of 8
