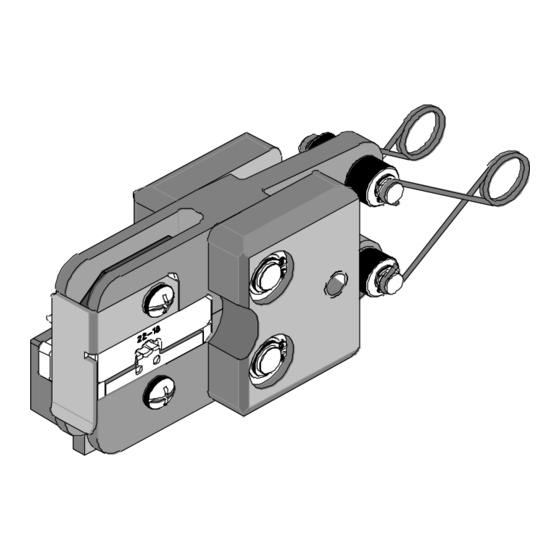

AT2100 Air Head Crimp Tool

FEATURES

Œ
Quick change tool head for the 19279-0001 (AT-200)
Œ
Tooling kit is interchangeable with other kits in the 64001 and 64003 series
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Œ
Insulation crimp adjustment allows a precise insulation crimp. To meet or exceed the requirements of UL, CSA and Military Class II
Œ
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping
Œ
Single color-coded crimp pocket eliminates the possibility of using the wrong pocket

SCOPE

AviKrimp /InsulKrimp Terminals 14-16 AWG, (Rings, Spades, Hooks, Splices, Snap Spades, Flanged Spades and Wire Pin
Terminals). Some Male Quick Disconnects and 3 to 4 Way Connectors. Also terminates ends of step down butt splices14-16 to
18-22 AWG. And Heavy Duty Terminals 16-20 AWG (Green color code). This tool head is intended for use in the 19279-0001 (AT-
200) either hand held or with optional bench adapter 19078-0307 (ATBA) and foot switch.
Testing
Mechanical
The tensile test or pull test is a means of evaluating the mechanical properties of the crimped connections. The following charts
show the UL and Government specifications (MIL-T-7928) for various wire sizes. The tensile strength is shown in pounds and
indicates the minimum acceptable force to break or separate terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to
this list and an up to date copy is available on www.molex.com.
Doc. No. 64005-1400
Release Date: 12/09/02
Revision: C
Revision Date:08-06-03

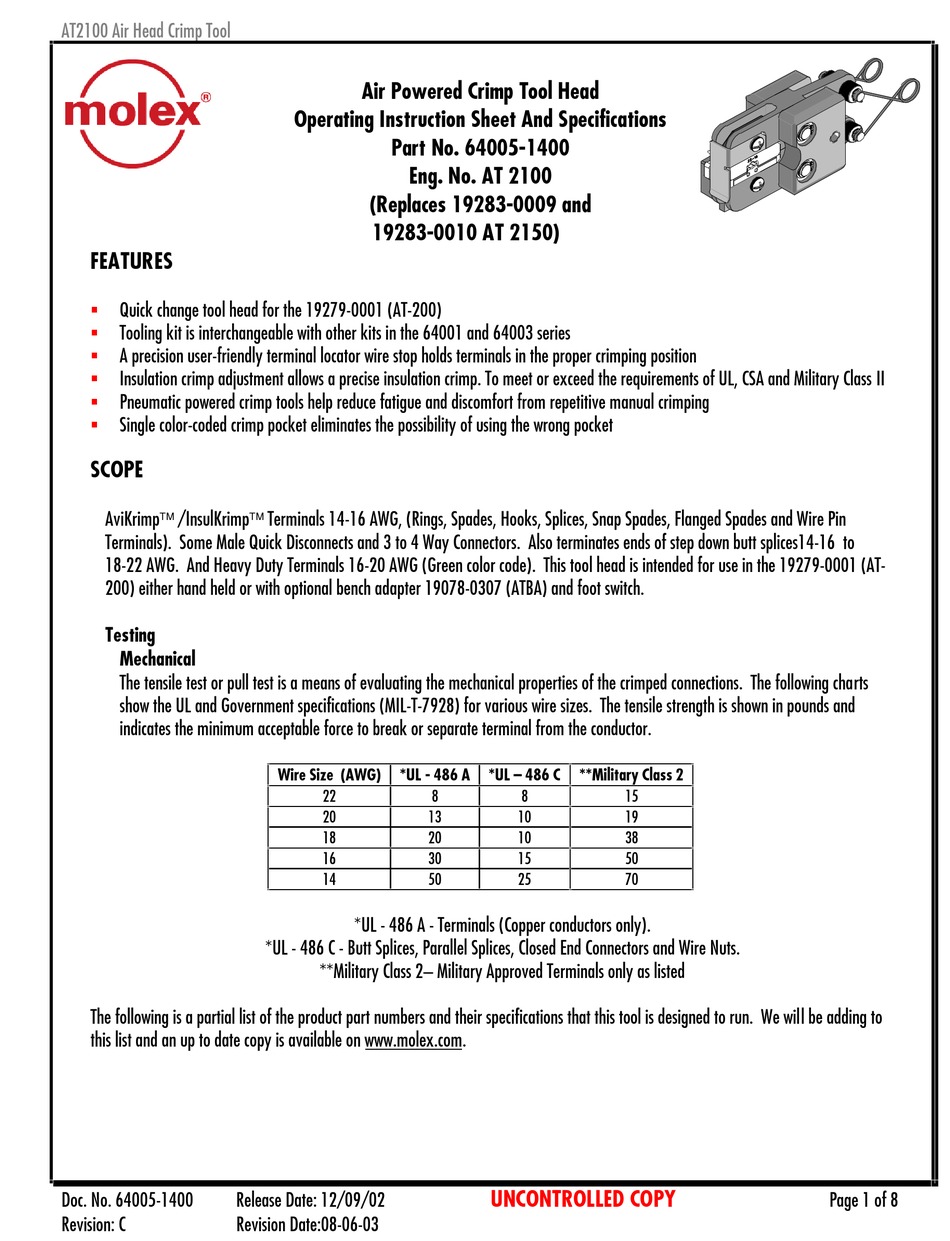

Air Powered Crimp Tool Head
Operating Instruction Sheet And Specifications
Part No. 64005-1400
Eng. No. AT 2100
(Replaces 19283-0009 and
19283-0010 AT 2150)
Wire Size (AWG)
*UL - 486 A
22
8
20
13
18
20
16
30
14
50
*UL - 486 A - Terminals (Copper conductors only).
*UL - 486 C - Butt Splices, Parallel Splices, Closed End Connectors and Wire Nuts.
**Military Class 2– Military Approved Terminals only as listed
*UL – 486 C
**Military Class 2
8
15
10
19
10
38
15
50
25
70
UNCONTROLLED COPY
Page 1 of 8
