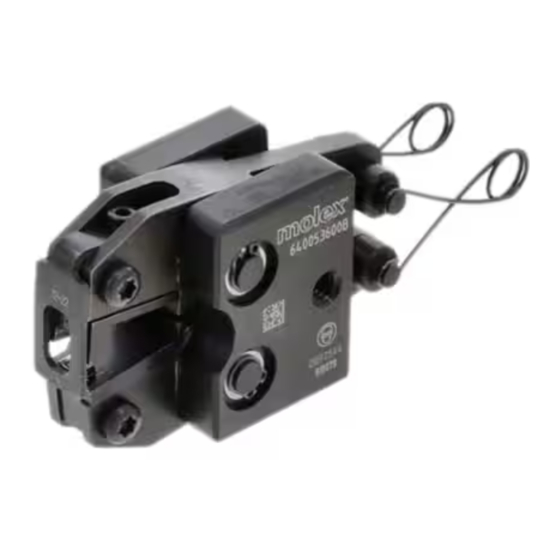

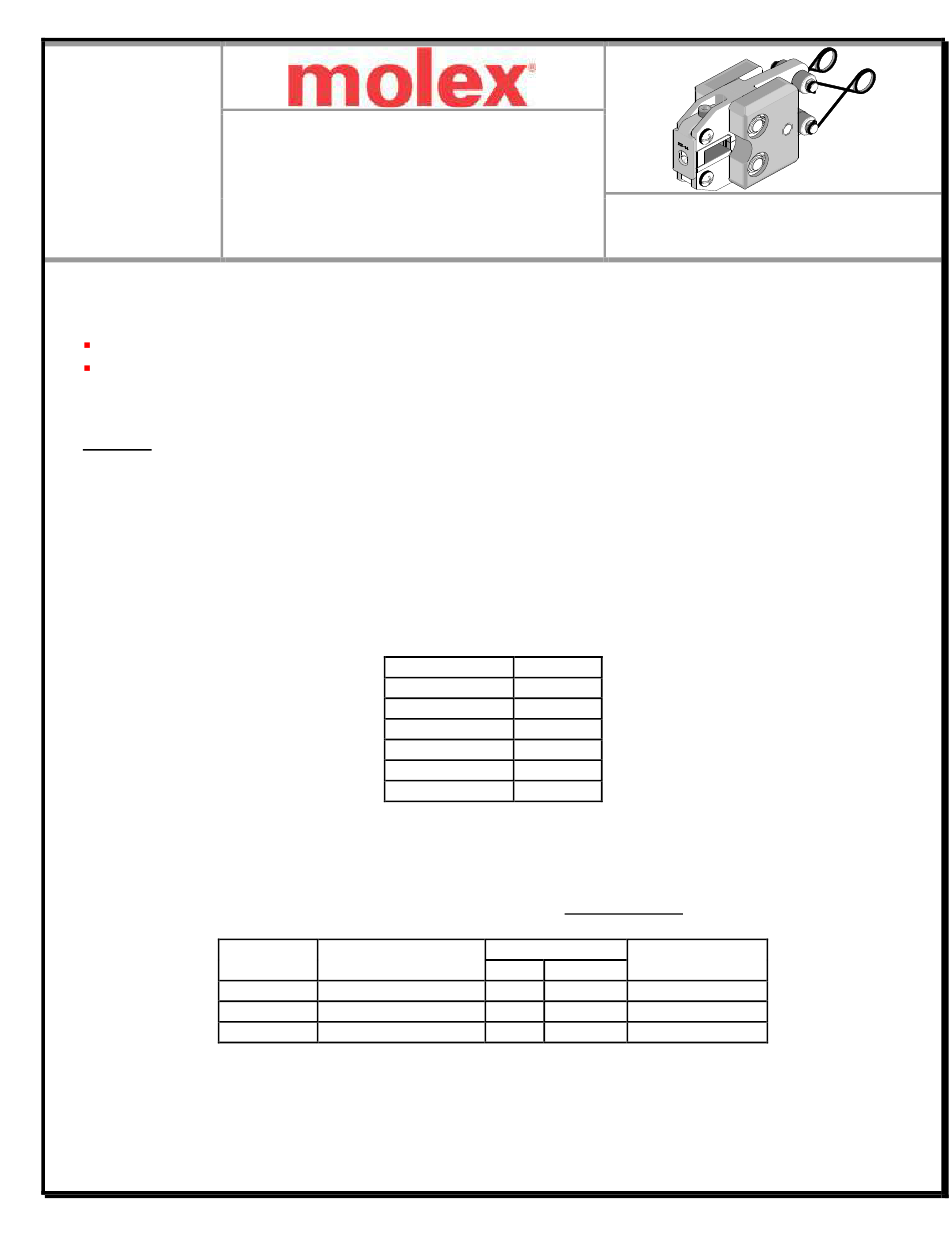

AT-2212 Air Crimp Tool Head
Air Powered
Crimp
Tool Head
FEATURES
Quick-change tool head for the 19279-0001 (AT-200)
A precision user-friendly terminal locator stop holds terminals in the proper crimping position
SCOPE
Products: Nylon closed end connectors 12–22 AWG. This tool head is intended for use in the 19279-0001 (AT-200)
either hand held or with optional bench adapter 19078-0307 (ATBA) and foot switch.
Testing
Mechanical
The tensile test or pull test is a means of evaluating the mechanical properties of the crimped connections. The
following charts show the UL specifications for various wire sizes. The tensile strength is shown in pounds and
indicates the minimum acceptable force to break or separate terminal from the conductor. On this style product,
only the reading from the smallest wire AWG is used. See Chart 1
The following is a partial list of the product part numbers and their specifications that this tool is designed to run.
We will be adding to this list and an up to date copy is available on www.molex.com.
Terminal No. Terminal Eng No. (REF)
19160-0009
19160-0010
19160-0011
Doc No: ATS-640053600
Revision: B
Application Tooling
Specification Sheet
Wire Size (AWG)
22
20
18
16
14
12
* UL – 486 C – Closed end connectors and Wire Nuts.
NC-2212
NC-2212-L
NC-2212-BA
Release Date: 06-24-03
Revision Date: 09-30-05
Engineering No. AT 2212
UL – 486 C
8
10
10
15
25
35
Wire Size
Wire Combinations
AWG
mm²
12 - 22 (3.30-0.35)
See Chart 1
12 - 22 (3.30-0.35)
See Chart 1
12 - 22 (3.30-0.35)
See Chart 1
UNCONTROLLED COPY
Order No. 64005-3600
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT 2212 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex AT 2212

Summary of Contents for molex AT 2212

  • Page 1 The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to this list and an up to date copy is available on www.molex.com. Wire Size Terminal No.

  • Page 2: Operation

    AT-2212 Air Crimp Tool Head OPERATION 3/8 “ Refer to the instruction manual for the 19279-0001 (AT200) for mounting this crimp tool head. Wire Preparation Pre-twisted wire not required for OEM applications. For Solid (OEM only) strip leads to 3/8 of an inch. Insert into connector and crimp.
  • Page 3 AT-2212 Air Crimp Tool Head Wire Combinations for Nylon Wire Combinations for Nylon Insulated Closed End Connectors Insulated Closed End Connectors Part No. 191600009 (NC-2212) Part No. 191600009 (NC-2212) Wire Gauge (AWG) Wire Gauge (AWG) Wire Type Rating Wire Type Rating 14 16 18 20 22 14 16 18 20 22...

  • Page 4: Maintenance

    4. Remove the crimped connector and inspect for proper crimp location and insulation closure. It may be required to rotate crimped connector 90° to remove from the tool. Molex offers a Crimp Inspection Handbook for closed barrel industrial product. See our website or contact your sales engineer.

  • Page 5: Tool Calibration

    Should such a defect occur, we would repair or exchange the tool free of charge. This repair or exchange will not be applicable to alter, misused or damaged tools. CAUTION: Molex crimp specifications are valid only when used with Molex terminals, applicators and tooling. UNCONTROLLED COPY...

  • Page 6: Parts List

    AT-2212 Air Crimp Tool Head PARTS LIST Item Order No Description Quantity 64005-3600 Crimp Tool Head Figure 5 64005-0120 Air Tool Head, Nose Mount 64001-3675 Locator Assembly 64001-3670 Tooling Kit Tooling Kit Only 64001-3601 Conductor Punch 64001-3602 Conductor Anvil #6-32 X 1/4” LONG SHCS Figure 5 UNCONTROLLED COPY...
  • Page 7 AT-2212 Air Crimp Tool Head Parts List (Continued) Item Order No. Description Quantity 64005-0120 Air Tool Head, Nose Mount Figure 6 64000-0077 Repair Kit (Springs, Rods Pivots, Rings, and Washers) #4-40 by 3 /8”Long SHCS M4 by 12LG. Freedrive Pan Head Screw 3/16”...

  • Page 8: Certificate Of Calibration

    Technician ______________ Date of Calibration ______________ Calibration should be done every 5,000 cycles or 3 months. Tools should be lubricated during this operation. Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-640053600 Release Date: 06-24-03 Page 8 of 8...
