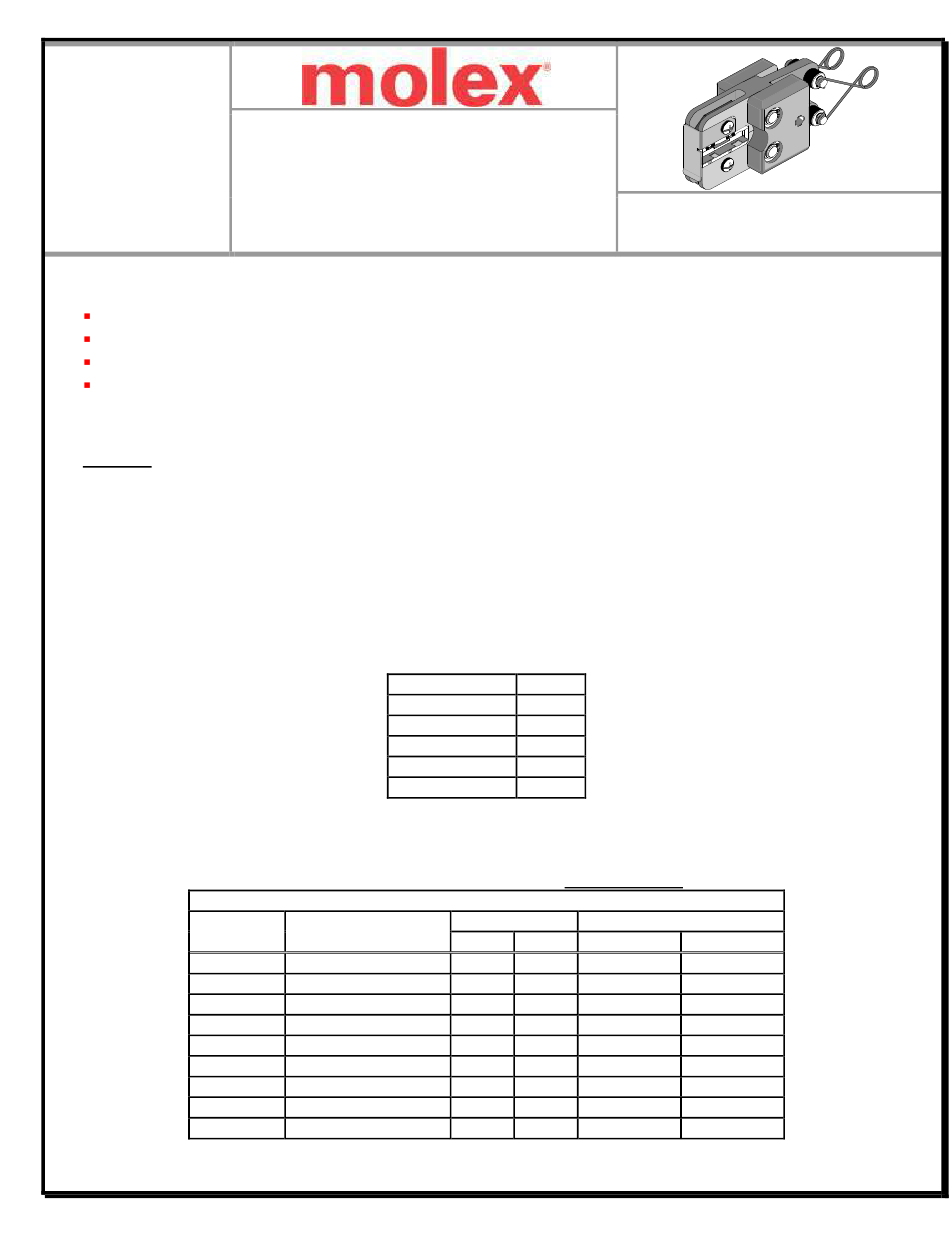

molex AT FIFG Specification Sheet

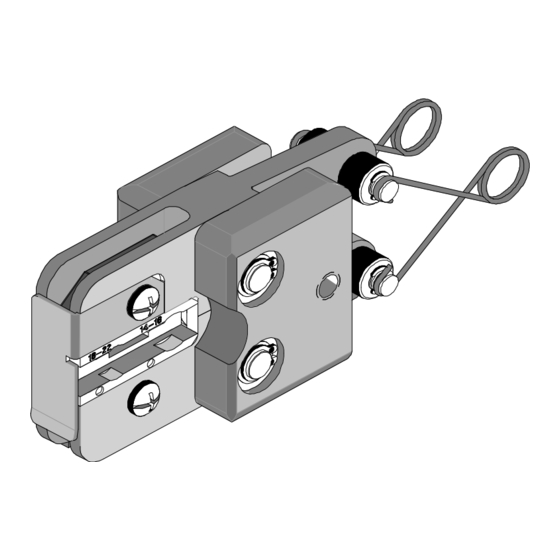

AT-FIFG Air Head Crimp Tool
Air Powered
Crimp Tool Head
InsulKrimp™

FEATURES

Quick-change tool head for the 19279-0001 (AT-200)
Tooling kit is interchangeable with other kits in the 64001 and 64003 Series
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping

SCOPE

Products: InsulKrimp™ Flag Quick Disconnects fully Insulated (Standard Flare) Terminals 14-22 AWG. This tool
head is intended for use in the 19279-0001 (AT-200) either hand held or with optional bench adapter 19078-0307
(ATBA) and foot switch.

Testing

Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections.
The following charts show the UL specifications for various wire sizes. The tensile strength is shown in
pounds and indicates the minimum acceptable force to break or separate the terminal from the conductor.
*UL – 310 – Quick Disconnects, Flags and Couplers
The following is a partial list of the product part numbers and their specifications that this tool is designed to run.
We will be adding to this list and an up to date copy is available on www.molex.com.
Terminal No. Terminal Eng No. (REF)
19007-0001
19007-0005
19007-0009
19007-0011
19007-0015
19007-0017
19007-0064
19007-0067
19007-0070
Doc No. ATS-640054100
Revision: C
Application Tooling
Specification Sheet
Wire Size (AWG)
22
20
18
16
14
Wire Size: 18 – 22 AWG 0.80 – 0.35mm²
Wire Strip Length Insulation Diameter Maximum
In.
AA-2220 .344
AA-2220X .344
AA-2222 .344
AA-2222X .344
AA-2223 .344
AA-2223X .344
AA-2220V .344
AA-2222V .344
AA-2223V .344
Release Date: 09-22-03
Revision Date: 04-12-12
Order No. 64005-4100
Engineering No. AT FIFG
*UL 310
8
13
20
30
50
mm In.
8.73 .176
8.73 .240
8.73 .176
8.73 .240
8.73 .176
8.73 .240
8.73 .176
8.73 .176
8.73 .176
UNCONTROLLED COPY
mm
4.47
6.10
4.47
6.10
4.47
6.10
4.47
4.47
4.47
Page 1 of 6
