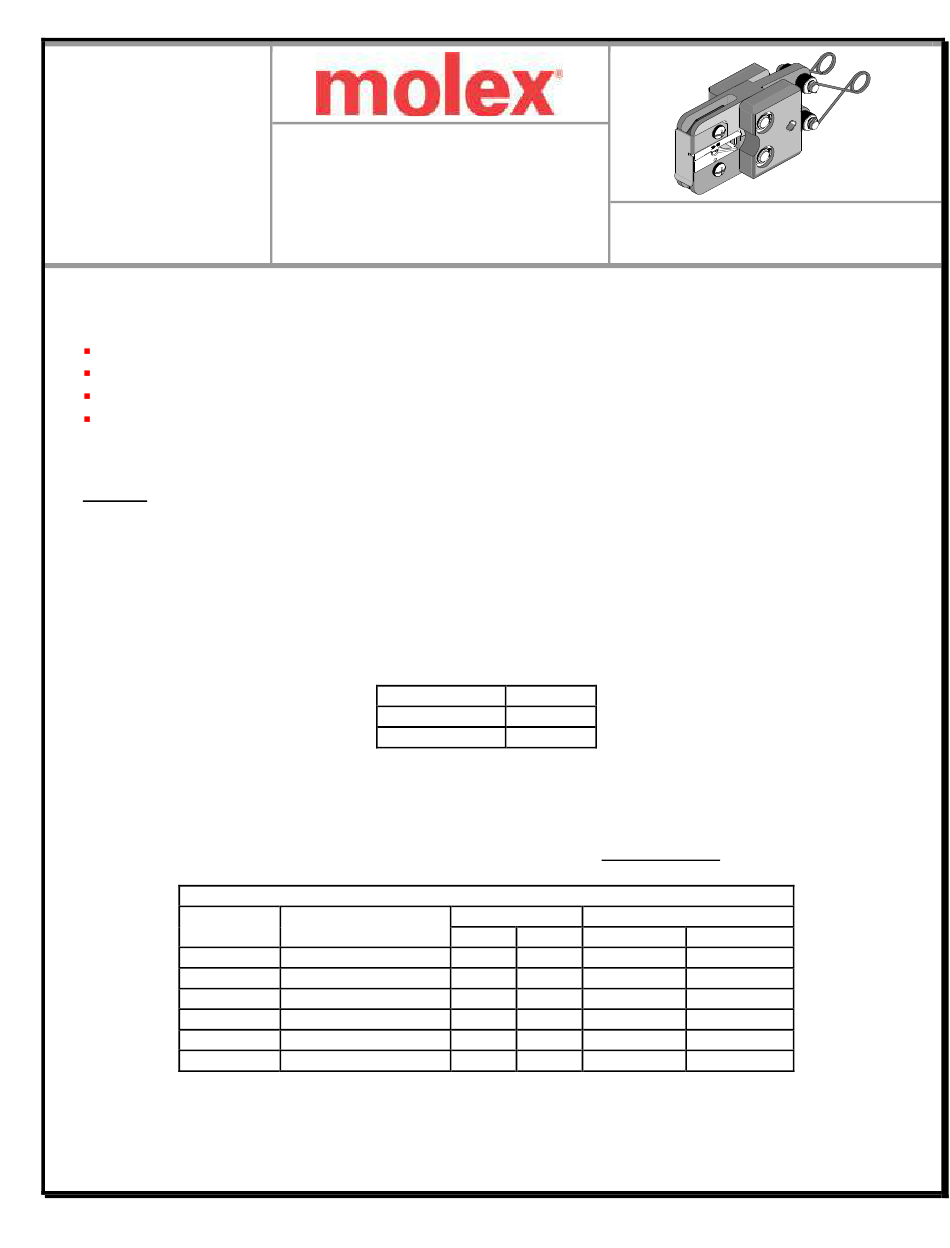

AT-1300 Air Head Crimp Tool
Air Powered
Crimp Tool Head
Krimptite
FEATURES
Quick-change tool head for the 19279-0001 (AT-200)
Tooling kit is interchangeable with other kits in the 64001 and 64003 Series
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping
SCOPE
Products: Krimptite™ Flag Ring and Spade Terminals, 14–16 AWG. This tool head is intended for use in the
19279-0001 (AT-200) either hand held or with optional bench adapter 19078-0307 (ATBA) and foot switch.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections.
The following charts show the UL specifications for various wire sizes. The tensile strength is shown in
pounds and indicates the minimum acceptable force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to
run. We will be adding to this list and an up to date copy is available on www.molex.com.
Terminal No.
19041-0007
19041-0009
19041-0012
19042-0004
19042-0006
19042-0008
Doc No. ATS-640070800
Revision: B
Application Tooling
Specification Sheet
Wire Size (AWG)
16
14
*UL - 486 A - Terminals (Copper conductors only)
Wire Size: 14 – 16 AWG 2.00 – 1.30mm²
Terminal Eng No. (REF)
B-143-06
B-143-08
B-143-10
B-148-06
B-148-08
B-148-10
Release Date: 07-22-03
Revision Date: 10-13-06
*UL - 486 A
30
50
Wire Strip Length
Insulation Diameter Maximum
In.
mm
In.
.266
6.75
N/A
.266
6.75
N/A
.266
6.75
N/A
.266
6.75
N/A
.266
6.75
N/A
.266
6.75
N/A
UNCONTROLLED COPY
Order No. 64007-0800
Engineering No. AT 1300
mm
N/A
N/A
N/A
N/A
N/A
N/A
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex AT-1300
Summary of Contents for molex AT-1300
- Page 1 The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to this list and an up to date copy is available on www.molex.com. Wire Size: 14 – 16 AWG 2.00 – 1.30mm²...
- Page 2 AT-1300 Air Head Crimp Tool Operation Refer to the instruction manual for the 19279-0001 (AT-200) for mounting this crimp tool head. Crimping Terminals 1. Slip the ring or spade of the flag terminal under the locator tab and center the LOCATOR terminal barrel into the conductor punch of the lower jaw.
- Page 3 30 days. Should such a defect occur, we would repair or exchange the tool free of charge. This repair or exchange will not be applicable to altered, misused or damaged tools. CAUTION: Molex crimp specifications are valid only when used with Molex terminals, applicators and tooling. UNCONTROLLED COPY Doc No.
- Page 4 AT-1300 Air Head Crimp Tool PARTS LIST Item Order No Description Quantity 64007-0800 Crimp Tool Head Figure 5 64005-0000 Basic Air Tool Head 64003-0875 Locator Assembly 64003-0870 Tooling Kit Tooling Kit Only 64003-0802 Conductor Anvil 64003-0801 Conductor Punch #4 40 X 1/8 LONG...
- Page 5 AT-1300 Air Head Crimp Tool Parts List (Continued) Item Order No. Description Quantity 64005-0000 Basic Air Tool Head Figure 6 64005-0103 Nose Guard 64000-0077 Repair Kit (Springs, Rods Pivots, Rings, and Washers) M4 by 12 Long Freedrive Pan Head Screw 3/16”...
- Page 6 AT-1300 Air Head Crimp Tool Air Powered Crimp Tool Head Krimptite Certificate of Calibration Order No. 64007-0800 Engineering No. AT 1300 Tool Order Number _______________ Tool Eng. Number ________________ Tool Revision ___________________ Serial Number __________________ Date of Manufacture ______________ Pin Gauge of Conductor Nest/Nests or Slug height if the nest is the “F”...
