    TAKO PANIC OPERATION MANUAL CONTENT 1、SPECIFICATION & TECHNICAL DATA....... 1 2、SPARE PART LIST..............2 3、TROUBLE SHOOTING............3 4、Play Instruction................4 4-1 Play Instruction ..............4 4-2 Instruction Menu ..............4 4-3 Control Signal and Menu............5 5、Part List..................6 5-1 Mechanism Part..............

  • Page 3: 1、Specification & Technical Data

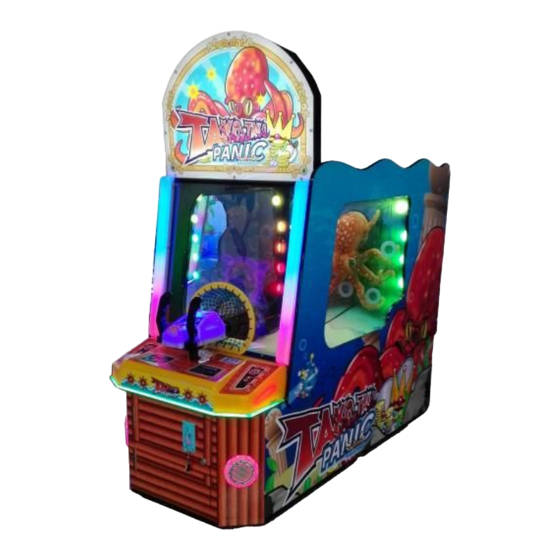

    TAKO PANIC OPERATION MANUAL 1. Specification & Technical Data Units：mm Voltage： AC 220V±10% 50Hz Consumption：mix 90W ～ max 140W Dimension：L1800×W800×H1883（mm） Weight ：about 184 kg Environment condition：Temperature(Indoor): -10℃～+40℃； Humidity：≤90%； Atmos：86Pa～106Pa。 Warning： Please wait for 1 min before start the machine after...

  • Page 4: 2、Spare Part List

    TAKO PANIC OPERATION MANUAL 2. Spare Part List Part List ： NAME Spec./Material UNIT Drawing REMARK Manual Ticket door、Coin AH57 door Repairing door AH78 Coin Door Fuse 6.3A Power 1.8M Cord Switch Yellow φ25mm ball Long Micro Switch Infra-red Friction...

  • Page 5: 3、Trouble Shooting

    TAKO PANIC OPERATION MANUAL 3、TROUBLE SHOOTING FAULT FAULT CAUSE TROUBLE SHOOTING Coin acceptor do not adjusted。 Adjust the coin acceptor。 Do not insert Has the fake coin。 Take out the fake coin。 coin Ticket dispenser no 12V input voltage. Check power supply output voltage or Drive signal of ticket dispenser or ticket wire.

  • Page 6: 4、Play Instruction

    TAKO PANIC OPERATION MANUAL 4、GAME INSTRUCTION 4-1 Game Instruction 1.Insert coin and start game. 2. Players shoot the aims and make the ball into hole can get corresponding score. 3. The much score you get the more prize you will get.

  • Page 7: Control Signal And Menu

    TAKO PANIC OPERATION MANUAL 4-3 Control Signal and Instruction 1. Find attached IO board sheet and drawing, in the main board drawing can see the wire connection for input and output. 2. DIP adjusting please find for IO sheet, capital letter is for factory setting, customer can adjust by yourself.

  • Page 8: 5、Part List

    TAKO PANIC OPERATION MANUAL 5、Parts Detail 5-1 Mechanism Overall Light box Gun mechanism Ball Feed Mechanism...
  • Page 9 TAKO PANIC OPERATION MANUAL Shooting Mechanism...
  • Page 10 TAKO PANIC OPERATION MANUAL NUMBER NAME SPEC./MATERIAL ZYTD38SRZ-R(55) Motor 24V3000RPM DZJG.02-52 Adjust board Stainless Side bearing F688 DZJG.02-53 Teeth board Stainless DZJG.04-31 Supporting pole White nylon DZJG.04-35 Ball wheel Silicone DZJG.04-23 Shooting motor base aluminum DZJG.02-49 Tube welding Q235 DZJG.04-30 Limit Gum DZJG.04-06...
  • Page 11 TAKO PANIC OPERATION MANUAL Ball Feed Mechanism NUMBER NAME SPEC. / MATERIAL DZJG.02-58 Ball Rod 201 Stainless DZJG.02-60 Connecting A Welding 201 Stainless DZJG.02-56 Ball side board A 201 Stainless Joint bearing M4 inner tooth Screw M4*50 outer tooth DZJG.04-20...
  • Page 12 TAKO PANIC OPERATION MANUAL Orbital mechanism NUMBER NAME SPEC./ MATERIAL octopus Plush Doll Lamp trap Silica gel Target lamp trap Clear PC Light trap back cover Black ABS Bias board Cold plate Bolt bearing Bias bearing Q235...
  • Page 13 TAKO PANIC OPERATION MANUAL Fixed axis Q235 Fixed block Q235 Card board Cold board Back shaft Q235 Chuck indle Q235 Bearing 6003 Fixed base Cold board Roller Q235 XLWide11MM Timing belt Long1750MM Bearing Alex Roller Aluminum Motor sleeve Aluminum 55ZY24-25-01...

  • Page 14: Coin Mech Part

    TAKO PANIC OPERATION MANUAL 5-2 Coin Part NUMBER NAME SPEC. / MATERIAL Ticket dispenser Key AH57 57 Long key Coin Acceptor Electronic LK100M Coin Box Steel Key AH78 78 Short key Counter frame Black plastic Six bit counter C-012 Sound adjuster...

  • Page 15: Speaker Part

    TAKO PANIC OPERATION MANUAL Speaker Part NUMBER NAME SPEC. / MATERIAL Round speaker 4 inches 8 Europe 15W White Arylic Arylic Speaker light board 12V RGB Speaker net Silver Fuse and Power Part NUMBER NAME SPEC. / MATERIAL Ground wire pole Power plug 6.3A...

  • Page 16: Electrical Installation Part

    TAKO PANIC OPERATION MANUAL 5-5 Electrical Installation Part...
  • Page 17 TAKO PANIC OPERATION MANUAL NAME SPEC. / MATERIAL UNIT 12V 150W Power supply 24V 150W Nixie tube SMG23101-3W.PCB Coin acceptor Electronic LK100M Score counter C-012 T4 Infrared plate 70T4.PCB 12V LED control board XXH-150703A Motor control board ZLDJ24.PCB V1.0 Main board SXKJ-2013.PCB VER1.0...

  • Page 18: Art Part

    TAKO PANIC OPERATION MANUAL 5-6 Art Part...
  • Page 19 TAKO PANIC OPERATION MANUAL NUMBER NAME SPEC. / MATERIAL Light box menu Slik Left side menu White sticker Right side menu White sticker Wheel menu PP surface glue Gun menu White sticker Front door White sticker Control panel menu White sticker...
  • Page 20 TAKO PANIC OPERATION MANUAL...
  • Page 21 TAKO PANIC OPERATION MANUAL NUMBER NAME SPEC. / MATERIAL Coin mouth White sticker Counter label White sticker Ticket dispenser recovery White sticker label Fork label White sticker Hands Off White sticker Repair label White sticker High voltage label White sticker...
  • Page 22 TAKO PANIC OPERATION MANUAL Fuse current label White sticker IO sheet...

  • Page 23: Electrical Part

    TAKO PANIC OPERATION MANUAL Electrical Part...
  • Page 24 TAKO PANIC OPERATION MANUAL NAME SPEC. / MATERIAL UNIT MX-S5050W 0.6m Light box LED strip MX-S5050W 0.4m Top LED light strip MX-S5050W 600mm Point light ADS-6012CW LED light board LED-10G.PCB V1.0 2811 symphony light WS2811B 1M/60 beads 700mm/12V strip Gun light strip...

  • Page 25: 6、 Io Board Sheet(Prize Out Version)

    TAKO PANIC OPERATION MANUAL 6、IO Board Sheet Main Board：SXKJ2013.V1.0.PCB Setting ITEM Value Coin（pc） Time （Second） Demo Music Mercy ticket Setting ITEM Value Score per ticket...
  • Page 26 TAKO PANIC OPERATION MANUAL Ticket off Target Score Free Play Score Memory Setting ITEM Value Fixed ticket LIMIT Setting ITEM Value INPUT： INPUT CONTENT INPUT CONTENT INPUT CONTENT J1-1 (1) J1-6 (6) J1-11（11） Coin Signal Target score 6 Figure front...
  • Page 27 TAKO PANIC OPERATION MANUAL J1-5 (5) J1-10（10） J1-15（15） Send ball switch Target score 5 OUTPUT： OUTPUT CONTENT OUTPUT CONTENT OUTPUT CONTENT Control panel spot J2-1 (1) J3-5（11） J4-8（21） Coin counter Target score light 4 light 5 Control panel spot J2-2 (2) J3-6（12）...
  • Page 28 TAKO PANIC OPERATION MANUAL Then press the service button into the IO port test status: This IO port chasing light output, digital tube display 4444, while playing the music. Again press the service button, enter the music test, while playing music in the fifth paragraph, digital tube LED<1>1,2 display: a music test project code and other digital tube display 5555.
